Specification
Brand : Focal
BulletPoint1 : RCA input can use a BTL source or common ground source. RCA switch select balanced floating ground or grounded to minimize noise.
BulletPoint2 : Each input has a peak limiter to prevent severe distortion and speaker damage. It allows light clipping.
BulletPoint3 : Each channel has variable high pass crossover: 50 Hz to 4000 Hz, 12 dB Linkwitz-Riley
BulletPoint4 : Each channel has variable low pass crossover: 50 Hz to 4000 Hz, 12 dB Linkwitz-Riley
BulletPoint5 : Each channel has variable band pass crossover: 50 Hz to 4000 Hz, 12 dB Linkwitz-Riley
Color : Silver
ExternallyAssignedProductIdentifier1 : 879545001786
ExternallyAssignedProductIdentifier2 : 0879545001786

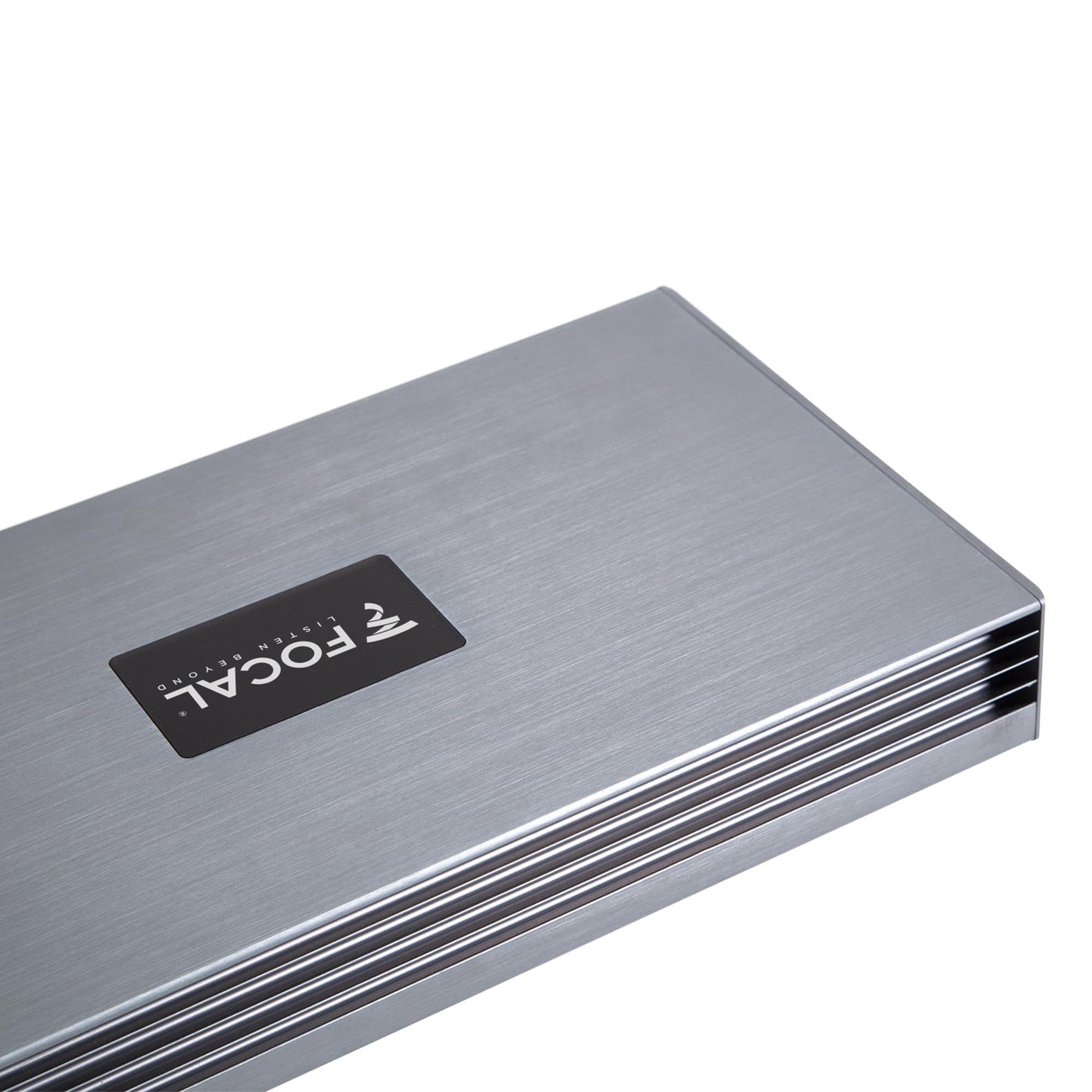

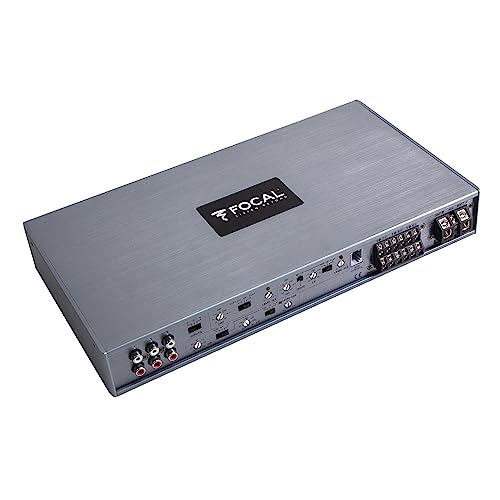

ItemName : Focal FDP6.900V2 Full Range Class D 6-Channel Amplifier
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 14.38 inches
ItemPackageDimensions_Width : 7.75 inches
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-multi-channel-amplifiers
Manufacturer : Focal
MaximumSupplyVoltage : 14 volts_of_direct_current
MinimumSupplyVoltage : 8 volts
ModelName : FDP6.900V2
ModelNumber : FDP6.900V2
MountingType : Surface Mount
NumberOfChannels : 6
NumberOfItems : 1
OutputPower : 200 watts
PackageTypeName : box
PartNumber : FDP6.900V2
ProductDescription : FEATURES:
Very small size for power output
Can be used in 3, 4, 5 & 6 channel modes
High-level input, compatible with OEM Stereo
Easily accessible settings
Remote sub control
Invisible mounting bracket
Highest level of crossover flexibility

DETAILS: RCA input can use a BTL source or common ground source. RCA switch select balanced floating ground or grounded to minimize noise.
Each input has a peak limiter to prevent severe distortion and speaker damage. It allows light clipping.
Each channel has variable high pass crossover: 50 Hz to 4000 Hz, 12 dB Linkwitz-Riley
Each channel has variable low pass crossover: 50 Hz to 4000 Hz, 12 dB Linkwitz-Riley
Each channel has variable band pass crossover: 50 Hz to 4000 Hz, 12 dB Linkwitz-Riley
Channels 5, 6 in bridged subwoofer mode , 24 dB Linkwitz-Riley Subwoofer remote volume control includes a clipping indicator light. Recommended DC voltage operating range 11.5 to 14.4 volts. Minimum DC voltage operating range 8 to 16 volts.
Install an 80 AMP fuse at the battery.

SPECIFICATIONS:
Power:
6x150wRMS into 4ohms @ 1%THD
6x200wRMS into 2 ohms @ 1%THD
4x150wRMS into 4 ohms + 1x500wRMS into 4ohms (Ch5+6Bridged) @1%THD
4x200wRMS into 2 ohms + 1x500wRMS into 4ohms (Ch5+6Bridged) @1%THD
Do NOT bridge into 2 ohms.
All power ratings are at 14.4v DC.

Frequency response: 5Hz–25kHz
Signal/noise ratio: 90dB
Input Sensitivity: 200mV + 10V
Slew Rate: 13 V/ uS
Protections: Short-circuit, thermal overload, polarity reversal, DC
ProductSiteLaunchDate : 2022-06-24T12:58:04.807Z
SpecificationMet : Oem
UnitCount : 1
UnspscCode : 52161547
Voltage : 14.4 volts_of_direct_current
WarrantyDescription : 1 YEAR, Manufacturer
