Specification
Brand : YDuupxe
BulletPoint1 : [MULTIFUNCTIONAL DEVICE] This 3 in 1 tool combines a digital oscilloscope, an electronic component tester, and a PWM generator, offering versatility and convenience for testing various circuit components.
BulletPoint2 : [ADVANCED FEATURES] The oscilloscope mode allows you to test waveforms, while the Mos Test mode can identify different transistors, measure capacitance, , inductance, and more. It also supports online work for firmware upgrades.
BulletPoint3 : [HIGH PERFORMANCE] With a real-time sampling rate of 48MSa/s and a 10MHz bandwidth, this device can measure voltage up to 400V. The built-in generator features 13 waveforms with a frequency output of 0-50KHz and 0.1V-3.0V amplitude.
BulletPoint4 : [USER-FRIENDLY DESIGN] Equipped with a 1500mAh battery, this oscilloscope can run for up to 4 hours and has a 2.8-inch high-resolution screen with adjustable backlight. The compact and lightweight design makes it easy to carry and operate.
BulletPoint5 : [PRACTICALITY] Suitable for both professionals and DIY enthusiasts, this handheld oscilloscope offers multiple test functions, a key design for easy operation, and a variety of features for a seamless testing experience.
Color : #511
IncludedComponents : no

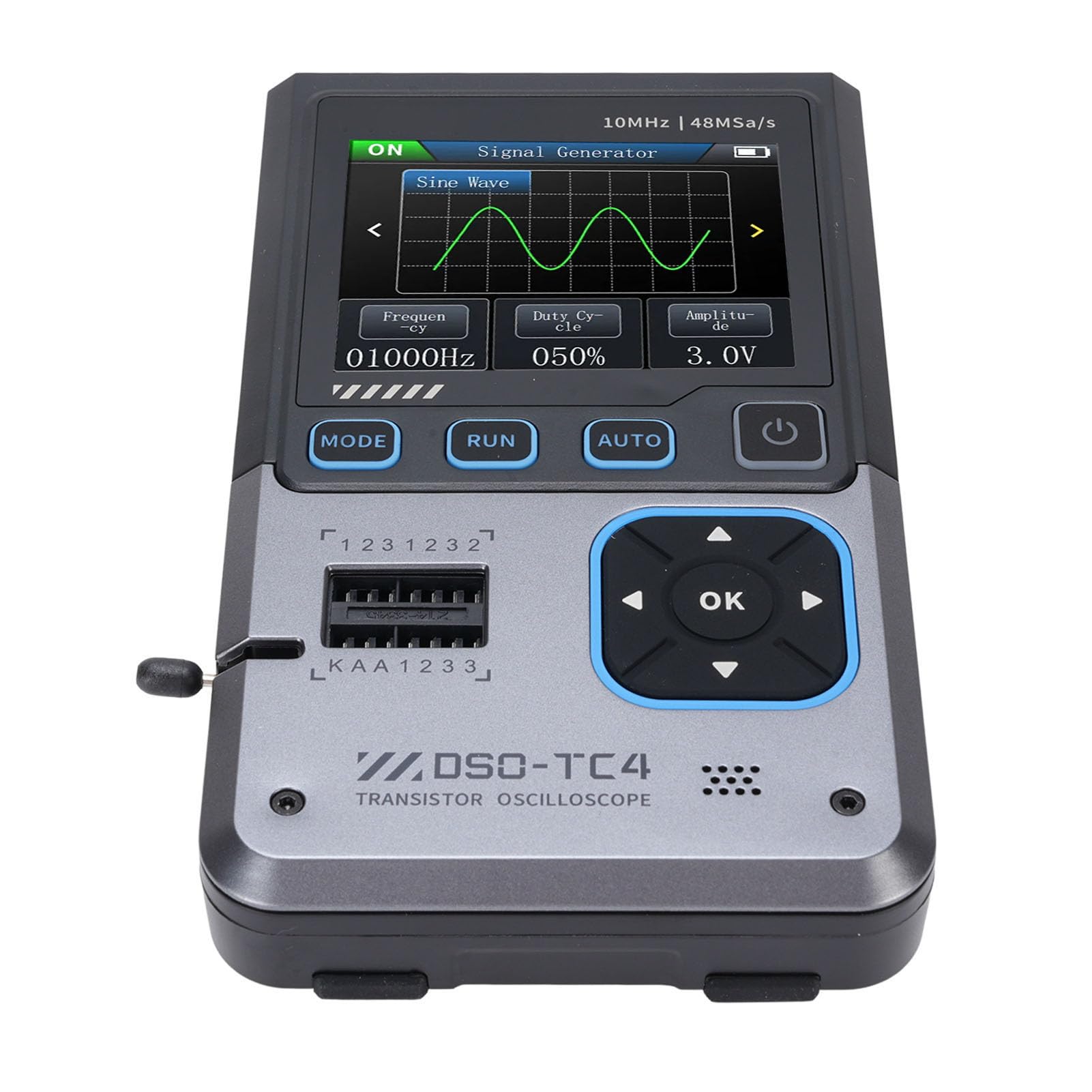

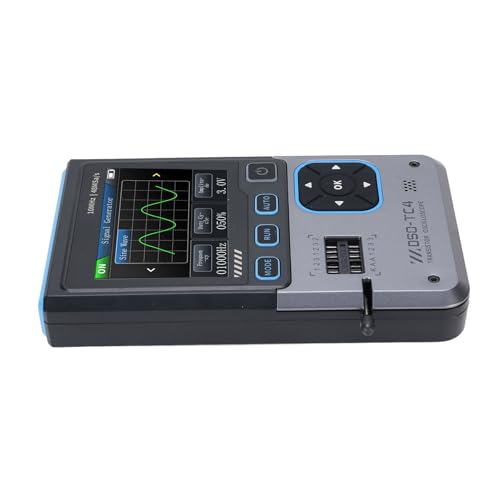

ItemName : 3 in 1 Device Digital Oscilloscope Transistor Tester Generator Portable Handheld Oscilloscope with Multimeter Meter Tester Digital Voltage Capacitor Multi Volt Ohm Automotive
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : Multimeters
Manufacturer : YDuupxe
MeasurementAccuracy : 0.1mm
ModelNumber : YDuupxetcq79xi3rg
NumberOfItems : 1
PartNumber : YDuupxetcq79xi3rg
ProductDescription : 1. 3 in 1 Device: This device combines the functions of a digital oscilloscope, an electronic component tester, and a PWM signal generator. Oscilloscope mode can test the signal waveform of the circuit; Mos Test mode can test various types of transistors, identifying type, pin polarity, hFE, on voltage, capacitance, resistive value, inductance components, etc. The signal generator mode can use sine, square, pulse, triangular or oblique waves
2. Working Parameters: The oscilloscope has a real time sampling rate of 48MSa/s and a bandwidth of 10MHz, which can measure voltage signals up to 400V. Signal generator has built in 13 basic waveforms, sine wave frequency output 0-50KHz 0.1V-3.0V , vertical sensitivity of 10mV div-10V div, horizontal time base range of 50ns-20s, more waveform data can be obtained per unit time, so as to make the waveform more accurate
3. Battery and Screen: Built in 1500mAh battery, will be fully charged in 1-2 hours by using 5V 2A interface, can work for 4 hours (green light when completed, red light when charging); The digital oscilloscope and transistor tester feature a high resolution 2.8 inch screen with adjustable backlight for a better reading experience
4. Portable and Practical: The handheld oscilloscope can test different functions, support multi interface screen display, adopt key design, more convenient to operate, choose different test function mode; The compact and lightweight design provides variety and convenience for the user
5. Multiple Functions: The digital oscilloscope support computer online work, users can refresh the official firmware, complete the upgrade, especially suitable for the rapid pairing of transistors, mixed surfaces mount and no word component recognition, small batch component preliminary screening; It can automatically identify and measure a variety of transistors, including NPN and PNP transistors, diodes, double diodes, etc

Spec:
Item Type: 3 in 1 Oscilloscope
Screen: 2.8 Inch Color Screen with LED Backlight
Power Voltage: 1 x 803450 1500mAh Li Battery (built in)
Charging Specification: USB Type C
Stand Specification: Foldable Integrated Stand
Digital Oscilloscope Mode Parameters:
Real Time Sampling Rate: 48MSa/s
Analog Bandwidth: 10MHz
Input Impedance: 1MΩ
Coupling Mode: AC DC
Testing Voltage Range: 1:1 Probe: 80Vpp (+40V); 10:1 Probe: 800Vpp (+400V)
Vertical Sensitivity: 10mV/div-10V/div (x1 range)
Horizontal Time Base Range: 50ns-20s
Actuator Mode: Auto, Normal, Single
Actuator Type: Rising Edges, Falling Edges
Waveform Freeze: Yes (HOLD Function)
Automatic Measurement: Maximum, Minimum, Average, RMS, Vpp, Frequency, Period, Duty Cycle
Component Test Mode Parameters:
Category Range Description
Triode Magnification hfe, base emitter voltage Ube, lc/le, collector-emitter reverse cut-off current lceo, lces, protective diode forward voltage drop Uf
Diode Forward Voltage Drop Forward voltage drop, junction capacitance, reverse leakage current
Voltage Regulator Diode 0.01-4.5V (1-2-3 Test area) Forward pressure drop
Field Effect Tube JFET Gate capacitor Cg, drain current ld under Vgs, protecting diode forward voltage drop Uf
IGBT Drain current ld under Vgs, protecting diode forward voltage drop Uf
MIOSTET Open voltage Vt, gate capacitor Cg, drain source resistor Rds, protecting diode forward voltage drop Uf
Unidirectional Thyristor Open Voltage Gate Voltage
Bidirectional Thyristor Actuator Current
Capacitance 25pF-1000uF Capacitance Value, Loss Factor Vloss
Resistor 0.01-50MΩ Resistive Value
Inductance 10uH-1000uH Inductance Value, DC Resistive Value
Temperature Sensor Pins: GND, DQ, VDD
Temperature and Humidity Sensor Pins: VDD, DATA, GND Signal Generator Parameters:
Output Waveform: Support 13 Waveform Output
Waveform Frequency: 0-50KHz
Square Wave Duty Cycle: 0-
Waveform Amplitude: 0.1V to 3.0V

How to Use:
Open the packaging and take out the product for immediate use.

packing list:
1 x Main Unit
1 x USB Cable
3 x Test Hook Cables
1 x Ordinary Probe
2 x Crocodile Clamp/Holder Test Cables
1 x P6100 High Voltage Probe
1 x P6100 High Voltage Probe Accessory
10 x Accessories
1 x User Manual
