Product Information
Editorial Review
The Fluke 113 True-RMS Utility Multimeter is a digital multimeter (also known as a multitester) that measures AC/DC voltage to 600V, resistance to 60 kiloohms, and capacitance to 9,999 microfarads. The meter has a diode check for testing general-purpose germanium, silicon, and power diodes, and a continuity beeper which provides audible detection of resistance by turning on at less than 25 ohms and off at 250 ohms. It is also able to simultaneously check for voltage and continuity. This true RMS meter provides accurate readings when measuring linear or nonlinear loads where the current or voltage has a sinusoidal or nonsinusoidal waveform and has both manual- and auto-ranging capabilities for user flexibility. A Max/Min function records signal fluctuations and a hold function freezes measurements on the display. The 6000-count resolution, 3-1/2 digit digital display is backlit for readability in low-light conditions. The meter is safety rated for Category III to 600V and Category IV to 300V. It uses a 9V battery (installed) with a battery life of approximately 300 hours without backlight and has a sleep mode to maximize battery life. The meter measures 6.58 x 3.35 x 1.81 inches (H x W x D) and weighs 13 oz./404 g. (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.) This meter includes a holster with built-in probe holders for convenient storage. Multimeters are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multimeters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multimeters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltage. Safety ratings are based on International Electrotechnical Commission (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.Fluke Corporation manufactures electrical testing tools and software for industrial and commercial applications. The company, founded in 1948, is headquartered in Everett, WA.What's in the Box?Fluke 113 utility multimeterTest leads9V batteryInstructions
Features
1) Digital multimeter measures AC/DC voltage, resistance, and capacitance and performs continuity and diode tests
2) True RMS meter provides accurate readings when measuring linear or nonlinear loads where the current or voltage has a sinusoidal or nonsinusoidal waveform
3) Simultaneously checks for voltage and continuity
4) Manual- and auto-ranging modes for user flexibility
5) Safety rated for Category III to 600V and Category IV to 300V
Specification
Binding : Misc.
Brand : Fluke
Color : Yellow
Department : unisex-adult
EAN : 5053184523792
Label : Fluke Corporation
Manufacturer : Fluke Corporation
Model : Fluke-113
PackageDimensions_Weight : 172.00 hundredths pounds
PackageDimensions : L:10.94 X W:5.67 X H:1.97
ProductGroup : BISS Basic
ProductTypeName : TOOLS
Publisher : Fluke Corporation
SKU : Fluke-113
Studio : Fluke Corporation

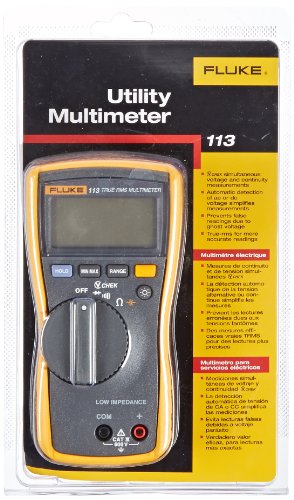

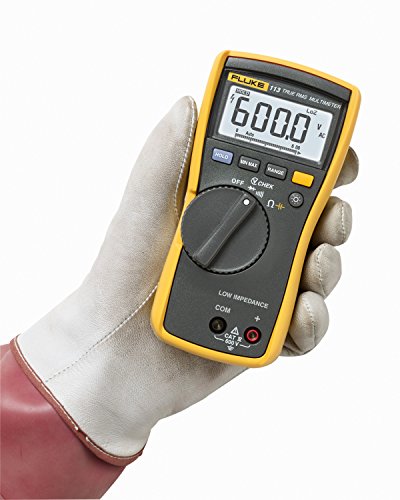

Title : Fluke 113 True-RMS Utility Multimeter
The Fluke 113 True-RMS Utility Multimeter is a digital multimeter (also known as a multitester) that measures AC/DC voltage to 600V, resistance to 60 kiloohms, and capacitance to 9,999 microfarads. The meter has a diode check for testing general-purpose germanium, silicon, and power diodes, and a continuity beeper which provides audible detection of resistance by turning on at less than 25 ohms and off at 250 ohms. It is also able to simultaneously check for voltage and continuity. This true RMS meter provides accurate readings when measuring linear or nonlinear loads where the current or voltage has a sinusoidal or nonsinusoidal waveform and has both manual- and auto-ranging capabilities for user flexibility. A Max/Min function records signal fluctuations and a hold function freezes measurements on the display. The 6000-count resolution, 3-1/2 digit digital display is backlit for readability in low-light conditions. The meter is safety rated for Category III to 600V and Category IV to 300V. It uses a 9V battery (installed) with a battery life of approximately 300 hours without backlight and has a sleep mode to maximize battery life. The meter measures 6.58 x 3.35 x 1.81 inches (H x W x D) and weighs 13 oz./404 g. (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.) This meter includes a holster with built-in probe holders for convenient storage. Multimeters are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multimeters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multimeters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltage. Safety ratings are based on International Electrotechnical Commission (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.Fluke Corporation manufactures electrical testing tools and software for industrial and commercial applications. The company, founded in 1948, is headquartered in Everett, WA.What's in the Box?Fluke 113 utility multimeterTest leads9V batteryInstructions
