Specification
Brand : Hztyyier
BulletPoint1 : [ACCURATE READINGS] measure voltage, KWh, wattage, and current for reliable monitoring.
BulletPoint2 : [WIDE COMPATIBILITY] Works effectively under AC 80-260V with a maximum current of 100A.
BulletPoint3 : [INTUITIVE DESIGN] Quickly grasp detected parameters and informed decisions.
BulletPoint4 : [VERSATILE USAGE] Ideal for power distribution control equipment.
BulletPoint5 : [ENHANCED VISIBILITY] Backlit display ensures easy viewing in any lighting condition.
Color : #100
IncludedComponents : no

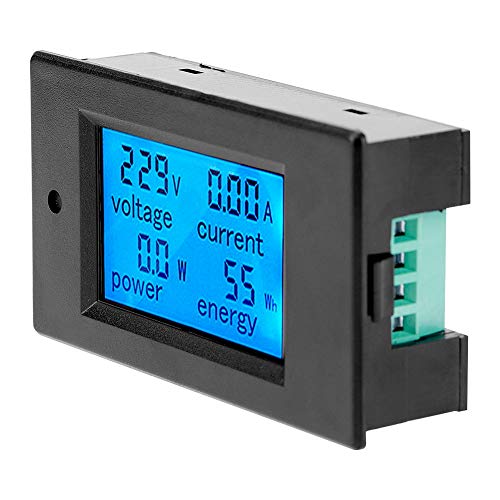

ItemName : Hztyyier AC Digital Power Meter Monitoring Tool 100A for Power Distribution Control Equipment LCD Display
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 11 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemTypeKeyword : Multimeters
Manufacturer : Hztyyier
MeasurementAccuracy : 0.1mm
NumberOfItems : 1
PartNumber : Hztyyiersh7gq93epy
PowerSourceType : Ac/Dc
ProductDescription : 1. The digital power meter monitor on the large screen of this power monitor can measure, monitor and display electrical parameter readings.
2. This digital power meter monitor could work well under AC 80‑260 V, and do not the maximal current be more than 100 A .
3. The power monitor also has a power alarm threshold preset function, which you can set by yourself.
4. When the measuring voltage more than watt alarm threshold, the backlight of the digital power meter monitor will flash.
5. The large screen of this power monitor can facilitate you to watch the detected parameters and judgments.

Specification:
Specification:
The working voltage: 80-260VAC
Test voltage: 80-260VAC
power: 100A/22000W
Working frequency: 45-65Hz
The measurement : Class 1
About Function:
- Measurement and monitor the electrical parameters(voltage, current, kwh, watt)
- Overload alarm function(more than watt alarm threshold, backlight flashing)
- Power alarm threshold preset function(can set up their own power alarm threshold)
- Power(kwh)button reset function
- When power off ,store the data, when on ,continue the date
- Large screen LCD liquid crystal screen full display function(voltage, current ,kwh,watt)
- Backlight function
About Display:
Display interface. By the large screen LCD display LCD monitor voltage and current,kwh,watt,electric parameters
1. Watt: the measurement range of 0-22kW
less than 1kW: 0.0-.9W
less than 10kW: 1000-9999W
less than 22kW: 10.0-22.0kW
2. kwh: the measurement range of 0-9999kwh
less than 10kWh:0-9999Wh
more than 10kWh:10-9999kwh
3. The test voltage range of 80-260V
Display format 80-220V
4. Current test range:0-100A
Display format: 0.00-99.99A
About Button:
- Backlight control
can turn on/off backlight by short press
- Power reset
Step 1: long press the button (about 5 seconds),til display flicker, then release the button
Step 2:if short time press the button again, the power(kwh)reset zero and exit flicker
Step 3:if long time press button for 5 seconds until it is no longer flicker, power(kwh)data is not cleared and exit
- Set the alarm(watt)
Step 1: long press the button, till the LCD screen display "SET CLr",release the button
Step 2: show the alarm (watt)value,short time press, value (number)increase
don't press the button for 3 seconds, the setting switch to other bit
Step 3: long time press the button(about 5 seconds)---->save the threshold watt value
threshold setting watt range:0-22.0kW
Notices:
1. Suitable for indoor ,not outdoor
2. Should not exceed te rated power
3. Wiring can not be wrong
4. The tape' color of the CT will be random

Package Includes:
1 x AC 100A Power Meters Monitor Volt Amp kWh Watt Digital Cambo Meter with Box/Cover
1 x CT
ProductSiteLaunchDate : 2025-05-06T13:45:14.855Z
Size : 200A
Style : Common
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
