Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : PEAKMETER
BulletPoint1 : ■PM8225 series is a 600V AC DC with Flash Light NCV, 4000 counts Continuity digital multimeter
BulletPoint2 : ■Black Light and Flash Light, Continuity and NCV test, Auto power off, Low Battery Indication
BulletPoint3 : ■Large-screen digital display and the function of analog bar indication, backlight function
BulletPoint4 : ■Multi-function measurement such as NCV, AC and DC voltage measurement
BulletPoint5 : ■The Digital Multimeter Safety Rating EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V
Color : Orange
ExternallyAssignedProductIdentifier : 7401811174721
Hazmat1 : LITHIUM ION BATTERIES PACKED WITH EQUIPMENT
Hazmat10 : DE_SmallLithiumIonBatteryWithEquipment
Hazmat11 : EG_SmallLithiumIonBatteryWithEquipment
Hazmat12 : ES_SmallLithiumIonBatteryWithEquipment
Hazmat13 : FR_SmallLithiumIonBatteryWithEquipment
Hazmat14 : GB_SmallLithiumIonBatteryWithEquipment
Hazmat15 : IN_SmallLithiumIonBatteryWithEquipment
Hazmat16 : IT_SmallLithiumIonBatteryWithEquipment
Hazmat17 : JP_SmallLithiumIonBatteryWithEquipment
Hazmat18 : MX_SmallLithiumIonBatteryWithEquipment
Hazmat19 : NL_SmallLithiumIonBatteryWithEquipment
Hazmat2 : UN3481
Hazmat20 : PL_SmallLithiumIonBatteryWithEquipment
Hazmat21 : SA_SmallLithiumIonBatteryWithEquipment
Hazmat22 : SE_SmallLithiumIonBatteryWithEquipment
Hazmat23 : SG_SmallLithiumIonBatteryWithEquipment
Hazmat24 : TR_SmallLithiumIonBatteryWithEquipment
Hazmat25 : US_SmallLithiumIonBatteryWithEquipment
Hazmat26 : ZA_SmallLithiumIonBatteryWithEquipment
Hazmat27 : 9
Hazmat3 : II
Hazmat4 : AE_SmallLithiumIonBatteryWithEquipment
Hazmat5 : AU_SmallLithiumIonBatteryWithEquipment
Hazmat6 : BE_SmallLithiumIonBatteryWithEquipment
Hazmat7 : BR_SmallLithiumIonBatteryWithEquipment
Hazmat8 : CA_SmallLithiumIonBatteryWithEquipment
Hazmat9 : CN_SmallLithiumIonBatteryWithEquipment
IncludedComponents : EC-PM8225D
ItemName : PEAKMETER PM8225 PM8225B/C/D Digital Multimeter Ampmeter Voltmeter AC DC Current Multimetro Digital Multi Meter NCV Test Multi-Tester for Electricians(PM8225D)
ItemPackageDimensions_Height : 120 millimeters
ItemPackageDimensions_Length : 160 millimeters
ItemPackageDimensions_Width : 200 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : multi-testers
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : PEAKMETER
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : +-0.1%
ModelNumber : EC-PM8225D
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : EC-PM8225D
PowerSourceType : Battery Powered
ProductDescription : PEAKMETER PM8225 PM8225B/C/D Digital Multimeter Ampmeter Voltmeter AC DC Current Multimetro Digital Multi meter NCV Test Multi-Tester For Electricians(PM8225D)
6000 counts digital and analog bar indication
VFD/REL/MAX/MIN/NCV/Live line detection
Temperature measurement
AC/DC Voltage/Current
Automatic shutdown about 10 minutes
Specification Range Accuracy
AC Voltage 60mV/600mV/6V/60V/600V ±(0.8%+3)
DC Voltage 60mV/600mV/6V/60V/600V ±(0.5%+3)
AC Current 600uA ±(1.0%+5)
600mA ±(1.2%+3)
6A/10A ±(1.5%+3)
DC Current 600uA/6mA/60mA ±(0.8%+3)
600mA ±(1.0%+3)
6A/10A ±(1.2%+3)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(1.2%+5)
60MΩ ±(2.0%+5)
Capacitance 10nF/100nF/1uF/10uF/100uF ±(3.0%+5)
1mF/10mF ±(4.0%+5)
100mF ±(5.0%+5)
Frequency 10Hz/100Hz/1kHz/10kHz
/100kHz/1MHz/10MHz ±(1.0%+5)
Duty 1%~99% ±(3.0%+5)
Temperature -20℃~1000℃ ±(2.0%+2)
-4℉~1832℉ ±(2.0%+2)
Feature
Display 6000 counts
VFD √
MAX/MIN √
REL √
NCV √
Continuity √
Diode √
Live wire detection √
Temperature √
Data Hold √
Back light √
Work light √
Low voltage indication √
General
Power Supply 2*1.5V AAA Battery
Size 166mm*78mm*64mm
Weight 268g
Safety Rating EN61010-1, EN61010-2-033, EN61326, CAT Ⅲ 600V
Description of Auto Range Digital Multimeter

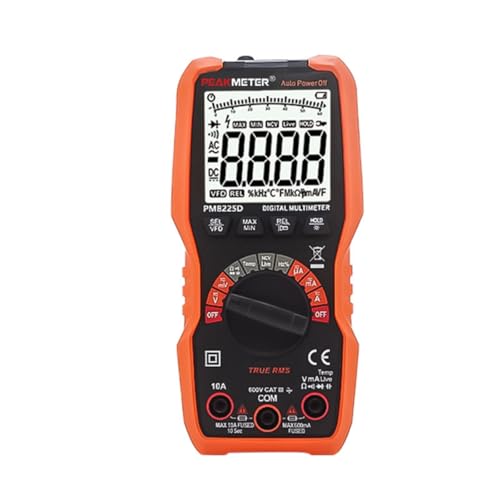

PM8225D is a compact hand-held 6000 counts digital multimeter with high performance and high reliability. It is equipped with overload protection circuit, which can be used to measure AC and DC voltage and current, resistance, diode, circuit connectivity test, non-contact electricity verification and live wire detection. AC voltage is also equipped with VFD low-pass filter, can be used to measure inverter voltage.
Temperature - Turn the knob switch to the position “Temp”, Insert the thermocouple into the jack. Directly read the temperature value from the display screen after the reading is stable.
ProductSiteLaunchDate : 2024-06-22T07:17:31.895Z
Size : PM8225D
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SpecificationMet3 : UL
SupplierDeclaredDgHzRegulation : transportation
UnitCount : 1
UnspscCode : 41110000
UpperTemperatureRating : 60 degrees_celsius
Wattage : 5 watts
