Specification
Brand : HIPICCO
BulletPoint1 : [MODLE] - Bearing Model: AXK2035 (I.D.=20, O.D.=35, Bearing Thickness=2mm,); Washer Model: AS2035
BulletPoint2 : [MATERIAL] - Needle roller thrust bearings made of chrome steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
BulletPoint3 : [FEATURES] - The size is standardized, easy to install and disassemble, and easy to maintain; Low friction resistance, low power consumption and high mechanical efficiency; High precision, high speed, small wear and long service life.
BulletPoint4 : [CAPABILITY] - Dynamic Load Rating (Cr): 12.9kN; Static Load Rating (Cor): 45.6kN; Limiting Speed (Grease): 8500RPM, designed for accommodate axial loads in one direction only
BulletPoint5 : [APPLICATION] - Needle Roller Thrust Bearings, composed of bearing balls supported in a ring, can be used in thrust applications where there is axial load, ranging from agricultural machinery to conveying equipment, robots, elevators, rolling mills, rudder shafts and aggregate crushers.
Color : Silver
ExternallyAssignedProductIdentifier1 : 881863837435
ExternallyAssignedProductIdentifier2 : 886316227344
ExternallyAssignedProductIdentifier3 : 0886316227344
ExternallyAssignedProductIdentifier4 : 0881863837435
IncludedComponents : Needle Roller Thrust Bearings

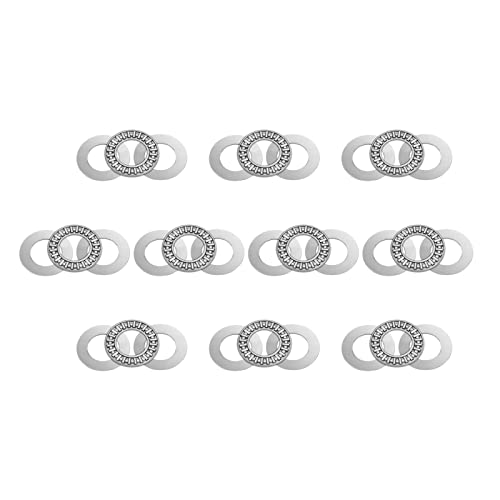

ItemName : HiPicco AXK2035 2AS Thrust Needle Roller Bearings with Washers 10pcs, 20 Bore 35 OD 2mm Width, GCr15 Hardness
ItemPackageDimensions_Height : 13.4 centimeters
ItemPackageDimensions_Length : 1.8 centimeters
ItemPackageDimensions_Width : 8.8 centimeters
ItemPackageQuantity : 10
ItemShape : Round
ItemTypeKeyword : needle-roller-bearings
Manufacturer : HiPicco
Material : Alloy Steel
ModelNumber : AXK2035+2AS
NumberOfItems : 10
PartNumber : H2022032403
ProductDescription :

Description:

• A thrust bearing is a particular type of rotary bearing. Like other bearings they permanently rotate between parts, but they are designed to support a predominantly axial load, they give very good carrying capacity.
• The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting and maintenance inspections.
• AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.
• They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.
• Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness and good wear resistance.

Specification:

• Bearing Model: AXK2035
• Bearing Washer Model: AS2035
• Needle Roller Material: Chromium Steel (GCr15)
• Cage Material: ST13 Steel
• Bearing Washer Material: 65Mn Spring Steel
• Inner Diameter : 20mm
• Outside Diameter (D): 35mm
• Bearing Rollers Diameter: 2mm
• Total Thickness(with Washers): 4mm
• Dynamic Load Capacity (Cr): 12.9kN
• Static Load Capacity (Cor): 45.6kN
• Maximum Rotational Speed (Oil): 8500RPM
• Number of Packs: 10 Pcs

ProductSiteLaunchDate : 2023-03-24T16:29:58.635Z
Size : 20mm x 35mm x 2mm
SpecificationMet : Ansi/Abma
Style : 2pcs
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26111500
