Specification
Brand : COMPUPORT CENTRE INC
BulletPoint1 : CompuPort 5G Cellular Omni-Directional Magnetic/Adhesive Mount Puck Antenna combines the highest possible efficiency and peak gain in GPS/2G/3G/4G/5G in a low-profile compact format for mounting via high-quality first-gier.
BulletPoint2 : Frequency Range: 2x 698-960/1710-3800MHz - It supports all the Channels and Cellular 5G Bands.
BulletPoint3 : CompuPort 5G antennas are compatible with Verizon, AT&T, T-Mobile, ROGERS, TELUS, Bell Network Modems, & Routers with SMA
BulletPoint4 : Impedance: 50 ohms
BulletPoint5 : Max input power: 50w
Color : Black
CompatibleDevices : Router
ConnectorGender1 : Male-toto-
ConnectorGender2 : Female-to-Female
ConnectorType : RF Connector
DataTransferRate : 3000 megabits_per_second
ExternallyAssignedProductIdentifier : 4712563076274
ExternallyAssignedProductIdentifier1 : 301636591451
ExternallyAssignedProductIdentifier2 : 0301636591451
FinishType : Alloy
FrequencyBandClass : dual_band
FrequencyBandsSupported : 2.4 GHz, 5 GHz
Impedance : 50 ohm
IncludedComponents : Antenna
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

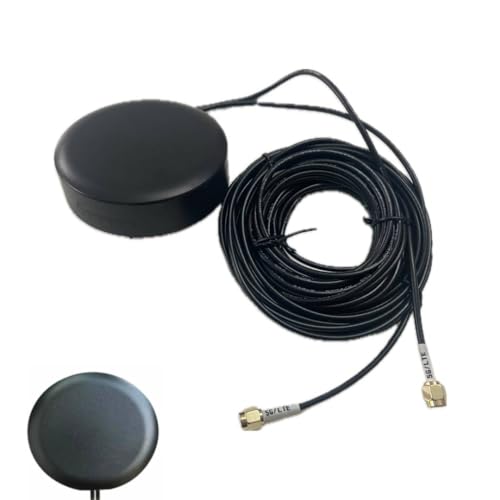

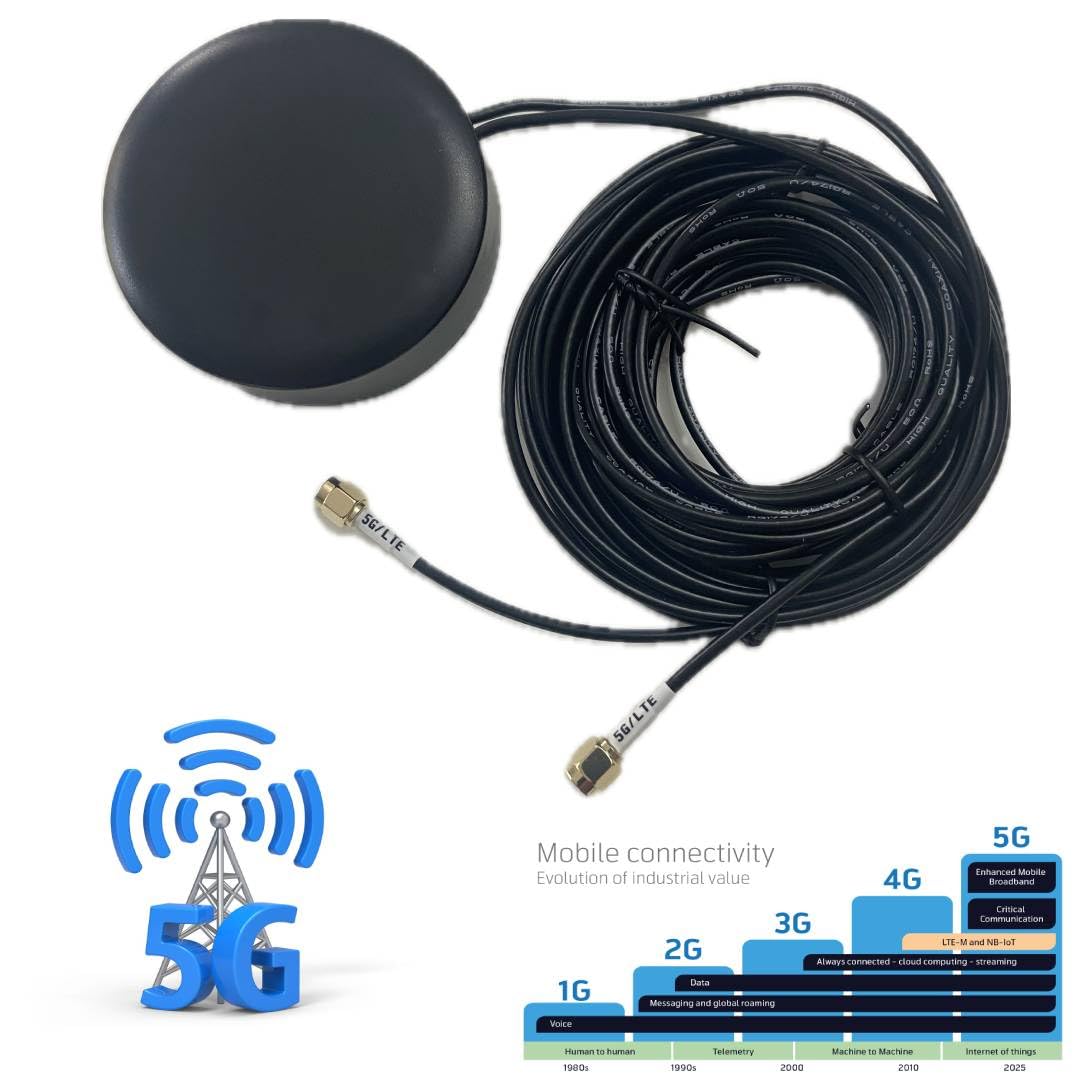

ItemName : CompuPort 5G Cellular Omni-Directional Magnetic/Adhesive Mount Puck Antenna with Dual-Diversity 13' SMA Male Cable Designed for a Range of Cellular Applications, Including IoT Devices.
ItemPackageDimensions_Height : 1.7 inches
ItemPackageDimensions_Length : 4 inches
ItemPackageDimensions_Width : 4 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : network-antennas
LeagueName : Cellular Antenna
Manufacturer : CompuPort®️
Material : Plastic + Metal
MaximumRange : 1000 meters
ModelNumber : CPC-5GLTEX2-13
NumberOfBoxes : 1
NumberOfChannels : 41
NumberOfItems : 1
PartNumber : CPC-5GLTEX2-13'
PowerSourceType : SMA Male
ProductDescription : Specification:
Features:
5G Cellular Omni-Directional:
Omni-Directional: This means the antenna can receive and transmit signals in all directions, providing broad coverage and making it suitable for environments where signal direction may vary.
1- 5G Capable:
Supports the 5G frequencies, ensuring compatibility with the latest cellular networks and providing enhanced data speeds and reliability.
2- Magnetic/Adhesive Mount:
Magnetic Mount: Offers a flexible and easily removable option for temporary or adjustable installations. Ideal for metal surfaces.
Adhesive Mount: Provides a permanent installation option for smooth, clean surfaces. The 3M adhesive ensures a strong bond for reliable performance.
3- Dual-Diversity:Refers to the antenna’s ability to support multiple signal paths, which helps in improving signal reception and reducing dropouts. This feature is especially useful in environments with weak or fluctuating signals.
4- SMA Male Cable:
Comes with a 3-foot cable that connects the antenna to your device. The SMA connector is a standard connector type for many cellular devices and modems.
Frequency Range:
2x698-3800 MHz: Covers a wide range of frequencies, making it compatible with various bands used by major carriers like Verizon, AT&T, and T-Mobile. This range ensures good performance across different network technologies and bands.
Dual-Diversity: Refers to the antenna’s ability to support multiple signal paths, which helps in improving signal reception and reducing dropouts. This feature is especially useful in environments with weak or fluctuating signals.

Electrical:
Frequency Range: 2x 698-960/1710-3800MHz
Gain: 2x3dBi
V.S.W.R: 2.0,Max:3.0
Radiation: Omni-Direction
Polarization: Linear
Maximum Input Power: 50W
Impedance : 50Ώ
Connector: 2xSMA Male
Cable Type: 2xRG174
Cable Length: 4M (13 feet)
Antenna Radome Material: ABS
Mount way: Magnetic + Self Adhesive
Mechanical:
Working Temp: -40℃+85℃
Humidity: 55%-75%RH
Waterproof: IP66
Antenna Radome Material: ABS
Antenna Dimension: Ф80x20 mm
Weight: 250g
RoHS Compliant: YES

Installation Tips:
1- Choose the Mounting Method:
Magnetic Mount: Place the antenna on a clean, flat metal surface. Ensure the magnet is strong enough to hold the antenna securely, especially in areas with vibrations or movement.
Adhesive Mount: Clean the mounting surface thoroughly to remove any dust or grease. Apply the adhesive mount to a flat, stable surface for a strong bond. Allow the adhesive to set fully before using the antenna.
2- Optimal Placement:
Place the antenna in a location where it has an unobstructed view of the sky (for cellular signals) or a clear line of sight to the signal source. Avoid placing it near large metal objects or other sources of interference.

ProductSiteLaunchDate : 2024-06-06T18:22:46.212Z
Size : Small
Style : 4pcs
SupplierDeclaredDgHzRegulation : not_applicable
TeamName : 5G puck antenna
UnspscCode : 43221700
WarrantyDescription : One year by CompuPort Centre Inc.
WirelessCommStandard : 802_11_BGN
