Specification
Brand : AGAGA
BulletPoint1 : The PC control software can export Touchstone (snp) files, which can be used for various radio design and simulation software.
BulletPoint2 : The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz.
BulletPoint3 : The metal shield is designed to reduce the external interference and improve the measurement accuracy.
BulletPoint4 : The 50k-300MHz frequency ranges of the si5351 direct output provides better than 70dB dynamic.
BulletPoint5 : The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.
Color : One Color
ExternallyAssignedProductIdentifier : 7502964402065
IncludedComponents : No

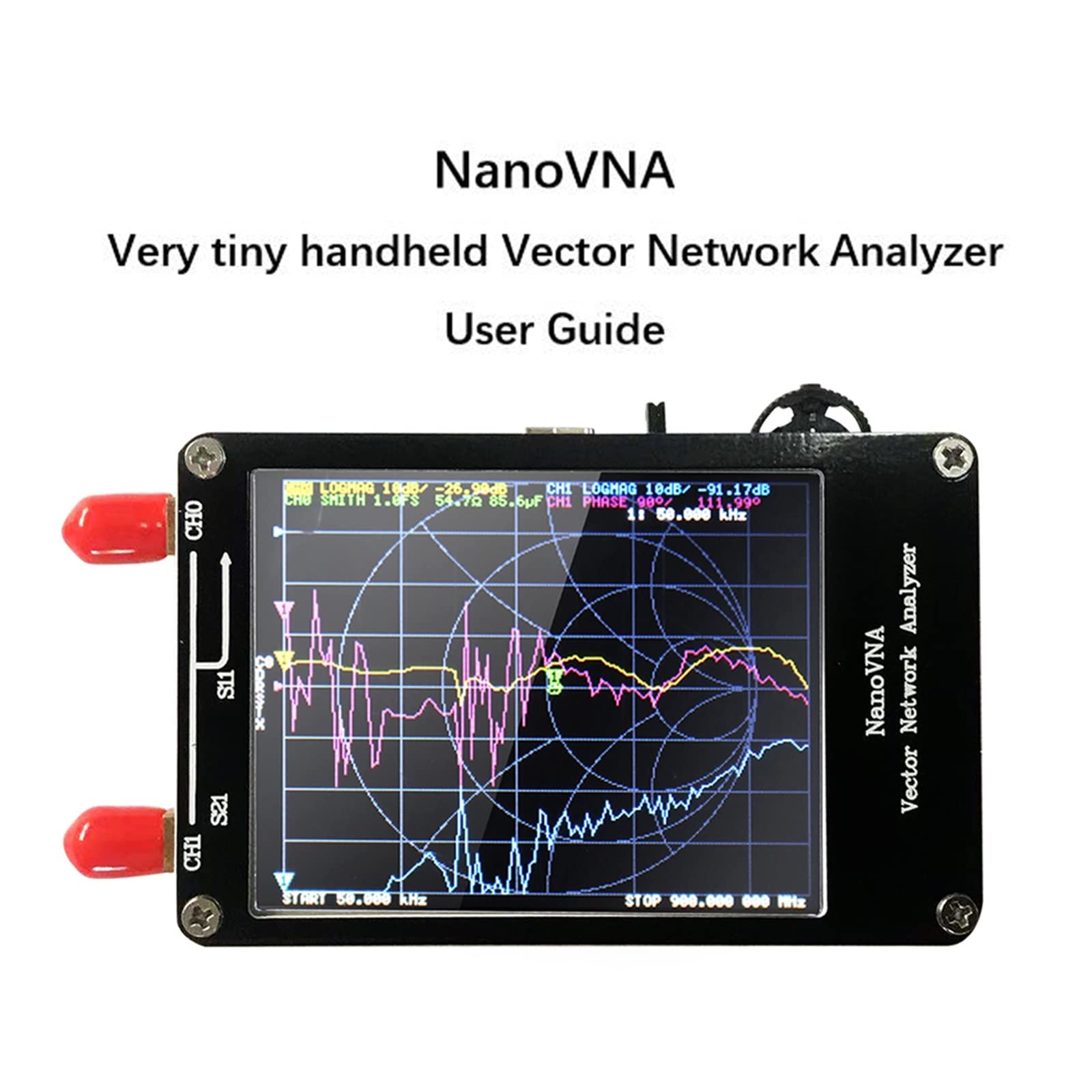

ItemName : Vector Network Analyzer 50KHz-900MHz Standing Waves Shortwave MF HF VHF UHF Antenna Analyzer Digital Nano VNA Tester More powerful and efficient
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : network-and-cable-testers
Manufacturer : AGAGA
MeasurementAccuracy : 0.1mm
ModelName : 1005004677732779346554436545436496
ModelNumber : 1005004677732779346554436545436496
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 1005004677732779346554436545436496
ProductDescription : This is a DIY product with vector network measurement function. It includes a 2.8-inch touching screen, TX/RX measurement, can determine the complete S11 and S21 parameters

Specifications:
Material: PCB
Color: black
Measurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)
RF output: -13dbm (maximum -9dbm)
<;0.5ppm
Measurement ranges: 70dB (50KHz-300MHz), (50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)
<;1.1
Display: 2.8 inch TFT (320*240)
USB interface: USB type-C
Communication mode: CDC (serial)
Power: USB 5V 120mA, maximum recharging current 0.8A
Battery: 1 * lithium battery, 600mAh (included)
Number of calibration points: 101 (fixed)
Number of scanning points: 101 (fixed)
Display tracking: 4, Marking: 4, Setting save: 5
PCB size: 85.5 * 54 * 11mm / 3.4 * 2.1 * 0.4in (without connectors and switches)
Package size: 120 * 78 * 40mm / 4.7 * 3.1 * 1.6in
Package weight: 160g / 5.6ounce

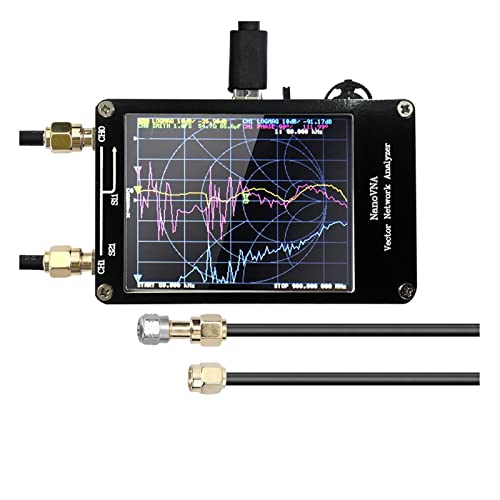

Package list:
1 * Host
1 * USB Type-C Data Cable
2 * 30mm SMA Male to Male Cable
1 * SMA Female to Female Connector
ProductSiteLaunchDate : 2024-12-18T03:26:46.412Z
Size : One Size
UnitCount : 1
UnspscCode : 27110000
