Specification
Brand : fiber mall
BulletPoint1 : This product is applicable to the Compatible Ubiquiti, MikroTik ,Netgate,TP Link, 10G Switches and Routers,8311 Firmware Version (Supports Web management), Chipset: MaxLinear PRX126 (SMF, 9.953G-TX/9.953G-RX,1270 nm-TX/1577 nm-RX, 20km, SC/APC, DDM)
BulletPoint2 : Firmware Compatibility: Supports 8311 community firmware.Streamlined device configuration with ​one-click web setup! Access the interface at ​192.168.11.1 using username root (no password required).
BulletPoint3 : SFP package with SC /APC receptacle High power 1270 nm DML DFB LD and high sensitivity 1577 nm APD,Support 20km transmission distance with SMF,CML-compatible data input/output interface.
BulletPoint4 : Hot-pluggable capability Low power dissipation < 3W,Case temperature range: -40 °C to 85 °C， Low EMI and excellent ESD protection
BulletPoint5 : Support of GPON/XGS-PON/NGPON2 standards，256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs
BulletPoint6 : Allows configuration of parameters such as PON serial number (ONT ID), Vendor ID, Equipment ID, Logical ONU ID, Logical password, and MAC address.
BulletPoint7 : Applications: Residential home gateway，Network switch/router, VDSL MDU, and G.fast DPU，Mobile backhaul
BulletPoint8 : Complies with ITU-T G.987.2,Complies with ITU-T G.9807.1, G.9807.2 ,Complies ITU-T G.988 OMCI L2 MAC Bridge (Up to 64 L2 bridges),G.8275/Y.1369/IEEE 1588v2
Color : white
CompatibleDevices : Pure Enrichment PureZone Air Purifier, Replaces Part NO. PEAIRPLG
CompatibleDevices1 : Microcontroller
CompatibleDevices2 : Single Board Computer
CompatibleDevices3 : Raspberry Pi
CompatibleDevices4 : Arduino (with 3.3V or logic level converter)
ConnectivityTechnology : Ethernet
DataLinkProtocol : IEEE 802 11b
DataTransferRate : 9.953 gigabits_per_second
ExternallyAssignedProductIdentifier : 9115433151715
ExternallyAssignedProductIdentifier1 : 0646819729918
ExternallyAssignedProductIdentifier2 : 646819729918
ExternallyAssignedProductIdentifier3 : 00190017566948
HardwareInterface : 802_11_bgn
IncludedComponents : USB
IncludedComponents1 : 1*sfp dust cover
IncludedComponents2 : 1*XGSPON ONU Stick SFP+
InstallationType : Freestanding
InterfaceType : SFP+

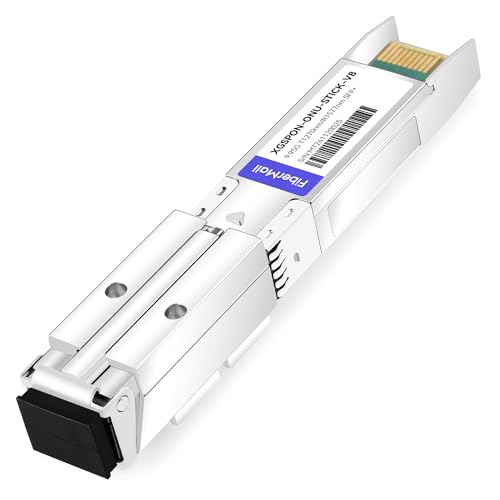

ItemName : fiber mall XGSPON ONU Stick SFP+ with MAC Optical Transceiver,Version 8311,Compatible Ubiquiti Mikro-TIK Netgate TP Link 10G Switches and Routers SMF 9.953G-TX/9.953G-RX,1270 nm-TX/1577 nm-RX
ItemPackageDimensions_Height : 44 millimeters
ItemPackageDimensions_Length : 158 millimeters
ItemPackageDimensions_Width : 16 millimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : network-transceivers
Manufacturer : fiber mall
Material : Nylon
MaximumSupplyVoltage : 12 volts_of_direct_current
MinimumSupplyVoltage : 9 volts
ModelName : BPI-R3
ModelNumber : XGSPON-ONU-STICK-UB-8311
MountingType : Surface Mount
NumberOfChannels : 2
NumberOfItems : 1
OperatingSystem : Linux
OutputPower : 1585 milliwatts
PackageLevel : unit
PartNumber : XGSPON ONU Stick SFP+
ProcessorCount : 1
ProductDescription :

XGSPON ONU Stick SFP+ with MAC Transceiver,8311 Firmware Version (Supports Web management), Chipset: MaxLinear PRX126 (SMF, 9.953G-TX/9.953G-RX,1270 nm-TX/1577 nm-RX, 20km, SC/APC, DDM)

• The XGSPON ONU stick with MAC module is designed for 10G passive optical network systems.
• The STICK optical module can fully meet the requirements of the carrier-grade FTTB\ FTTH\ FTTO device.
•  It can be hot-swapped into the SFP+ slot of the Layer 2 Ethernet switch.
• The whole machine can be used as an ONT or even an MDU to connect the entire device to the XGSPON optical network directly. The central office OLT only needs to register the XGSPON ONU STICK optical module as if it were a typical optical CAT.
• The communication device can complete the access switch from the original P2P.

Custom XGSPON ONU Stick SFP+

• Firmware Compatibility: Supports 8311 community firmware.
• Hardware Specs: High-performance design with 1 GB RAM for seamless operation.

Customization Support

Allows configuration of the following parameters:

• PON serial number (ONT ID)
• Vendor ID
•  Equipment ID
•  Logical ONU ID
•  Logical password
•  MAC address

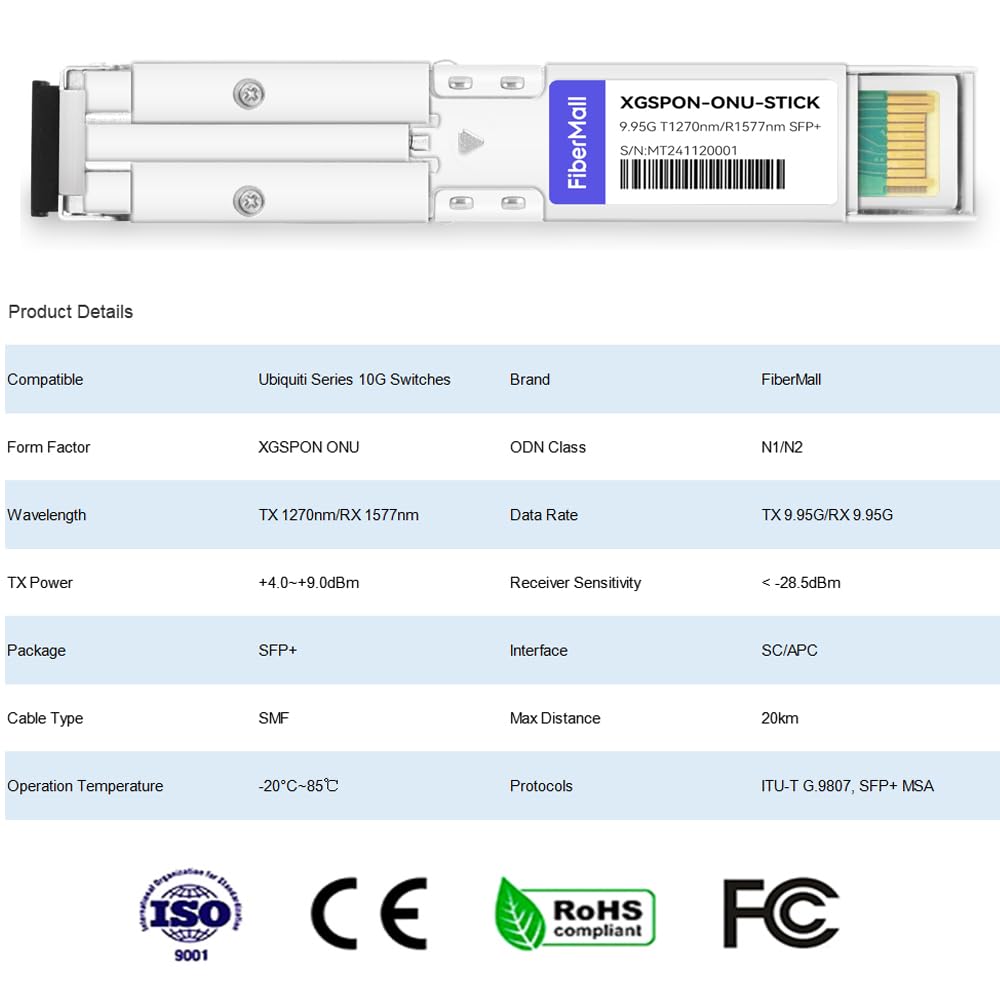

Product Features

• Compatible: Ubiquiti Series 10G Switches
• Form :XGSPON ONU Stick SFP+
• Brand name:FiberMall
•  Single fiber bi-directional data links symmetric TX 9.953 Gb/s / RX 9.953 Gb/s with MAC function
•  SFP package with SC /APC receptacle
• Single 3.3 V power supply
• Hot-pluggable capability
• High power 1270 nm DML DFB LD and high sensitivity 1577 nm APD
• Support 20km transmission distance with SMF
• CML-compatible data input/output interface
• Low power dissipation < 3W
• Low EMI and excellent ESD protection
• Digital diagnostic monitor interface
• RoHS-6 compliance
• Case temperature range: -40 °C to 85 °C
• Support of GPON/XGS-PON/NGPON2 standards
• 256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs
• Carrier Grade QoS Engine
•  Advanced loopback and diagnostic capabilities
• Supports Synchronous Ethernet (SyncE)

Applications

• Residential home gateway
• Network switch/router, VDSL MDU, and G.fast DPU
• Mobile backhaulStandard
• Complies with ITU-T G.987.2
• Complies with ITU-T G.9807.1, G.9807.2
• ITU-T G.988 OMCI L2 MAC Bridge (Up to 64 L2 bridges)
• G.8275/Y.1369/IEEE 1588v2
• IEEE 802.1ag and ITU-T Y.1731 Ethernet OAM delay & loss measurement hardware support

ProductSiteLaunchDate : 2025-03-28T10:21:18.324Z
Size : 5*5 Holes
SpecificationMet : [Po] Potentially Fcc, Ce, Rohs
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Managed, Cut-through, Non-PoE, Layer 2
UnitCount : 1
UnspscCode : 43222612
UpperTemperatureRating : 85 degrees_celsius
Voltage : 3.3 volts
WarrantyDescription : 2 year
WirelessCommStandard : 802_11_BGN
