Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : GODIYMODULES
BulletPoint1 : This Milliohm meter is not suitable for too much high accuracy Capacitance Testing. Capacitance testing results may be NOT very accurately because of capacitors characteristics.
BulletPoint2 : Operating temperature -10 to +50℃; 85% R.H., non-condensation Storage temperature -20 to +65℃; 85% R.H., non-condensation
BulletPoint3 : Resistance measuring range: 0.001-120 Ω
BulletPoint4 : Resistance measuring accuracy: 1 mΩ
BulletPoint5 : Capacitance measuring range: 10pf-20000uf
BulletPoint6 : Conductor resistance measurement of the connection part between the grounding grid and the grounding electrode
Color : Blue
Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : DE_SmallLithiumIonBatteryInEquipment
Hazmat11 : EG_SmallLithiumIonBatteryInEquipment
Hazmat12 : ES_SmallLithiumIonBatteryInEquipment
Hazmat13 : FR_SmallLithiumIonBatteryInEquipment
Hazmat14 : GB_SmallLithiumIonBatteryInEquipment
Hazmat15 : IE_SmallLithiumIonBatteryInEquipment
Hazmat16 : IN_SmallLithiumIonBatteryInEquipment
Hazmat17 : IT_SmallLithiumIonBatteryInEquipment
Hazmat18 : JP_SmallLithiumIonBatteryInEquipment
Hazmat19 : MX_SmallLithiumIonBatteryInEquipment
Hazmat2 : UN3481
Hazmat20 : NL_SmallLithiumIonBatteryInEquipment
Hazmat21 : PL_SmallLithiumIonBatteryInEquipment
Hazmat22 : SA_SmallLithiumIonBatteryInEquipment
Hazmat23 : SE_SmallLithiumIonBatteryInEquipment
Hazmat24 : SG_SmallLithiumIonBatteryInEquipment
Hazmat25 : TR_SmallLithiumIonBatteryInEquipment
Hazmat26 : US_SmallLithiumIonBatteryInEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryInEquipment
Hazmat28 : 9
Hazmat3 : II
Hazmat4 : AE_SmallLithiumIonBatteryInEquipment
Hazmat5 : AU_SmallLithiumIonBatteryInEquipment
Hazmat6 : BE_SmallLithiumIonBatteryInEquipment
Hazmat7 : BR_SmallLithiumIonBatteryInEquipment
Hazmat8 : CA_SmallLithiumIonBatteryInEquipment
Hazmat9 : CN_SmallLithiumIonBatteryInEquipment
IncludedComponents : 1PCS Module

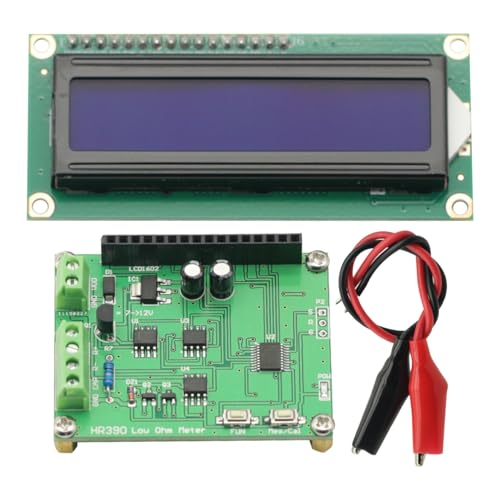

ItemName : 1PCS Milliohm Meter Low Resistance Tester Ohmmeter to Measure Resistance Value
ItemPackageDimensions_Height : 20 millimeters
ItemPackageDimensions_Length : 57 millimeters
ItemPackageDimensions_Width : 45 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : GODIYMODULES
Material : acrylonitrile_butadiene_styrene
MaximumOperatingVoltage : 12 volts_of_direct_current
MeasurementAccuracy : 1
MeasurementType : Ohmmeter
MinimumOperatingVoltage : 7 volts_of_direct_current
ModelName : Akozonnqpe8y1k7o
ModelNumber : LB620C
NumberOfItems : 1
NumberOfLithiumIonCells : 4
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : HR390-Meter-001
Pattern : HY-UT3513
PowerSourceType : Corded Electric
ProductDescription :

Technical Parameters

Resistance measuring range	0.001-120 Ω
Resistance measuring accuracy	1 mΩ
Capacitance measuring range	10pf-20000uf
Capacitance measuring accuracy	1pf *This Milliohm meter is not suitable for too much high accuracy Capacitance Testing. Capacitance testing results may be NOT very accurately because of capacitors characteristics.
Operating power supply	7-12VDC, recommend 9VDC
Operating current	<100mA
Operating temperature	-10 to +50℃; 85% R.H., non-condensation
Storage temperature	-20 to +65℃; 85% R.H., non-condensation
Size	57x45x20mm

Terminal Description

Terminal code	Description
VDD	7-12V operating power supply +
GND	7-12V operating power supply-
R+	Connect to resistance
R-	Connect to resistance
CAP	Connect to Capacitance +
GND	Connect to Capacitance -

Button Function

Button Code	Description
FUN	Resistance and capacitance measurement switching
Mes /Cal	Testing meter calibration

* Resistance measurement calibration: Short-circuited connect resistance measuring wire, then press [Mes/Cal] button.

* Capacitance measurement calibration: Open-circuited connect capacitance measuring wire, then press [Mes/Cal] button.

Milliohm Meter package including:

ProductSiteLaunchDate : 2024-07-14T02:11:51.739Z
Size : UT3513
SpecificationMet1 : CE
SpecificationMet2 : UKCA
SpecificationMet3 : RoHS
SpecificationMet4 : ISO 9001
Style : Blue
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41113600
Wattage : 5 watts
