Specification
Brand : ZOEYEC
BulletPoint1 : Note:Should be Avoided (the line cannot be measured with power on, otherwise the instrument may be damaged)
BulletPoint2 : With Data Storage 200 Groups and Large Capacity Rechargeable Lithium Battery.
BulletPoint3 : Easy to Operate and Carry,Short Circuit and Press Zero Button to Clear Line Resistance,measurement more accuracy.
BulletPoint4 : [ABS SHELL] The meter shell is made of excellent ABS material, which is to and oxidation.
BulletPoint5 : [BATTERY POWERED] The insulation tester can be powered by 6 AA batteries (not included), which is convenient to use.
Color : Black
ExternallyAssignedProductIdentifier1 : 0793451589148
ExternallyAssignedProductIdentifier2 : 793451589148
IncludedComponents : 1xETCR3620 Milliohm meter

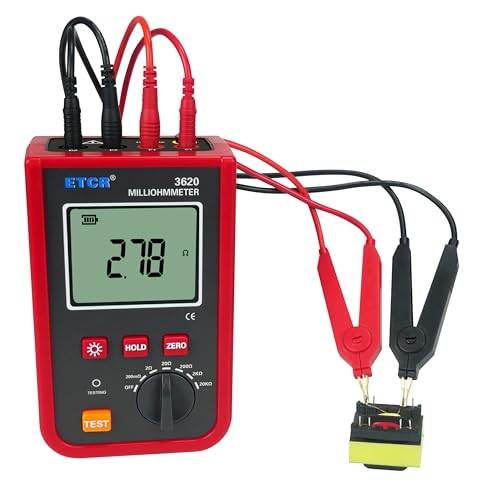

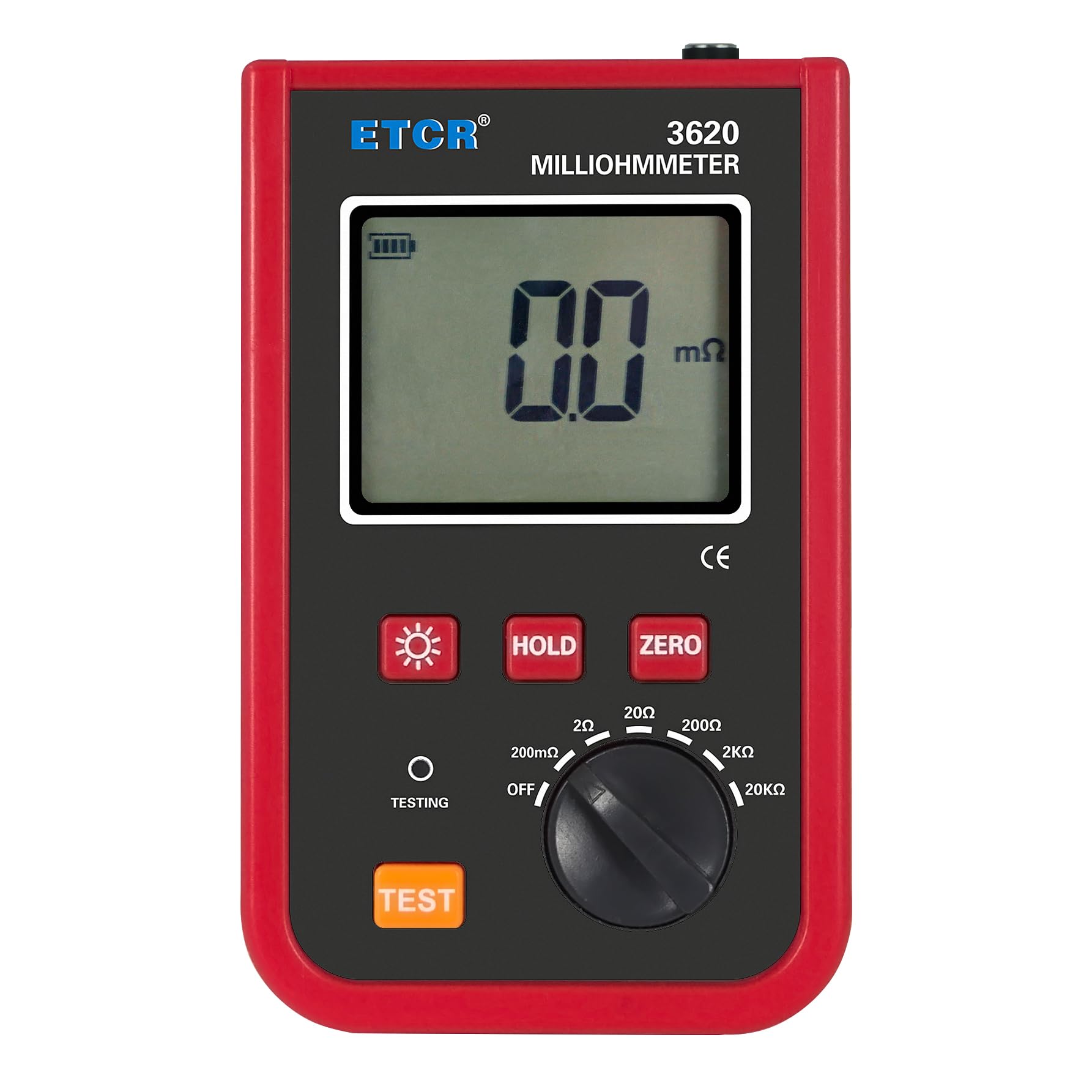

ItemName : ETCR3620 High Precision Milliohmmeter 1mΩ to 20.0kΩ Digital Milli ohm Meter Resistance Tester 4 Wire Micro Ohm Meter
ItemPackageDimensions_Height : 8 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 17 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : ZOEYEC
MeasurementAccuracy : ±0.1%FS±15dgt
MeasurementType : Ohmmeter
ModelName : Icrpstua0pyxwktng
ModelNumber : ETCR3620
NumberOfItems : 1
PartNumber : ETCR3620
PowerSourceType : Battery Powered
ProductDescription :

Apply to measure the wire resistance of cables, the contact resistance of switches, connectors and relays, the DC resistance of coils, motors and transformers windings, and the connection resistance of the connecting conductor between the metal riveting, the metal components, the ground grid and the ground pole, etc.

Specification:

Model:ETCR3620

Range：1mΩ~20.0kΩ

200mΩ，Accuracy ±0.1%FS±15dgt，Resolution  0.1mΩ，Test Current ≤1.2A

2Ω，Accuracy ±0.1%FS±15dgt，Resolution  1mΩ，Test Current ≤510mA

20Ω，Accuracy ±0.1%FS±15dgt，Resolution  0.01Ω，Test Current ≤210mA

200Ω，Accuracy ±0.1%FS±15dgt，Resolution  0.1Ω，Test Current ≤210mA

2kΩ，Accuracy ±0.1%FS±15dgt，Resolution  1Ω，Test Current ≤21mA

20kΩ，Accuracy ±0.1%FS±15dgt，Resolution  10Ω，Test Current ≤2.1mA

Measuring time: 2 seconds/time

Detection Mode:Precision 4-wire method, AC/DC 2 Channel Simultaneous Detection.

Test Interface: C1 Current Positive, C2 Current Negative, P1 Voltage Positive, P2 Voltage Negative.

Measuring Power: ≤17.64W

Working Current: ≤1.2A

Data Storage:200 Groups

Test Wire: Red+Black, length 80cm

Data Hold: Yes

One Click To Zero:Yes

Backlight Function:Yes

Low Voltage Indicator:Yes

Display Size: 58.5mm×46mm

Over-range Overflow Function: "OL" symbol display

Line Voltage: Should be Avoided (the line cannot be measured with power on, otherwise the instrument may be damaged)

Size:159mm×100mm×66mm

Weight:about 460g

Power Supply:DC 7.4V  2600mAH rechargeable lithium Battery

Withstand Voltage:AC 3700V/rms(between housing and screws)

Working Temperature:-10℃~40℃ , below 80%rh

Store Temperature:-10℃~60℃ , below 70%rh

Safety regulations: IEC61010-1, CAT III 600V,JJG724-1991

ProductSiteLaunchDate : 2025-03-18T11:13:14.684Z
Size : US Plug
Style : Digital Milli ohm Meter
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 53120000
