Specification
Brand : ZOEYEC
BulletPoint : Ammeters
BulletPoint1 : Note:Should be Avoided (the line cannot be measured with power on, otherwise the instrument may be damaged)
BulletPoint2 : Large LCD display, capable of storing 200 sets of data, measuring range:1uΩ～200Ω, maximum test current:5A.
BulletPoint3 : Using double-arm bridge method for accurate measurement, no need to calibrate line resistance.
BulletPoint4 : [ABS SHELL] The meter shell is made of excellent ABS material, which is to and oxidation.
BulletPoint5 : [BATTERY POWERED] The insulation tester can be powered by 6 AA batteries (not included), which is convenient to use.
Color : Black
ExternallyAssignedProductIdentifier : 7320543415417
ExternallyAssignedProductIdentifier1 : 0793451589155
ExternallyAssignedProductIdentifier2 : 793451589155
IncludedComponents : 1x3640 Microohm Meter

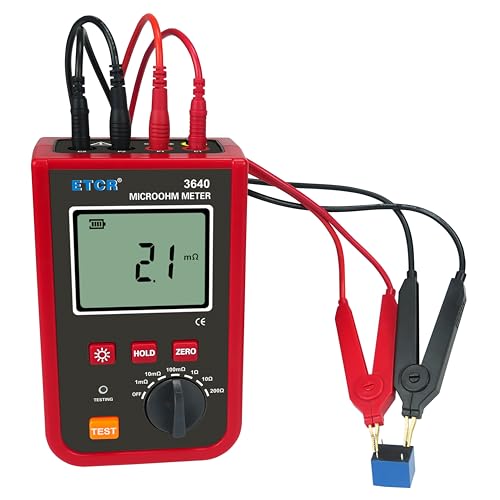

ItemName : ETCR3640 Digital Milliohm Meter 1uΩ to 200Ω High Precision Microohm Meter 4 Wire Micro Ohm Tester Meter with Data Logging
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : ZOEYEC
MeasurementAccuracy : ±0.1%FS±10 dgt
MeasurementType : Ohmmeter
ModelName : SLMLSGB
ModelNumber : 3640
NumberOfItems : 1
PartNumber : 3640
PowerSourceType : Battery Powered
ProductDescription :

Portable micro-ohmmeter is also called DC low resistance meter, DC resistance tester, ohmmeter. The instrument adopts microprocessor technology and four-wire method test, which is safe, precise and reliable. It is mainly used to measure the wire resistance of cables, the contact resistance of switches, connectors and relays, the DC low resistance of coils, motors and transformer windings, the connection resistance between metal riveted parts and metal components, and the connection resistance between ground grid and ground electrode connecting conductors. The instrument is widely used in industrial and mining enterprises, construction monitoring and supervision companies, construction units, lightning protection companies, power departments, ship locomotive factories, etc.

Specification:

Model:ETCR3640

Range:1uΩ~200.0Ω

1mΩ，Accuracy ±0.1%FS±10dgt，Resolution 1uΩ，Test Current ≤5A

10mΩ，Accuracy ±0.1%FS±10dgt，Resolution 10uΩ，Test Current ≤4A

100mΩ，Accuracy ±0.1%FS±10dgt，Resolution 0.1mΩ，Test Current ≤2A

1Ω，Accuracy ±0.1%FS±10dgt，Resolution 1mΩ，Test Current ≤1A

10Ω，Accuracy ±0.1%FS±10dgt，Resolution 0.01Ω，Test Current ≤100mA

200Ω，Accuracy ±0.1%FS±10dgt，Resolution 0.1Ω，Test Current ≤10mA

Measuring time: 2 seconds/time

Detection Mode:Precision 4-wire method, AC/DC 2 Channel Simultaneous Detection.

Test Interface: C1 Current Positive, C2 Current Negative, P1 Voltage Positive, P2 Voltage Negative.

Working Current: ≤5A

Data Storage:200 Groups

Test Wire: Red+Black, length 80cm

Data Hold: Yes

One Click To Zero:Yes

Backlight Function:Yes

Low Voltage Indicator:Yes

Display Size: 58.5mm×46mm

Over-range Overflow Function: "OL" symbol display

Line Voltage: Should be Avoided (the line cannot be measured with power on, otherwise the instrument may be damaged)

Size:159mm×100mm×66mm

Weight:about 460g

Power Supply:DC 7.4V 2600mAH rechargeable lithium Battery

Withstand Voltage:AC 3700V/rms(between housing and screws)

Working Temperature:-10℃~40℃ , below 80%rh

Store Temperature:-10℃~60℃ , below 70%rh

Safety regulations: IEC61010-1, CAT III 600V,JJG724-1991

ProductSiteLaunchDate : 2025-03-20T08:01:43.854Z
Size : One Size
Style : Microohm Meter
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41113600
