Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Jieotwice
BulletPoint1 : This compact pocket test meter can not only measure the surface impedance, but also measure the resistance to ground.
BulletPoint2 : The measurement range is from 103 ohms to 1012 ohms with an accuracy of ±1/2 range.
BulletPoint3 : The SL-030 adopts ASTM standard D-257 parallel electrode sensing method.
BulletPoint4 : It can easily and repeatedly measure various conductive type, electrostatic discharge type, and insulating type surfaces.
BulletPoint5 : Temperature range: Operating temperature 5 degrees Celsius to 49 degrees Celsius
Color : Green
ExternallyAssignedProductIdentifier : 9419619954238
IncludedComponents : other
ItemName : Jieotwice Handheld Surface Resistance Tester, Anti-Static Tester Impedance Meter SL-030
ItemPackageDimensions_Height : 37 centimeters
ItemPackageDimensions_Length : 32 centimeters
ItemPackageDimensions_Width : 30 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : Jieotwice
Material : Material
MeasurementAccuracy : 1
MeasurementType : Ohmmeter
ModelNumber : 2023022011
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PartNumber : J-SL-030
PowerSourceType : Battery Powered
ProductDescription :

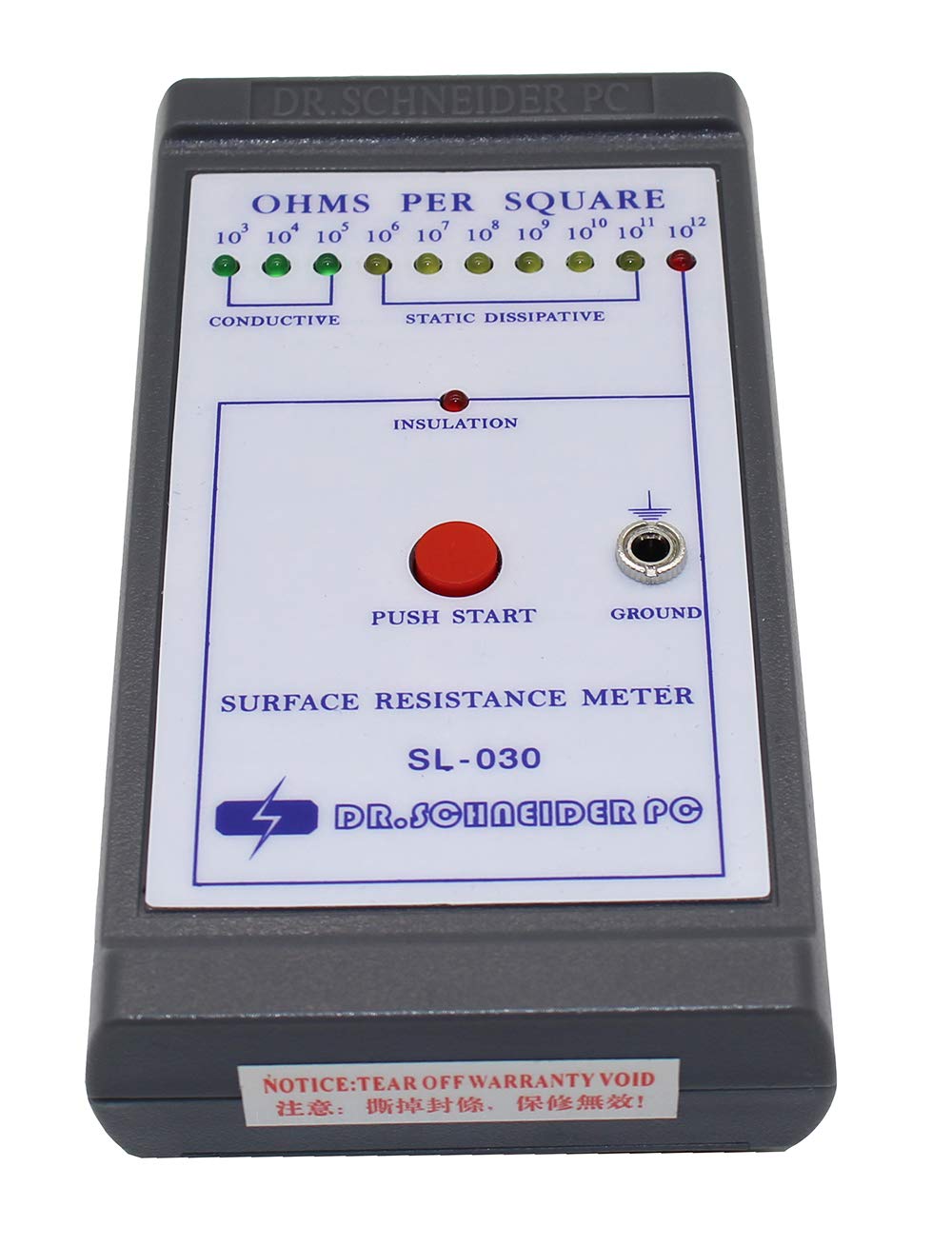

SL-030 Handheld Surface Resistance Tester, Anti-static Tester Impedance Meter

Instructions:
To measure the surface impedance, place the Tester on the surface to be measured, and press and hold the red TEST button.
Continuously lit LEDs indicate the magnitude of the measured surface impedance.
103=1 kohm (Green LED)
104=10k Ohm (Green LED)
105=100k Ohm (Green LED)
106=1M Ohm( Yellow LED)
107=10 MΩ( Yellow LED)
108=100 megohm ( Yellow LED)
109=1000 MΩ( Yellow LED)
1010=10000 Mohm ( Yellow LED)
1011=100000 Mohm( Yellow LED)
1012=1000000Mohm( Red LED)
1012 = Insulated (Red LED) 2.Measure resistance to ground:
Insert the ground wire into the ground,Place the Tester on the surface to be measured and hold down the TEST button.
The continuous light LED indicates the magnitude of the resistance to ground. The unit of this measurement is ohms

Parameter:
Power supply: 9 volt PP3 alkaline battery
Measuring voltage: 9 volts
Temperature range: Operating temperature 5 degrees Celsius to 49 degrees Celsius
Storage temperature: -15 degrees Celsius to 60 degrees Celsius
Relative humidity: 0% to 90% (non-condensing state)
Measurement: 10 orders of magnitude
Change point: 1/2 logarithm (3.16 x 10n)

Transition point accuracy: ±1/2 stage
Accuracy: ±10%
Repeatability: ±5%
Weight: 170g
Size: 130×70×25mm

Package included:
1x Surface Resistance Tester
ProductSiteLaunchDate : 2021-05-04T10:09:32.734Z
Size : MEDIUM
UnspscCode : 41113600
