Specification
Brand : Hilitand
BulletPoint1 : [Wide Measuring Range] This tester has an extensive range with over-range indication showing a '1' when the limit is exceeded.
BulletPoint2 : [Automatic Shutdown Function] Includes an automatic shutdown feature after 15 minutes to conserve battery power.
BulletPoint3 : [Digital Insulation Tester] Features a large 64x44mm lcd display with a maximum of ensuring clear readouts.
BulletPoint4 : [Versatile Applications] Ideal for insulation testing on motors cables power facilities and more making it a versatile tool for various industries.
BulletPoint5 : [Data Retention & Test Lock] The device supports a data retention function and test lock for stable and performance.
IncludedComponents : No

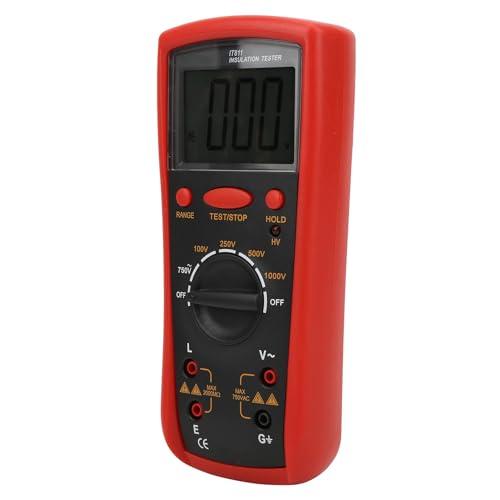

ItemName : LCD Meter, Digital Insulation Tester LCD Display Megohm Electrical Tools Data Retention Function, Insulation Meters
ItemPackageDimensions_Height : 8 centimeters
ItemPackageDimensions_Length : 23 centimeters
ItemPackageDimensions_Width : 17 centimeters
ItemTypeKeyword : Ohmmeters
Manufacturer : Hilitand
ModelNumber : Hilitandf0gx34oya8
NumberOfItems : 1
PartNumber : Hilitandf0gx34oya8
ProductDescription : Spec:

Condition: Brand New
Item Type: Insulation Tester
Material: ABS
Display: 64x44mm LCD Display, Maximum Display
Over-Range Indication: When the upper limit is exceeded, only the highest digit displays 1
Power Supply: 6x1.5V Dry Battery (Battery Not Included) Under-voltage indication when the voltage is insufficient
Auto Power Off Function: About 15 minutes after power on
Power Consumption: Test no-load power consumption Use Environment: Temperature: 0℃-400℃, Relative Humidity: 30%RH-85RH
Basic Function Range Basic Accuracy
Output Voltage 100V/ 250V/500V/1000V ±10%
Test Current 100V (R=100kΩ) 1mA ±10%
250V (R=250kΩ) 1mA
500V (R=500kΩ) 1mA
1000V (R=1MΩ) 1mA
RangeInsulation 100V: 0.1MΩ-20MΩ ±(4% of Reading ±2 Digit)
250V: 0.1MΩ-20MΩ
500V: 0.1MΩ-50MΩ
1000V: 0.1MΩ—100MΩ
100V: 0.1MΩ—20MΩ ±(4% of Reading ±2 Digit)
250V: 20MΩ-500MΩ
500V: 50MΩ-1000MΩ
1000V: 100MΩ-2000MΩ
Short Circuit Current 100V About 1.2mA, 250V/500V/1000V About 1.6mA
100V/250V/500V: 2 MΩ 1000V: 5MΩ
Voltage Measurement AC750V ±(2% Reading + 5 Digit)
Jacks Location Insulation : L, E AC750V: ACV, G AC750V Input Impedance: 1MΩ
AC750V Frequency Response: (50-200) Hz
Note: The guarantees that the voltage at both ends of the measurement is not lower than the lower limit of measurement at 90% of the nominal value of the test voltage.



Package List:
1 x Insulation Tester (Battery Not Included)
2 x Test
2 x Clip
1 x Bag
1 x Manual



ProductSiteLaunchDate : 2025-03-04T14:29:25.689Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41113600
