Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : RaeSung

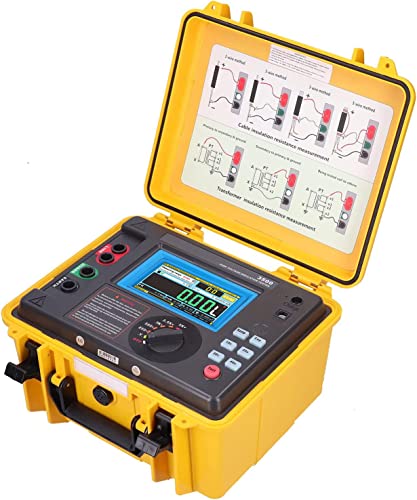

BulletPoint1 : 【WATERPROOF&SHOCKPROOF DESIGN】-- The outer box is a waterproof box design, close the lid, waterproof and shockproof, easy to store, hard shell, bumpproof, easier to use
BulletPoint2 : 【MULTIPLE TEST FUNCTIONS】-- With insulation resistance test (IR), polarization index test (PI), absorption ratio test (DAR), filter function (4 time options 10S, 20S, 30S, 40S), voltage test (V), capacitance test (uF) ), current test (nA)
BulletPoint3 : 【HD LCD DISPLAY】-- The high‑definition LCD screen is clear at a glance, all functions are displayed on the same screen, and the rich color design looks very comfortable

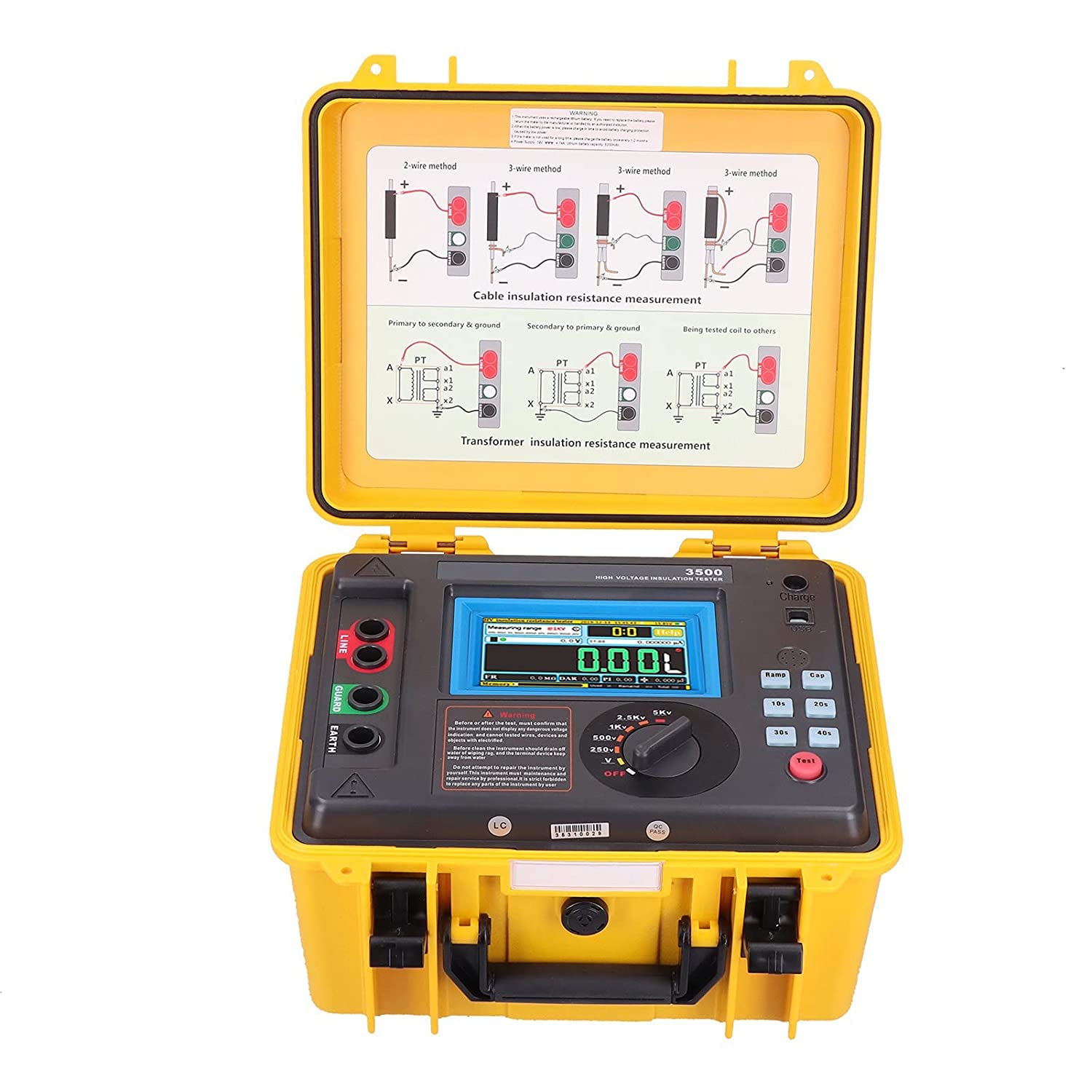

BulletPoint4 : 【WIRING DIAGRAM】-- The inner cover is marked with a wiring diagram, so you don’t have to worry about not being wired anymore, it's very user‑friendly design
BulletPoint5 : 【5‑6 GEAR POSITIONS】-- Rich voltage crotch positions, starting at 250V, up to 5‑6 gear positions. With a large range, the resistance range is as high as 2TΩ
Color : Yellow
IncludedComponents : Complete and Standard Package
ItemName : RaeSung ETCR3500 5KV Digital Earth Resistance Tester for Electrical Equipment Rechargeable Lithium Battery ETCR-3500 Ground Resistance Meter
ItemPackageDimensions_Height : 28 centimeters
ItemPackageDimensions_Length : 34 centimeters
ItemPackageDimensions_Width : 18 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : RaeSung
Material : Plastic
MeasurementAccuracy : High
MeasurementType : Ohmmeter
MinimumOperatingVoltage : 250 volts
ModelNumber : ETCR3500
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PartNumber : ETCR3500
PowerSourceType : Battery Powered
ProductDescription :

Specification:

Item Type: Insulation Resistance Tester

Material: ABS

Color: As shown in the picture

Model: ETCR3500

Product Rated Voltage: 250V, 500V, 1KV, 2.5KV, 5KV

Output Voltage Accuracy: (5%~10%) ±10V

Insulation Resistance Range: 0.5MΩ~2TΩ

Short Circuit Current: >5mA

Functions: Insulation resistance test (IR), polarization index test (PI), absorption ratio test (DAR), filter function (4 time selections 10S, 20S, 30S, 40S), voltage test (V), capacitance test ( uF), current test (nA).

Power Supply: Rechargeable lithium battery 5200mAhx1 (built-in battery)

Adapter: AC110~240V

Polarization Index Test: Support

Absorption Ratio Test: Support

Ramp Test Mode: Take 10% of the preset voltage as a step amount to test until the preset voltage

Filter Test Mode: 10S, 20S, 30S, 40S four options

How to Use:

Get the product, open the upper cover, the user can select the measurement range, rotate the selection, connect the measurement line, you can measure, there is a power line control next to the product screen, connect the adapter to charge. With a USB interface, data can be imported into the computer. The operation is simple and practical, and it is more comprehensive than the insulation resistance tester on the market.

Package List:

1 x Insulation Resistance Tester

1 x Adapter

1 x USB Cable

2 x Test Line

1 x Test Pen

1 x Clip

1 x Hook

1 x CD

1 x Bag

1 x Instruction Manual
