Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : RaeSung
BulletPoint : Portable Optical Power Meter JW3208C Laser Fiber Optic Tool Tester -50 to +26dBm
BulletPoint1 : ETCR5000 Power Quality Analyzer is a comprehensive test instrument,designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on.
BulletPoint2 : Built-in flash memory can store 60 group of screenshots at the same time, 150 groups of capture transient voltage/current waveform figure, and 12800 groups of alarm list. Starting current detection model can continuously capture starting current waveform for 100 s. Built-in 2G memory card to store the trend curve record, simultaneous recording 20 parameters (can choose according to need) collect data for once every five seconds, trend curve records can be stored for 300 days.
BulletPoint3 : Can simultaneously measure the 4-channel current (ABC three phase and neutral wire current), 4-channel voltage (ABC three-phase voltage and neutral line voltage to ground), the peak value of current voltage, maximum/minimum value over a period, three-phase imbalance factor, short-time voltage flicker, transformer K factor, active power, reactive power, apparent power, power factor and displacement power factor, active power, reactive power, apparent power, etc.
BulletPoint4 : ETCR5000 Power quality analyzer adopt DSP + ARM double processor architecture, DSP is use for data collection and the processing of algorithm, the ARM is use for the communication protocol and the man-machine interface processing; Analog signal acquisition is by 2 pieces AD7655 of ADI company.
BulletPoint5 : Using a 5.6 -inch LCD color screen display, a resolution of 640 dots x 480 dots, with different display color difference between the parameters of phase, waveform, vector diagram, harmonic ratio, the user can be more efficient and more intuitive understand the state of power grid parameters.
Color : UK Plug
ExternallyAssignedProductIdentifier : 6493615644181
IncludedComponents : /

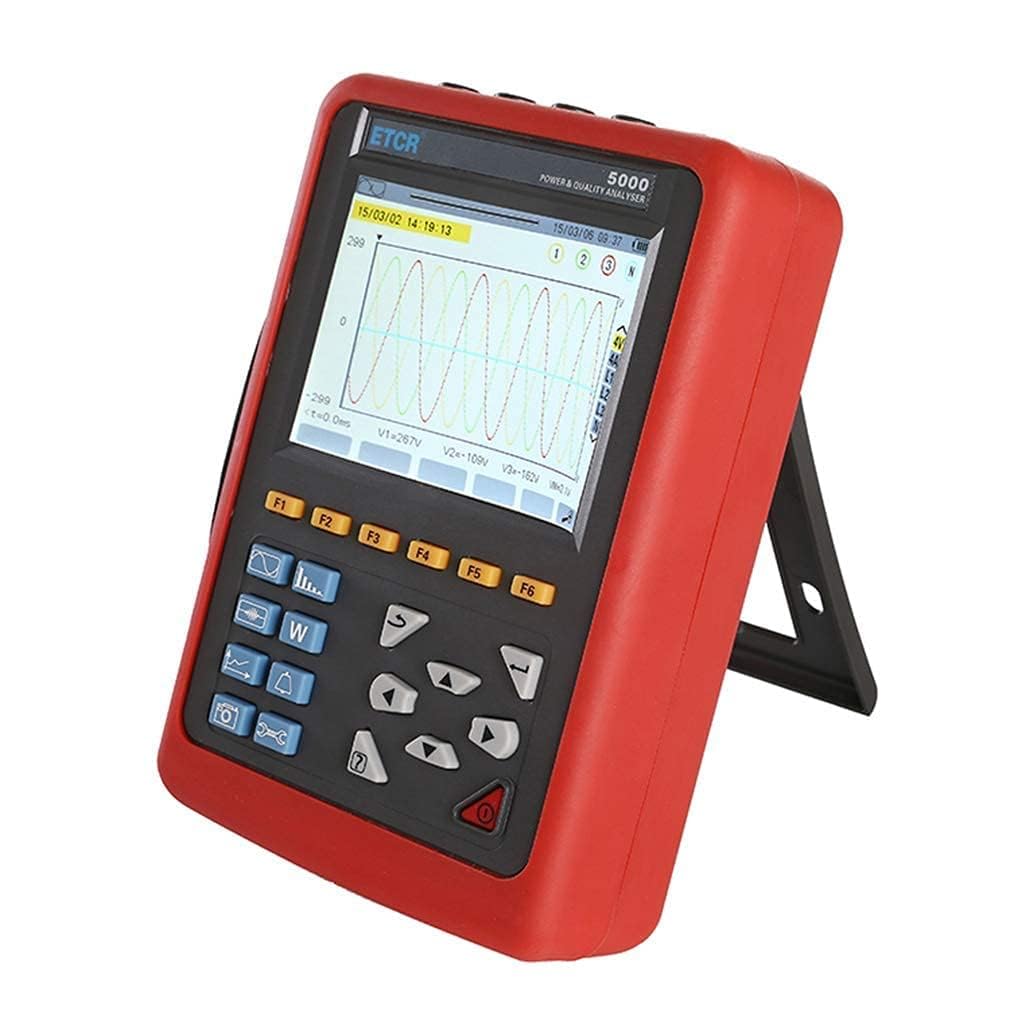

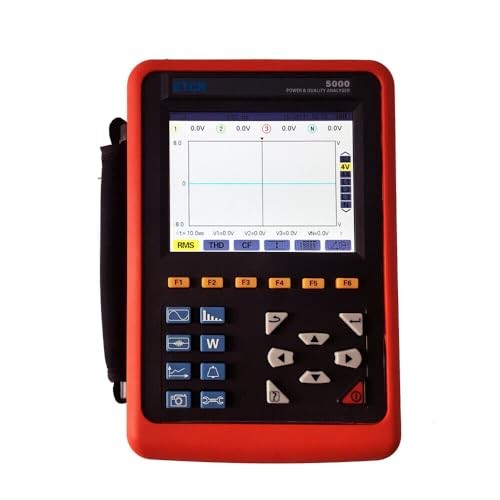

ItemName : RaeSung ETCR5000 Power Quality Monitor 3 Phase Power Quality Analyzer Meter with 4PCS ETCR300F Flexible Coil Current Sensors Range 10A ~ 6000A
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : RaeSung
Material : plastic
MeasurementAccuracy : High
ModelName : ZIMAOBMU
ModelNumber : ZIMAOBMU
NumberOfBoxes : 1
NumberOfItems : 9
PartNumber : ETCR5000+300F
PowerSourceType : Ac
ProductDescription : Main Function:

ETCR5000 is a comprehensive test instrument of multifunctional, intelligent, man-machine operation simple. Comprehensive analysis and diagnosis all the voltage, current, power, electrical energy, harmonic, phase and other electric parameters. 4 channel current and 4 channel voltage measurement, simultaneously capturing and recording electric parameters and waveform, to provide with all the power quality information for working. Line voltage:Below 600V.

Technical Specifications Power supply:Rechargeable lithium-ion battery packs 9.6V, backup charger. Working Current:about 590mA, continuous working 8hours. Display mode:LCD color screen, 640dots × 480dots, 5.6 inches, display field 116mm × 88mm Instrument Size:240mm×170mm×68 mm. CT Size:300F Flexible Coil Current Sensor (with Integrator) : Ф300mm. Line Voltage:1.0V2000V. Phase Voltage:1.0V1000V Current:300F Flexible Coil Current Sensor (with Integrator) : 10A 6000A; Frequency:40Hz70Hz. Electricity Energy Parameter:W, VA, Var, PF, DPF, cos, tan. Energy parameters:Wh, Varh, Vah. Harmonic Wave:Yes, 0 - 50 times Total harmonic distortion:Yes, 0 - 50 times, each phase Expert Mode:Yes. Transient Record Groups:150 groups Voltage Flicker:Yes Start Current Mode:Yes, 100 seconds Three-phases Unbalance:Yes Record:300 days (record 20 parameters simultaneously, every 5 seconds record 1 point) Min/Max Recorded Value:Yes, the max min value can be measured for a certain time Alarm:40 different types of parameter selection, 12800 group alarm logs Peak:Yes. Phasor Diagram Display:Automatic Screenshot Capacity:60PCS Communication Interface:USB.ProductSiteLaunchDate : 2021-12-20T09:01:17.651Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 46171600
