Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : UNI-T
BulletPoint1 : The UT3510 Series Micro Ohm Meters contain 2 models: UT3513 and UT3516, which can be used in professional sorting function, and can judge HI/IN/LO for resistance. The result can be displayed on screen, indicated by buzzer and external I/O output.
BulletPoint2 : With enhanced PC remote-control instruction set and compatible with SCPI, the instrument can efficiently process remote-control and data collection function. 20kΩ/2MΩ MEASURING RANGE 60 times/s MAX. TEST RATE HANDLER，USB,RS-232 CONNECTIVITY ½ 2U SIZE 4.3'' TFT LCD DISPLAY
BulletPoint3 : 4.3 inch LCD screen display 4.3 inch LCD screen display 0.05% accuracy, with 20000 readings UT3513 resistance test range: 1μΩ~20kΩ UT3516 resistance test range: 1μΩ~2MΩ
BulletPoint4 : Range mode The instrument can realize automatic, manual, and nominal range test modes Optional test r speed Three test speeds: Slow speed: 3 times/sec. Medium speed: 18 times/sec. Fast: 60 times/sec.
BulletPoint5 : File management, saving and browsing data For the measured display value, it can be quickly browsed on the screen of the instrument after manual saving. File management allows users to save settings to 10 files, which is easy to read when starting up or changing specifications.
BulletPoint6 : DC low resistance test meters four wires test transformer motor windingTwo measurement modes, automatic measurement mode: test current can be selected automatically according to the load. Manual measurement mode: 10A, 5A, 1A, 100mA, 10mA, 1mA test current gear can be selected.
Color : Multicolored
Hazmat1 : UN1993
IncludedComponents : UT3513

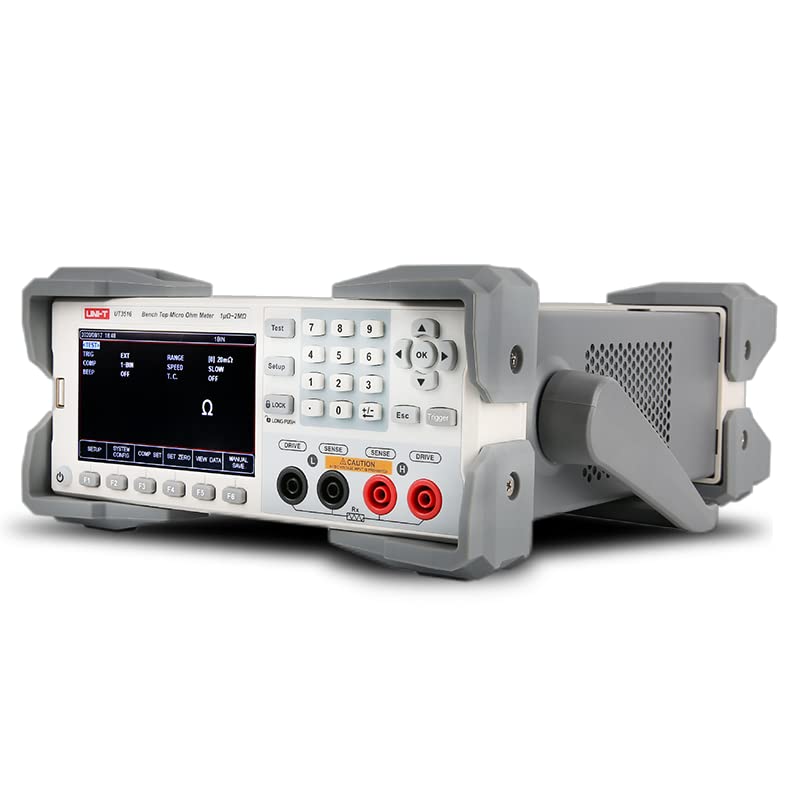

ItemName : UNI-T UNI-Trend UT3513 UT3516 Micro Ohm Meter Digital DC Resistance Tester 1u-2M ohm Milliohmmeter Ohmmeter Micro Resistance Test(UT3513)
ItemPackageDimensions_Height : 130 millimeters
ItemPackageDimensions_Length : 200 millimeters
ItemPackageDimensions_Width : 120 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : UNI-Trend
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : +-0.1%
MeasurementType : Ohmmeter
ModelName : Akozonnqpe8y1k7o
ModelNumber : HY-UT3513
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : HY-UT3513
Pattern : HY-UT3513
PowerSourceType : Battery Powered
ProductDescription : UT3510 SERIES Micro Ohm Meters

▽ The UT3510 Series Micro Ohm Meters contain 2 models: UT3513 and UT3516, which can be used in professional sorting function, and can judge HI/IN/LO for resistance.

▽The result can be displayed on screen, indicated by buzzer and external I/O output. With enhanced PC remote-control instruction set and compatible

▽ 4.3 inch LCD screen display

▽ 0.05% accuracy, with 20000 readings

▽ UT3513 resistance test range: 1μΩ~20kΩ

▽ UT3516 resistance test range: 1μΩ~2MΩ

▽ Range mode

▽ The instrument can realize automatic, manual, and nominal range test modes Optional test r speed

▽ Three test speeds:

▽ Slow speed: 3 times/sec.

▽ Medium speed: 18 times/sec.

▽ Fast: 60 times/sec.

▽ File management, saving and browsing data

▽ For the measured display value, it can be quickly browsed on the screen of the instrument after manual saving. File management allows users to save settings to 10 files, which is easy to read when starting up or changing specifications.

▽ Comparator function

▽ UT3516 has 6-gear sorting function, and UT3513 has 1 set of comparator functions. Built-in 10-level comparator output (UT3516): 6 qualified files (BIN1~BIN6), 3 unqualified files (NG, NG LO, NG HI, and 1 total qualified file (OK).

▽ Three ways to select the sound: off, qualified, unqualified Comparison method: direct reading comparison, absolute value tolerance, percentage tolerance.

▽ Configure rich interfaces RS-232/RS-485 interface:

▽ Use SCPI and Modbus RTU protocols to communicate with computers, PLCs or WINCE devices to efficiently complete remote control and data acquisition functions.

▽USB Device:It can simplify the communication between the computer and the instrumen
ProductSiteLaunchDate : 2023-08-06T13:36:28.673Z
Size : UT3513
SpecificationMet1 : CE
SpecificationMet2 : UKCA
SpecificationMet3 : RoHS
SpecificationMet4 : ISO 9001
Style : Ohm Meter
SupplierDeclaredDgHzRegulation : transportation
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41113600
Wattage : 5 watts
