Specification
Brand : VTSYIQI
BulletPoint : Simple resistance box 0-9999 ohm advanced physics and electricity teaching instrument variable decimal resistance meter
BulletPoint1 : ★Suitable for all kinds of high, middle and low resistor
BulletPoint2 : ★Contact resistance of the switches
BulletPoint3 : ★Contact resistance of all kinds of connector
BulletPoint4 : ★Resistance of motor and transformer windings
BulletPoint5 : ★Enamel-insulated wire resistance relay/switch connector contacts PCB patterns chip inductor DC resistance Wire Resistance Car,ship and plane fasten or secure resistance
Color : GREY
ExternallyAssignedProductIdentifier : 7443493491000
IncludedComponents : 1

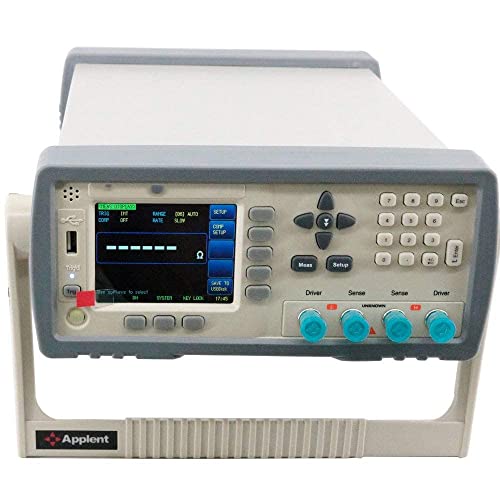

ItemName : VTSYIQI Digital Micro Ohm Meter DC Resistance Tester with Range 1μΩ to 30KΩ 0.1% Accuracy 30000 Readings Display USB Software
ItemPackageDimensions_Height : 25 centimeters
ItemPackageDimensions_Length : 45 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : ohmmeters
Manufacturer : VTSYIQI202404161058VTSYIQI
Material : copper
MeasurementAccuracy : 0.1%
MinimumOperatingVoltage : 60 volts
ModelName : ZIZEVunth2xw308
ModelNumber : VTSYIQI202404161058VTSYIQI
NumberOfItems : 1
PartNumber : VTSYIQI202404161058VTSYIQI
PowerSourceType : Battery Powered
ProductDescription : Description
DC Resistance Meter features a high-performance ARM microprocessor control and high-density SMD placement process with 0.1% accuracy and a measurement range of 1μΩ to 30KΩ. The resistance value is displayed in 5 digits with 30000 readings. It is suitable for relay contact resistance, connector plug resistance, wire resistance, printed circuit board wiring and soldering hole resistance. AT516L comes standard with RS232 communication interface and supports SCPI protocol and Modbus protocol. Modbus has become the national standard GB/T19582-2008) applied to the automatic sorting system to complete the automatic pipeline test. It can be conveniently used for PLC communication control to realize automatic operation on the production line.

Feature
Beep alarm
Comparator sorting
Compatible with SCPI command set
Keyboard lock function
Data hold function

Specification
Parameter:DC resistance
Accuracy:0.1%
Measurement Range:1μΩ～30KΩ
Measurement current:I-max:<1A
Range :7 Automatic or Manual
Speed :12 times/second，2 times/second
Display :Direct reading, ΔABS, Δ% and sorting results
Display Max :30,000
Adjustment :Short-circuit Zero-Adjust for each range
Comparator :1 group comparator
Trigger :Internal ,Manual, Remote
Interface :RS232C Interface
Temperature compensation :Accuracy: 0.2℃ Temperature range: 0 ~ 80℃
Method :
4 terminal shielding (2 check terminal and 2 driving terminal) and external shielding ground section
Voltage: 198VAC~240VAC Frequency: 50/60Hz Max Power: 15VA
Outside (mm）：264 (width)x107(height)x350 (depth) Inside (mm)：216(width)x88(height)x323(depth) 4kg
ATL501A Kelvin clip ATL108: 232 communication cable
ATL620: Meter Resistance Four-terminal Clamp Fixture
True color TFT-LCD display Data hold function Chinese and English menu
