Specification
Brand : LYSZHANXING
BulletPoint : Oscilloscope Probes
BulletPoint1 : This oscilloscope demo board is well-suited for educational purposes and serves as an excellent guide for everyone from beginners, complete with a comprehensive primer on oscilloscope fundamentals, to the more advanced seasoned users of test instrumentation.
BulletPoint2 : The Pico Technology oscilloscope training and demo board is a versatile tool designed to showcase and demonstrate the capabilities of your (mixed signal) oscilloscope. Included with the board is a comprehensive user manual that guides you through a series of exercises that will increase the user's problem-solving skills on complex real-world signals.
BulletPoint3 : The end goal being to build confidence with the oscilloscope, expand knowledge of the full capability of the instrument and reduce time to insight when working with complex designs and debug work.
BulletPoint4 : Teaching tool which can be used as a quick start guide with any manufacturers of oscilloscopes to minimise familiarisation / learning time involved with using a new oscilloscope.
BulletPoint5 : Two configuration switches for selecting waveform type, speeds, serial interfaces and other parameters. Built-in function / waveform generator (0.2 Hz to 10 kHz in 16 steps) for generation of sine, square, triangle, ramp and many other test signals.
BulletPoint6 : Generation of common serial protocols such as SPI, I2C, UART, CAN, CAN-FD, LIN, Manchester and parallel bus interface. Advanced triggering methodology and fundamentals. RF test track with 450 ps rise time (RF and termination demo on PCB’s).
BulletPoint7 : The Pico demo board offers a diverse range of signals and experiments, enabling users to explore the entire spectrum of mixed-signal oscilloscope capabilities in a safe, repeatable environment. Designed for use with any oscilloscope manufacturer, not just Pico USB oscilloscopes, it's the perfect teaching and learning tool for oscilloscope users across the board.
BulletPoint8 : Equipped with a function generator via a 10-bit DAC at 200 kSa/s. This function generator can produce a variety of waveforms and signals, making it invaluable for everyday development work such as Sine, square, triangle and ramps in the frequency range 0.2Hz to 10kHz (in 16 steps) and sweep, burst, AM modulation, PWM. Furthermore noise / errors can be injected to simulate real-world environments.
Color : 100A 75mV
ExternallyAssignedProductIdentifier : 7310411643615
IncludedComponents : TA560 - Mixed Signal Oscilloscope Training and Demo Board
ItemName : 60A 75A 100A 150A 200A 250A 75mV External Shunt FL-2 Current Meter Measure Shunt Resistors for Digital Ammeter(100A 75mV)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : oscilloscope-accessories
Manufacturer : LYSZHANXING
MeasurementAccuracy : 1
ModelName : Jeanokofx897sqz5a
ModelNumber : LYSZHANXING
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : LYSZHANXING
ProductDescription : Oscilloscope Probes

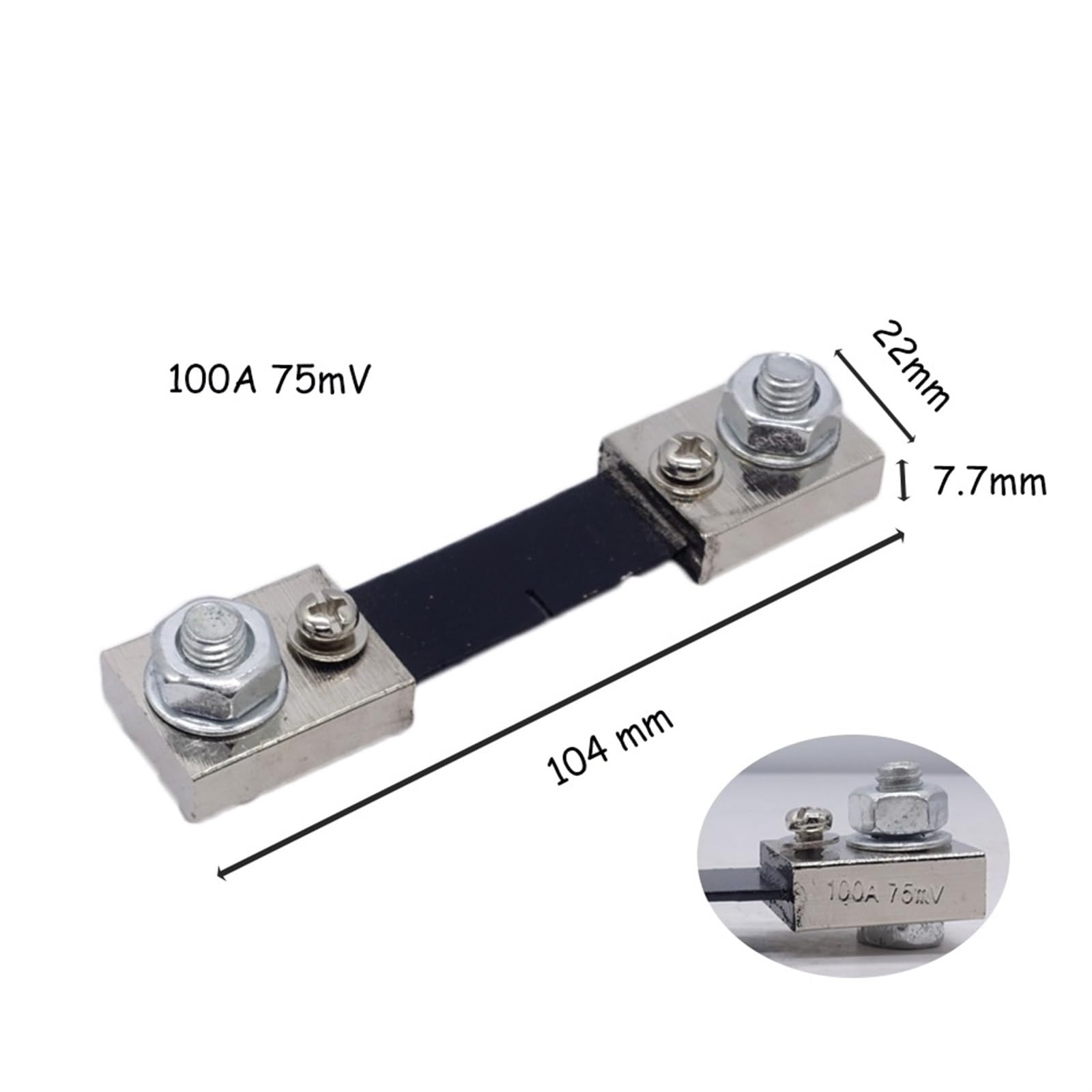

60A 75A 100A 150A 200A 250A 75mV External Shunt FL-2 Current Meter Measure Shunt Resistors For Digital Ammeter
Product Description
Product Name: DC Shunt
Model: FL-2
Material: Metal, Plastic
Accuracy: 0.5 Class
Current:60A 75A 100A 150A 200A 250A
Voltage Drop: 75mV
Package Included:
1 x External Shunt FL-2 Current Measure Shunt Resistors Current Meter Shunt For Ammeter Amp Meter
ProductSiteLaunchDate : 2024-06-22T10:01:03.779Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41113700
