Specification
Brand : TOOLTOP
BulletPoint1 : CTB series current probe is a kind of current probe which can measure DC and AC at the same time
BulletPoint2 : This clamp type current sensor applied high performance flux gate technology
BulletPoint3 : High precision 0.2%, good frequency and temperature characteristics and high bandwidth
BulletPoint4 : Max. diameter 50mm, max. measurable current up to 2000A; 4 Type wiring diagram for your choose
BulletPoint5 : With the power analyzer, it can realize power analyze in the high accuracy current measurement
Color : Multicolored
IncludedComponents : cybertek-CTB20A

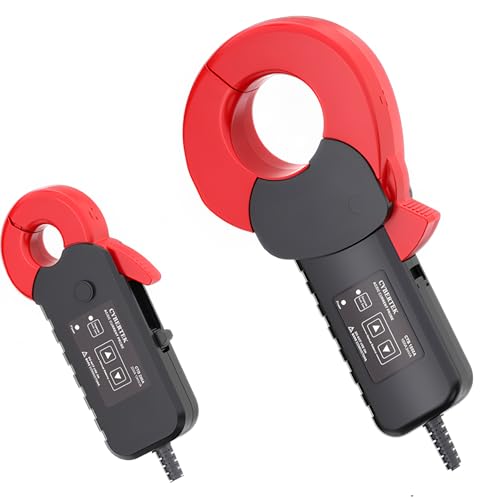

ItemName : CYBERTEK Zhiyong Oscilloscope Probe CTB20A/B/C/D Power Analyzer Probe High Accuracy Current Probe AC/DC 20A Bandwidth 1MHz Diameter 20 mm 4 Type Interface(CTB20A 20A Type A)
ItemPackageDimensions_Height : 20 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : multi-testers
Manufacturer : TOOLTOP
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : 0.5%
ModelNumber : TT-cybertek-CTB20A
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : TT-cybertek-CTB20A
ProductDescription : AC/DC High Accuracy Current Probe
 CTB20A/B/C/D (20A/DC~1MHz)
 CTB200A/B/C/D (200A/DC~600kHz)
 CTB501A/B/C/D (500A/DC~500kHz)
 CTB500A/B/C/D (500A/DC~100kHz)
 CTB1000A /B/C/D(1000A/DC~50kHz)
 CTB2000A/B/C/D(2000A/DC~50kHz)
CTB series current probe is a kind of current probe which can measure DC and AC at the same time.
This clamp type current sensor applied high performance flux gate technology, with characteristics including high precision of typical value 0.2%, good frequency and temperature characteristics and high bandwidth.
CTB series is able to work in temperature range of -40~85℃and measure conductor of maximum diameter 50mm, maximum measurable current up to 2000A.
CTBxxxA need to work with CTB104/A, while the CTBxxxB need to be powered by 12V adaptor, and CTBxxxC need to be powered by 12V LEMO connector to adapt the power supply connector of certain power analyzer without other power supply.
The CTBxxxD applies 12-pin aviation connector, which can adapt to the power supply connector of some power analyzer.
With the power analyzer, it can realize power analyze in the high accuracy current measurement.
2. Application
 Power supply (Switch type and linear type) design
 Neo energy, electric vehicle design
 Variable frequency household appliance
 Electric industrial experiment
 Inverter/transformer design
 Electronic Ballast
 Industrial/consumer electronics design
 Engine drive design
 Power electronics and electrical drive experiment
 Traffic transport system (Electric mobile, locomotive, avionic device) design
ProductSiteLaunchDate : 2025-05-02T09:56:26.431Z
Size : CTB20A
UnspscCode : 46171600
