Specification
Brand : Jectse
BulletPoint1 : Multiple Functions: Upgraded handheld oscilloscope, increased measurement range, and added mathematical operations, cursor measurement, persistent mode, XY mode functions, supporting waveform image storage and export
BulletPoint2 : 2 Channel Oscilloscope: Supports 50MHz bandwidth, 250MS/s sampling rate, 1Kpts recording depth, automatic measurement function, maximum voltage of 400V, vertical sensitivity of 10mV/div-10V/div
BulletPoint3 : 4.5 Digit 19999 Counts Multimeter: AC voltage range 0-750 V, DC voltage range 0-99.9 V, DC AC current range 0-9.999 A, resistive value range 0-19.99MΩ, capacitance range 0-99.99 mF, supports continuity measurement
BulletPoint4 : Generator: The waveform output is up to 50kHz, with 1Hz step, and can output 13 types of waveforms; One click save and filter function, connect to PC through Type C to upload saved images, display reference and measurement waveforms
BulletPoint5 : Other Functions: The oscilloscope adopts FPGA+MCU+ADC hardware architecture, with high voltage guard module; Equipped with a 2.8 inch LCD display screen, built in 3000mAh li battery, standby time up to 6 hours, support 5V 1A Type C charging
Color : DP700
Hazmat1 : LITHIUM ION BATTERIES PACKED WITH EQUIPMENT
Hazmat10 : CA_SmallLithiumIonBatteryWithEquipment
Hazmat11 : CN_SmallLithiumIonBatteryWithEquipment
Hazmat12 : IT_SmallLithiumIonBatteryWithEquipment
Hazmat13 : ES_SmallLithiumIonBatteryWithEquipment
Hazmat14 : IN_SmallLithiumIonBatteryWithEquipment
Hazmat15 : MX_SmallLithiumIonBatteryWithEquipment
Hazmat16 : SG_SmallLithiumIonBatteryWithEquipment
Hazmat17 : AU_SmallLithiumIonBatteryWithEquipment
Hazmat18 : BR_SmallLithiumIonBatteryWithEquipment
Hazmat19 : TR_SmallLithiumIonBatteryWithEquipment
Hazmat2 : UN3481
Hazmat20 : AE_SmallLithiumIonBatteryWithEquipment
Hazmat21 : SA_SmallLithiumIonBatteryWithEquipment
Hazmat22 : EG_SmallLithiumIonBatteryWithEquipment
Hazmat23 : NL_SmallLithiumIonBatteryWithEquipment
Hazmat24 : SE_SmallLithiumIonBatteryWithEquipment
Hazmat25 : PL_SmallLithiumIonBatteryWithEquipment
Hazmat26 : BE_SmallLithiumIonBatteryWithEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryWithEquipment
Hazmat28 : IE_SmallLithiumIonBatteryWithEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : US_SmallLithiumIonBatteryWithEquipment
Hazmat6 : GB_SmallLithiumIonBatteryWithEquipment
Hazmat7 : DE_SmallLithiumIonBatteryWithEquipment
Hazmat8 : FR_SmallLithiumIonBatteryWithEquipment
Hazmat9 : JP_SmallLithiumIonBatteryWithEquipment
IncludedComponents : No

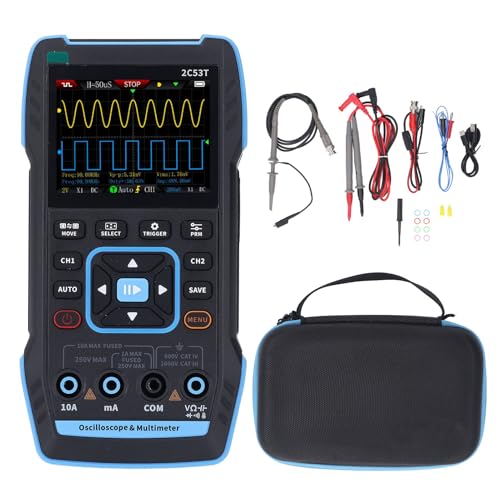

ItemName : Handheld Oscilloscope, Portable Oscilloscope Multimeter 50MHz Bandwidth 250MS s Sampling Rate DDS Generator Digital Oscilloscope Kit 19999 Counts
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 21 centimeters
ItemPackageDimensions_Width : 14 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : Jectse
MeasurementAccuracy : 0.1mm
ModelName : Jectser86oca7ybi
ModelNumber : Jectser86oca7ybi
NumberOfItems : 1
PackageLevel : unit
PartNumber : Jectser86oca7ybi
ProductDescription : Specification:
Item Type: Handheld Oscilloscope
Battery: 1 x Rechargeable Li Battery 3000mAh (Built in)
Oscilloscope Parameters:
Channels: 2 Channels
Sampling Rate: 250MS/s
Analog Bandwidth: 50 MHz ( Channel Independent 50M)
Persistence: OFF, 500ms, 1s, ∞
Input Impedance: 1MΩ
Time Base Range: 10ns-20s
Vertical Sensitivity: 10mV/div-10V/div (X1 Gears)
Maximum Measurement Voltage: ±400V
Trigger Mode: Auto, Normal, Single
Trigger Type: Rising Edges, Falling Edges
Display Mode: YT, Rolling, X-Y
Coupling: AC, DC
Calculation: 8 Basic Operations + FFT Calculation
Export Waveform Image: Support
Waveform Screenshot Save: Support
Cursor Measurement: Support
Function Generator Parameters:
Channel: Single Channel
Frequency: 1Hz-50KHz
Amplitude: 0.1-3V
Multimeter Parameters:
Diode: Support
On Off: Support
Live Wire Detection: Support
Function Range Accuracy
DC Voltage 1.9999V/19.999V/199.99V/1000V ±(0.5%+3)
AC Voltage 1.9999V/19.999V/199.99V/750V ±(1%+3)
DC Current 19.999mA/199.99mA/1.9999A/9.999A ±(1.2%+3)
AC Current 19.999mA/199.99mA/1.9999A/9.999A ±(1.5%+3)
Resistive Value 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ ±(0.5%+3)
1.9999KΩ/199.99Ω ±(2%+3)
Capacitance 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF ±(2.0%+5)
9.999mF/99.99mF ±(5.0%+20)
Temperature -55-1300℃, -67-2372℉ ±(2.5%+5)

How to Use:
Open the package and take out the product to use

Package List:
1 x Main Unit
1 x 10X Probe
11 x 10X Probe Accessory
1 x Temperature Probe
1 x Red Black Crocodile Clip Probe
2 x Test Pens
1 x USB Cable
1 x Storage Bag
2 x User Manual
ProductSiteLaunchDate : 2025-01-16T11:52:17.122Z
Size : C
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41113600
