Specification
Brand : AOPUTTRIVER
BulletPoint1 : Fast Sampling Digital Oscilloscope: 500K Miniature Oscilloscope has a real-time sampling rate of 2.5 MS/s, a bandwidth of 500 KHz, a voltage range of X1: ±40V (Vpp: 80V), X10：±400V (Vpp：800V), a calibrated square-wave frequency of 1kHz, and a duty cycle of 50%

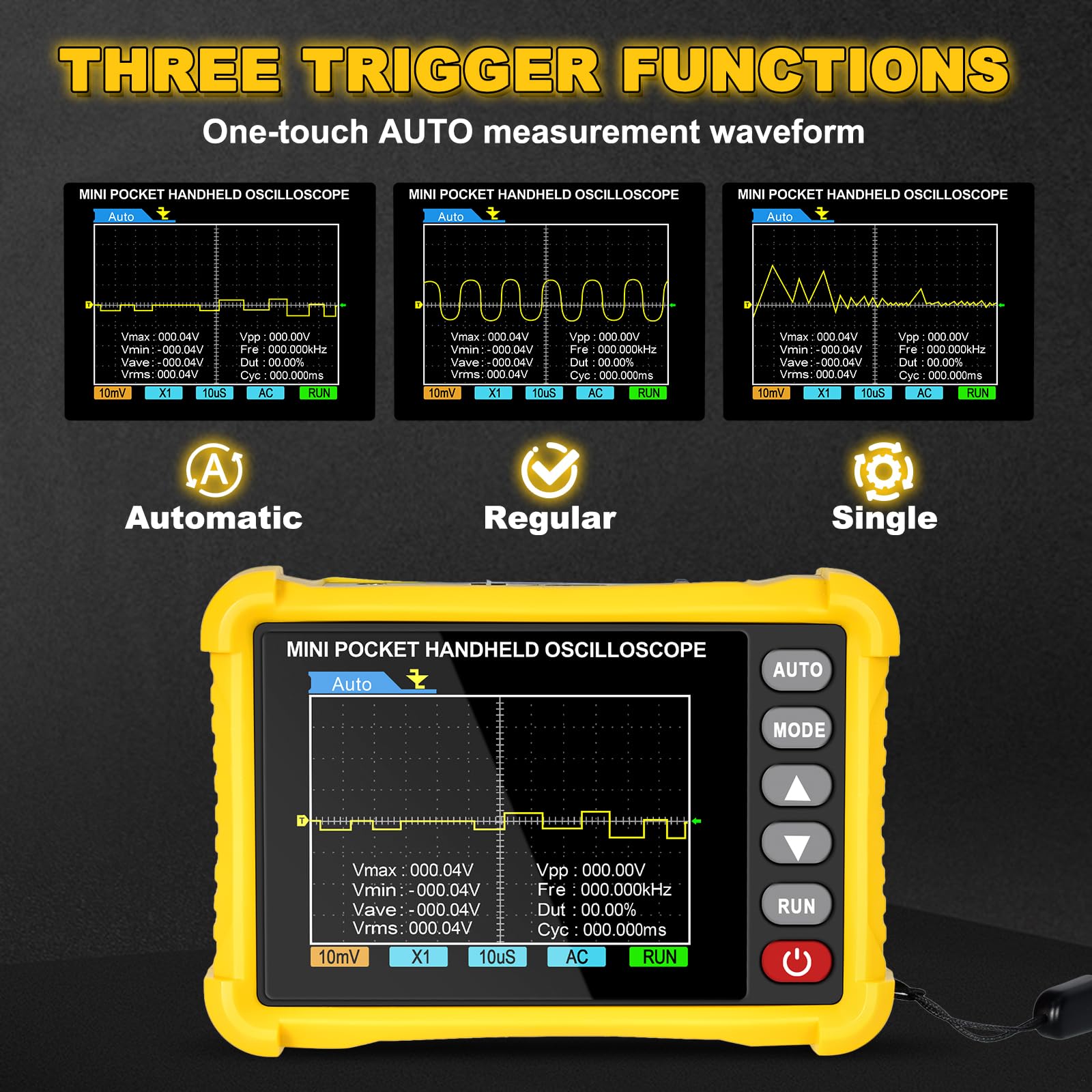

BulletPoint2 : Advanced Triggering and Display: Complete triggering functions (single/regular/automatic) work well with both periodic analog signals and non-periodic digital signals, and this digital oscilloscope comes with a 2.8-inch high-definition LCD display with a resolution of 320*240 for easy viewing
BulletPoint3 : Simplified Measurement:Equipped with an efficient one-touch automatic measurement function that displays the measured waveform without tedious adjustments. Simply press the AUTO key to automatically recognize the waveform type, adjust the waveform amplitude and time base, and accurately display the matched waveform on the screen
BulletPoint4 : Long-life battery:The oscilloscope has a built-in 400 mAh high-quality lithium battery, which can be used continuously for about 3 hours after a full charge. the Type-C interface supports data transfer and charging, and firmware upgrade.
BulletPoint5 : Portable Handheld Oscilloscope:Measuring 103x73x25mm, this oscilloscope is lightweight and easy to carry. No assembly process is required as it comes fully assembled. Ideal for maintenance industry and R&D education industry
Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : CN_SmallLithiumIonBatteryInEquipment
Hazmat11 : DE_SmallLithiumIonBatteryInEquipment
Hazmat12 : EG_SmallLithiumIonBatteryInEquipment
Hazmat13 : ES_SmallLithiumIonBatteryInEquipment
Hazmat14 : FR_SmallLithiumIonBatteryInEquipment
Hazmat15 : GB_SmallLithiumIonBatteryInEquipment
Hazmat16 : IE_SmallLithiumIonBatteryInEquipment
Hazmat17 : IN_SmallLithiumIonBatteryInEquipment
Hazmat18 : IT_SmallLithiumIonBatteryInEquipment
Hazmat19 : JP_SmallLithiumIonBatteryInEquipment
Hazmat2 : UN3481
Hazmat20 : MX_SmallLithiumIonBatteryInEquipment
Hazmat21 : NL_SmallLithiumIonBatteryInEquipment
Hazmat22 : PL_SmallLithiumIonBatteryInEquipment
Hazmat23 : SA_SmallLithiumIonBatteryInEquipment
Hazmat24 : SE_SmallLithiumIonBatteryInEquipment
Hazmat25 : SG_SmallLithiumIonBatteryInEquipment
Hazmat26 : TR_SmallLithiumIonBatteryInEquipment
Hazmat27 : US_SmallLithiumIonBatteryInEquipment
Hazmat28 : ZA_SmallLithiumIonBatteryInEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryInEquipment
Hazmat6 : AU_SmallLithiumIonBatteryInEquipment
Hazmat7 : BE_SmallLithiumIonBatteryInEquipment
Hazmat8 : BR_SmallLithiumIonBatteryInEquipment
Hazmat9 : CA_SmallLithiumIonBatteryInEquipment
IncludedComponents : Oscilloscope
ItemName : Handheld Oscilloscopes AP-500K Oscilloscope - 2.8" TFT Digital Oscilloscope Portable Automotive Oscilloscope, 2.5MS/s High Sampling Rate, 500KHz Bandwidth, Trigger Function Auto/Nomal/Single
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 8 inches
ItemPackageDimensions_Width : 6 inches
ItemTypeKeyword : science-lab-oscilloscopes
Manufacturer : AOPUTTRIVER
ModelNumber : Tisstingqufbov286g
NumberOfItems : 1
PartNumber : AP-500K
ProductDescription :

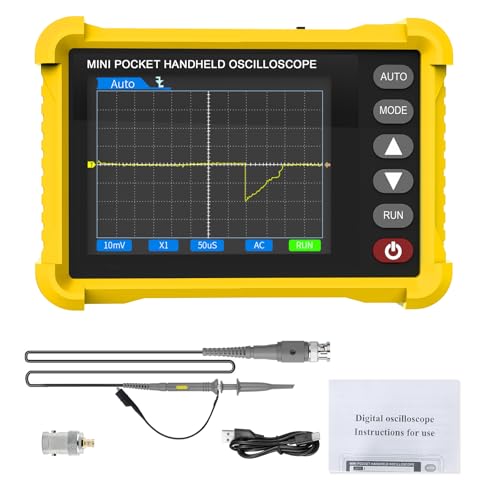

The AP-500K is a highly practical, cost-effective, cost-effective handheld oscilloscope aimed at the maintenance industry and R&D education industry crowd. The oscilloscope has a real-time sampling rate of 2.5MS/s, 500kHz bandwidth, and a full range of triggering functions (single, regular, and automatic). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure voltages up to ±400V. It is equipped with highly efficient one-touch AUTO measurement, which can display the measured waveforms without cumbersome adjustments. Equipped with 2.8-inch 320 * 240 resolution high-definition LCD screen, built-in 400mAh high-quality lithium battery, fully charged can be used continuously for about 3 hours

Sampling rate:2.5MS/s

Coupling mode:AC/DC

Bandwidth:500kHz

Display:2.8 inch;PPI:320*240

Vertical Sensitivity:10mV/Div-10V/Div(Progressive by 1-2-5)

USB charging:5V/1A

Time base range:10us/Div-50s/Div(in 1-2-5 way progression)

Li-ion battery capacity:400mAh

Voltage range:X1: ±40V(Vpp: 80V)

                        X10: ±400V(Vpp: 800V)

Calibration square wave:Frequency:1kHz;Duty cycle:50%

Size:103×73×25mm

Trigger mode:automatic/regular/single

Weight:100g
