Specification
AutomotiveFitType : vehicle_specific_fit
Brand : DS18
BulletPoint : D Series 4-Channel 2200W Amplifier
BulletPoint1 : Powerful Sound - DS18’s FRP-3.5K redefines car audio with exceptional power and quality. Its compact design maximizes power while minimizing energy usage. Variable crossover filters offer precise sound customization for Bass, Mids, or Highs, ensuring tailored performance
BulletPoint2 : Advanced Durability - FRP-3.5K is built with advanced tech, surface mount components, and a Reliable Four Layer Trace PCB Design for enhanced durability. Protective coating prevents moisture corrosion, while bonded components offer vibration protection, ensuring consistent, high-quality sound in any conditions
BulletPoint3 : Full Protection - Equipped with power, protection, and clipping LED indicators: the FRP-3.5K provides real-time feedback on its status. You'll have peace of mind knowing that it features short circuit thermal, DC offset, and high/low voltage protection to safeguard both your amplifier and your vehicle
BulletPoint4 : Powerful Versatility - DS18’s FRP-3.5K outputs 1000W RMS @ 4-Ohm; 2000W RMS @ 2-Ohm; 3500W RMS @ 1-Ohm; and 4000W RMS @ 1-Ohm (BURST) - perfect power settings to supercharge any vehicle
BulletPoint5 : Effortless Integration - Installation is a breeze thanks to the FRP-3.5K’s compact size and Tiffany RCA Terminals. Coming in three different colors (blue, titanium, or red) the FRP-3.5K will fit right into any system. Due to the high amount of amperage required to fully power this amplifier, DS18 recommends the use of dual input power and ground terminals
Color : Blue
CompatibleWithVehicleType : UTV
ExternallyAssignedProductIdentifier : 7898713130311
ExternallyAssignedProductIdentifier1 : 810097264946
ExternallyAssignedProductIdentifier2 : 0810097264946
GpsrSafetyAttestation : 1
IncludedComponents : Remote Level Knob Control

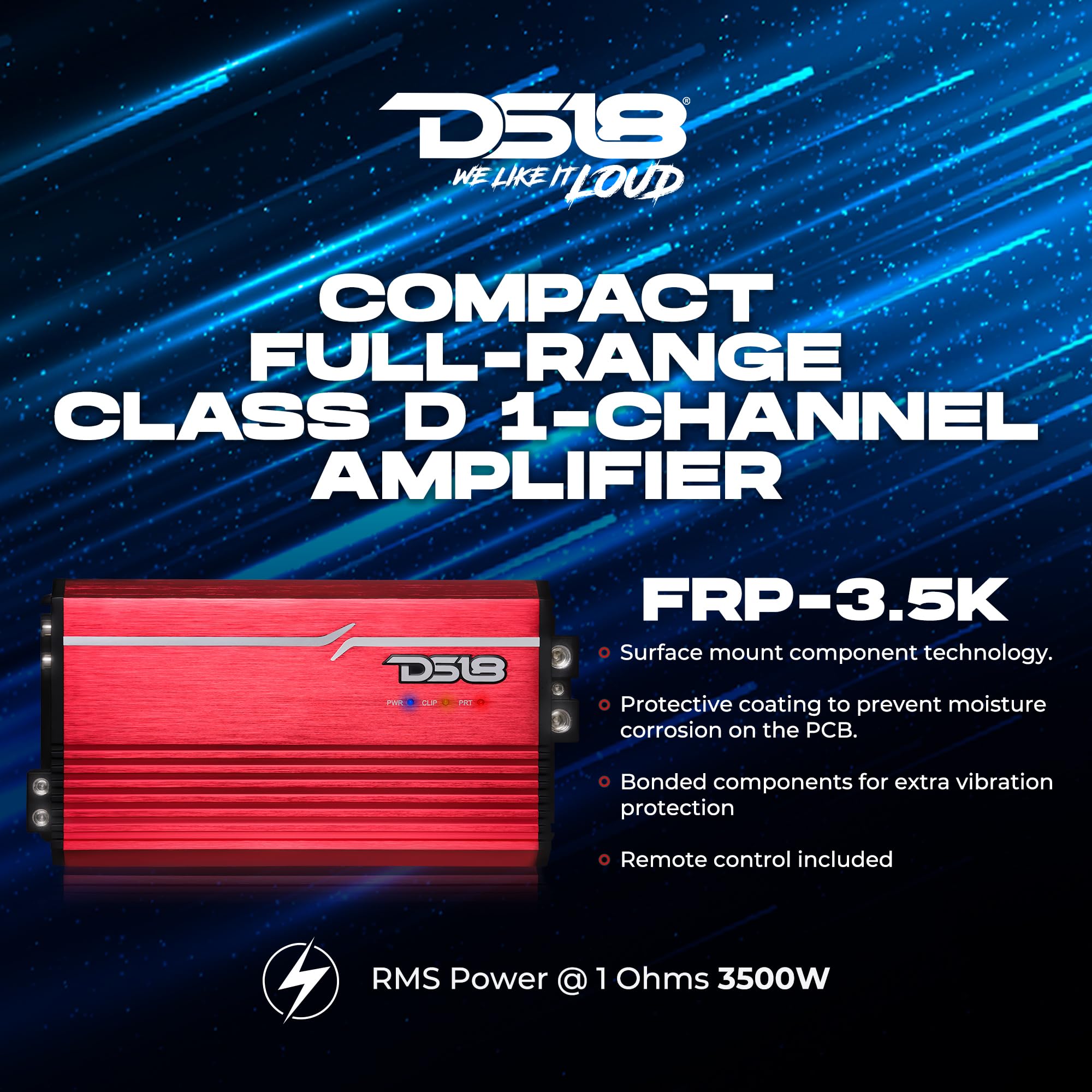

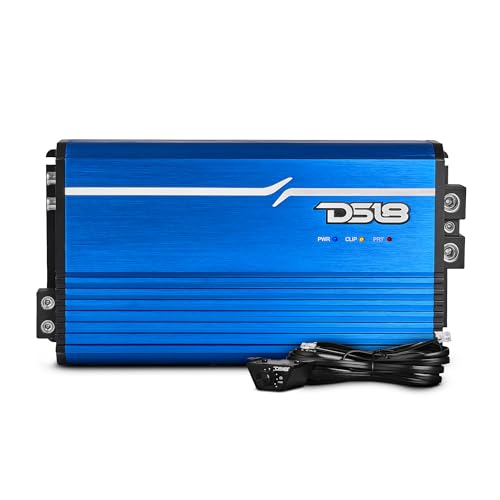

ItemName : DS18 FRP-3.5K/BL Compact Full-Range Class D 1-Channel Amplifier 3,500 Watts RMS @ 1-Ohm, High Efficiency, Monoblock Amplifier Great for Bass, Mids, or Highs, Certified Dyno Results, Blue
ItemPackageDimensions_Height : 7 inches
ItemPackageDimensions_Length : 3.5 inches
ItemPackageDimensions_Width : 15.5 inches
ItemPackageQuantity : 1
ItemShape : Aerodynamic
ItemTypeKeyword : vehicle-multi-channel-amplifiers
Manufacturer : DS18
Material : Aluminum
MaximumSupplyVoltage : 16 volts_of_direct_current
MinimumSupplyVoltage : 12 volts
ModelName : 1200.41OHMORANGE
ModelNumber : FRP-3.5K/BL
MountingType : Surface Mount
NumberOfChannels : 1
NumberOfItems : 1
OutputPower : 3500 watts
PackageLevel : unit
PackageTypeName : box
PartNumber : FRP-3.5K/BL
ProductDescription :

SPECS

SKU FRP-3.5K/TI
RMS Power @ 4 ohms 1000W
RMS Power @ 2 ohms 2000W
RMS Power @ 1 ohm 3500W
MAX Power @ 1 ohm (Burst) 4000W


AUDIO

Frequency Response 10Hz-20KHz
Signal to Noise Ratio 83dB
Efficiency @ 4ohm 80.9%
Damping Factor 90
Input Impedance 10KΩ
Total Harmonic Distortion (THD) 0.5%
Low Level Input Range 400mv-3.6V
High Level Input No
Selectable X-Over Fixed Band-Pass
X-Over Filter Range HP: 10Hz-2KHz / LP: 40Hz-20KHz
Bass Boost Range 0-12dB
Bass Boost Frequency 50Hz
Phase Selector No


FEATURES

Amplifier Class Digital
Amplifier Type Full-Range Monoblock
Number of Channels 1CH
Minimum Impedance 1Ω
Led Indicator Power / Protect / Clipping
Power Input Terminal Size 0GA
Fuse Size (Recommended) 300A
Remote Level Control Yes (Volmeter Optional)
Cooling Fan Yes (Smart Cooling x 2)
Voltmeter No
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes
Clipping Protection Yes
Body Color / Finish Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications Yes
Stable/Reliable Four Layers Traces PCB Design Yes
Surface Mount Component Technology Yes
Quality Control Verification using Audio Precision Instruments Yes
Tiffany RCA Terminal Yes
LED Clip Indicator Yes
Metal Knobs with Click Steps Yes
Remote Level Control with Clip Indicator Included
Remote Level Control with Clip Indicator and Voltmeter Optional


MEASUREMENT

Overall Length 10.2" / 260mm
Overall Width 5.5" / 140mm
Overall Height 2.36" / 60mm
Heatsink Length 9" / 228mm
Gross Single Unit Weight 2.64kg

ProductSiteLaunchDate : 2024-03-29T12:27:26.360Z
SpecificationMet : CE
SpecificationMet1 : CE
SpecificationMet2 : FCC
SpecificationMet3 : RoHS
SportType : UTV Riding
StreetDate : 2022-07-12T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SupplyCurrent : 220 milliamps
SurroundSoundChannelConfiguration : 2
UnspscCode : 52161547
Voltage : 12 volts
WarrantyDescription : 12 Months
