Specification
AudioOutputMode : Mono
Brand : Audiosavings
BulletPoint1 : Package Includes: (1) JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V, 8 inputs(4) 2 Rockville WET-7020B 5.25" 70V Commercial Indoor/Outdoor Wall Speakers in Black. Features: JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier 4ohm/8ohm/70V/100V and 8 inputsFor Commercial and Industrial Use80W into 8 or 4 Ohm Loads10W Per Channel8 Input Channels, 2 Output ChannelUsable with 70 & 100V SystemsEuroblock Mic/Line & RCA InputsHi-Z & 27V Phantom Power Switches
BulletPoint10 : Optimized Crossover: Features a 12dB per octave crossover, providing a smooth transition between the woofer and tweeter for a cohesive and balanced audio output.
BulletPoint2 : Sleep Mode & 2 Auxiliary Outputs. Voice Activated Ducking & Priority Mute. Specifications: Maximum Output Power: 800 W per channel into 4 Ohms or 8 Ohms, 1 kHz, = 0.5% THD. Insertion Loss: 1 dB maximum for 70 and 100 V outputs. Continuous Power: 10 W per channel. Line Output Level: 5.0 V RMS into 10 kOhms. Input Sensitivity: To obtain full rated power at 8 Ohms (or 5 VRMS to line output). Mic Input: 3 mV RMS. Line Input: 775 mV RMS. RCA Input: 300 mV RMS
BulletPoint3 : Number of Channels: Input: 8, Output: 2.. Frequency Response: Measured at 2.83 V RMS into rated load impedance at any output. 4/8 Ohms Output: 20 Hz - 20 kHz, +/-2 dB. 70 V/100 V Outputs: 80 Hz - 15 kHz +/-2 dB. Line Out: 20 Hz - 20 kHz, +/-1 dB. Total Harmonic Distortion (THD): Measured at 2.83 V RMS into rated load impedance at any output. Power Amplifier Output: <0.5%, 20 Hz to 20 kHz. Line Output: 0.05% typical. Signal to Noise Ratio: > 90 dB
BulletPoint4 : Nominal Input Impedance: Mic: 400 Ohms. Line: 20 kOhms (balanced). RCA: 50 kOhms.. Minimum Load Impedance: Low Impedance Output: 4 Ohms. 70 V Output: 120 Ohms. 100 V Output: 240 Ohms.. Crosstalk: -70 dB @ 1 kHz. Controls: Front Panel: 8 x Input level rotary knobs. 2 x Output volume-attenuating knobs. 1 x Power switch. 2 x Bass potentiometers. 2 x Treble potentiometers. Rear Panel: 2 x Input-routing dip switches (including phantom and Hi-Z switches). 8 x Mic/Line selector switch
BulletPoint5 : 2 x Vox adjustment switches. Indicators: Front Panel: 8 x Input signal presence ring, green. 2 x Output volume ring, green. 1 x Power switch ring, green/blue. Connectors: Rear Panel: 1 x IEC power input. 2 x Aux out connection points. 6 x 3-pin euroblock connectors. 6 x 3-pin euroblock connectors. 2 x 5-pin euroblock connectors. 6 x Dual RCA input connectors. 2 x RJ45, remote volume. Operating Temperature / Humidity: 32 to 95 degreeF / 0 to 35 degreeC, 95% RH (non-condensing)
BulletPoint6 : Mounting Aid: Patented integral T-bar supports neighboring cut non-tegular ceiling tile. Restraint tab and hole for 2-cable code compliance (cables not incuded)
BulletPoint7 : Elegant Design: Offers a sophisticated, unobtrusive aesthetic with a paintable grille that blends seamlessly into your ceiling, preserving the visual flow of your space.
BulletPoint8 : Enhanced Listening Experience: Ideal for premium residential or commercial spaces, delivering clear, room-filling sound perfect for music, movies, and more.
BulletPoint9 : Durable Construction: Made with high-quality materials and components to ensure lasting performance and reliability.
Color : Black
CompatibleDevices : Smartphone
ConnectivityProtocol : Bluetooth
ConnectivityTechnology : RCA
ConnectivityTechnology1 : Bluetooth
ConnectivityTechnology2 : Optical
ConnectivityTechnology3 : USB
ConnectivityTechnology4 : RCA
ConnectivityTechnology5 : Auxiliary
ConnectorType : Aux
ControllerType : Corded electric
ControlMethod : remote
Department : unisex
ExternallyAssignedProductIdentifier1 : 0729305081131
ExternallyAssignedProductIdentifier2 : 729305081131
FrequencyResponse : 20 KHz
Impedance : 8 ohm
IncludedComponents : grille, enclosure, driver
IsWaterproof : FALSE

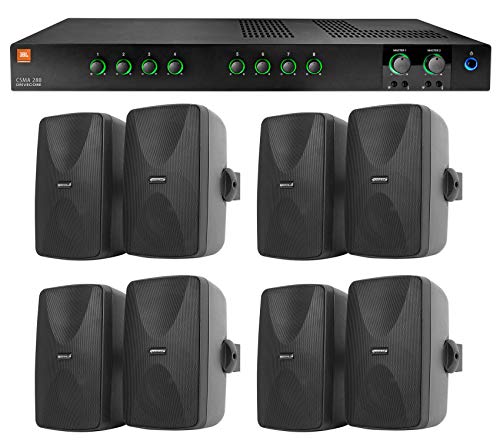

ItemName : Audiosavings Bundle: (1) JBL CSMA280 Commercial/Restaurant 2 x 80w Amplifier Bundle with (8) Rockville WET-7020B 5.25" 70V Commercial Indoor/Outdoor Wall Speakers (9 Items)
ItemPackageDimensions_Height : 5.3 inches
ItemPackageDimensions_Length : 20.8 inches
ItemPackageDimensions_Width : 16.4 inches
ItemPackageQuantity : 1
ItemTypeKeyword : ceiling-and-in-wall-home-speakers
Manufacturer : JBL
Material : Alloy Steel
Material1 : Acrylonitrile
Material2 : Aluminum
Material3 : Copper
ModelName : CSMA280+(8) WET-5B
ModelNumber : CSMA280+(8) WET-5B
MountingType : Wall Mount
NumberOfChannels : 6
NumberOfItems : 1
PartNumber : CSMA280+(8) WET-5B
PowerSourceType : Corded Electric
ProductDescription : Storage Temperature: -4 to 185 degreeF / -20 to 85 degreeC. Phantom Power: 27 VDC. AC Input: 100-240 VAC, 50/60 Hz. Dimensions (W x D x H): 17.2 x 11.9 x 1.7" / 436.9 x 302.3 x 43.2 mm. Weight: Approximately 11.9 lb / 5.4 kg. Features: Pair Rockville WET-7020B 5.25" 70V IPX55 Commercial Indoor/Outdoor Wall Speakers. 4-Way swivel bracket allows angle adjustments up, down, left, and right. IPX55 rating makes this perfect for outdoor use or indoor use. IPX55 means this can withstand jet streams spraying it from any angle without any damage. Rugged ABS cabinet is waterproof. Aluminum grill is waterproof and rustproof. Weather resistant. Powder coated steel mounting brackets that pass a 96 hour saltwater spray test. 5.25" Woofer with Polypropylene cone. 13mm PEI tweeter is very efficient and has great sound quality. Frequency Response: 60Hz - 20Khz. Sensitivity: 87dB. RMS Power: 40w (when using 8 ohm). Nominal impedance: 8 Ohm. Waterproof spring loaded terminals. Built in transformer supports 70V installations. Built in tap switch to easily select your 70V power. Color: Black. Weight: 4.16 Lbs each. Cabinet dimensions: 9.6" x 7.1" x 7.5". 70V Power Options: 20w. 15w. 10w. 5w. 2.5w. 8 Ohm power handling: 40w Designed for commercial and industrial use, the CSMA 280 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 80W of peak power with 10W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments. The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer.
ProductSiteLaunchDate : 2024-04-09T19:27:26.289Z
RecommendedUsesForProduct : Indoor/Outdoor
SpeakerAmplificationType : Passive
SpeakerConnectivity : RCA
SpeakerSize : 8 inches
SpeakersMaximumOutputPower : 240 watts
SpeakerType : In-wall
SpeakerType1 : Multi Room
SpeakerType2 : Surround Sound
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SurroundSoundChannelConfiguration : 2.0
UnitCount : 9
UnspscCode : 52161500
WarrantyDescription : 3 YEAR,Manufacturer
