Specification
AudioOutputMode : Mono
Brand : Audiosavings
BulletPoint1 : Package Includes: (5) Pair JBI CONTROL 14C/T 4" 25w 70v In-Ceiling Speakers For Restaurant/Bar/Cafe. Features: Components: 100 mm (4.0 in) high output driver with polypropylene coneand butyl rubber surround. 19 mm (0.75 in) soft-dome liquid-cooled tweeter. Blind-mount backcan for quick and easy install. Dual conduit/cable clamps. Combined 70V/100V and low impedance direct operation. 30 Watts at 8O nominal setting. 25W multi-tap at 70V/100V. 74 Hz - 20 kHz bandwidth with wide 120° coverage
BulletPoint2 : White or black (-BK). Specifications: Frequency Range (-10dB): 74 Hz - 20 kHz. Power Rating: IEC System Long-Term Ratings (low-Z direct): 60 Watts Continuous Program Power, 30 Watts Continuous Pink Noise (120W peak), 100 hr. Transformer Taps: 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only). Frequency Response (±3 dB): 100 Hz - 20 kHz. Sensitivity: 87 dB (1kHz - 16 kHz). Coverage Angle: 120° conical. Directivity Factor (Q): 7.6. Directivity Index (DI): 8.1 dB
BulletPoint3 : Maximum SPL (1m): 101 dB (low-impedance, 108 dB peak), 101 dB (top 70V/100V tap). Impedance: 8 ohms (in direct/bypass 8O setting). Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver. Drivers: LF Driver: 100 mm (4.0 in), HF Driver: 19 mm (3/4 in). Input Connectors: Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
BulletPoint4 : Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru. Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism. Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
BulletPoint5 : Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems. Dimensions: 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth). Ceiling Cutout Size: 170 mm (6.7 in) diameter (cardboard cutout template included)
Color : White
ConnectivityProtocol : Bluetooth
ConnectivityTechnology : Powerline
ControllerType : Remote Control
FrequencyResponse : 20 KHz
Impedance : 8 ohm
IsWaterproof : TRUE

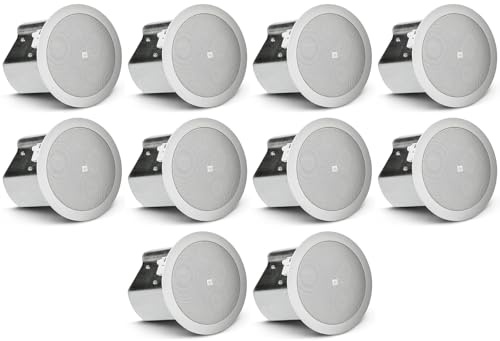

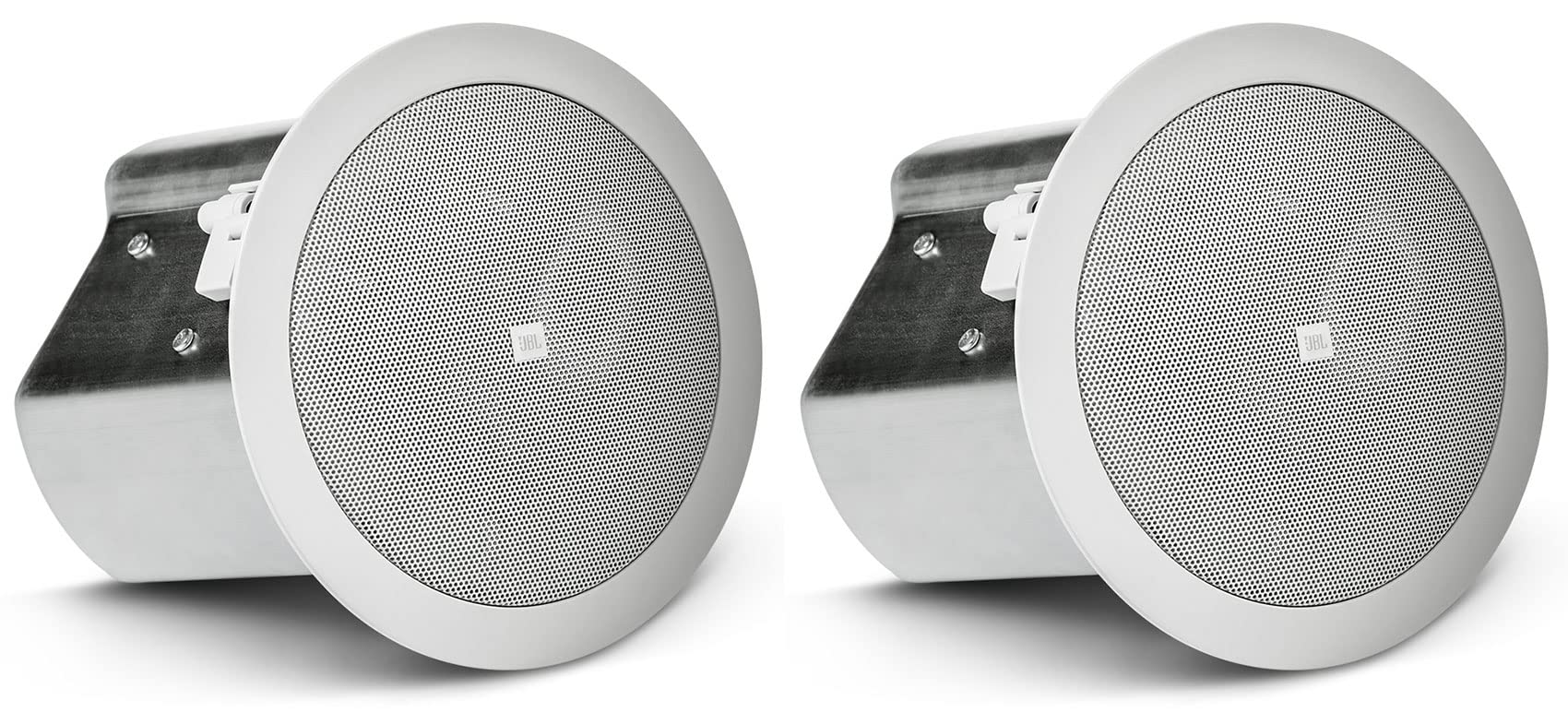

ItemName : Audiosavings Bundle: (5) Pair JBI Control 14C/T 4" 25w 70v in-Ceiling Speakers for Restaurant/Bar/Cafe
ItemPackageDimensions_Height : 11 inches
ItemPackageDimensions_Length : 13 inches
ItemPackageDimensions_Width : 10 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : ceiling-and-in-wall-home-speakers
Manufacturer : JBL
ModelName : (5) CONTROL 14C/T
ModelNumber : (5) CONTROL 14C/T
MountingType : Ceiling Mount
NumberOfItems : 10
PartNumber : (5) CONTROL 14C/T
PowerSourceType : Corded Electric
ProductDescription : Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses. Safety Seismic Attachment: One point, top surface. Net Weight: 2.2 kg (4.8 lbs, one speaker). Shipping Weight: 8.2 kg (17.9 lbs, pair in master carton). Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille. Optional Accessories: MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans. Color: White or Black. Backcan: formed steel (included "blind-mount"). Baffle/Rim: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.. Plenum Usage: Yes, backcan included Two-Way 4" Coaxial Ceiling Loudspeaker
ProductSiteLaunchDate : 2023-10-19T20:45:04.110Z
RecommendedUsesForProduct : Home/Restaurant/Bar/Cafe
Size : 4 Inch
SpeakerAmplificationType : Passive
SpeakerConnectivity : Wired
SpeakerSize : 4 inches
SpeakersMaximumOutputPower : 25 watts
SpeakerType : In-Ceiling
UnitCount : 10
UnspscCode : 52161512
Wattage : 25
