Specification
AudioOutputMode : Mono
Brand : Audiosavings
BulletPoint1 : Package Includes: (1) JBI CSMA240 Commercial/Restaurant 2 x 40w Amplifier 4ohm/8ohm/70V/100V, 8 inputs. (8) Rockville RockSlim 70B Black 5.25" 70v Commercial Restaurant Wall Speakers. Features: JBI CSMA240 Commercial/Restaurant 2 x 40w Amplifier 4ohm/8ohm/70V/100V, 8 inputs. For Commercial and Industrial Use. 40W into 8 or 4 Ohm Loads. 5W Per Channel. 8 Input Channels, 2 Output Channel. Usable with 70 & 100V Systems. Euroblock Mic/Line & RCA Inputs. Hi-Z & 27V Phantom Power Switches
BulletPoint2 : Sleep Mode & 2 Auxiliary Outputs. Voice Activated Ducking & Priority Mute. Specifications: Maximum Output Power: 40 W per channel into 4 Ohms or 8 Ohms, 1 kHz, = 0.5% THD. Insertion Loss: 1 dB maximum for 70 and 100 V outputs. Continuous Power: 5 W per channel. Line Output Level: 5.0 V RMS into 10 kOhms. Input Sensitivity: To obtain full rated power at 8 Ohms (or 5 VRMS to line output). Mic Input: 3 mV RMS. Line Input: 775 mV RMS. RCA Input: 300 mV RMS. Number of Channels: Input: 8, Output: 2.
BulletPoint3 : Frequency Response: Measured at 2.83 V RMS into rated load impedance at any output. 4/8 Ohms Output: 20 Hz - 20 kHz, ±2 dB. 70 V/100 V Outputs: 80 Hz - 15 kHz ±2 dB. Line Out: 20 Hz - 20 kHz, ±1 dB. Total Harmonic Distortion (THD): Measured at 2.83 V RMS into rated load impedance at any output. Power Amplifier Output: <0.5%, 20 Hz to 20 kHz. Line Output: 0.05% typical. Signal to Noise Ratio: > 90 dB. Nominal Input Impedance: Mic: 400 Ohms. Line: 20 kOhms (balanced). RCA: 50 kOhms.
BulletPoint4 : Minimum Load Impedance: Low Impedance Output: 4 Ohms. 70 V Output: 120 Ohms. 100 V Output: 240 Ohms.. Crosstalk: -70 dB @ 1 kHz. Controls: Front Panel: 8 x Input level rotary knobs. 2 x Output volume-attenuating knobs. 2 x Vox adjustment switches. 1 x Power switch. 2 x Bass potentiometers. 2 x Treble potentiometers. Rear Panel: 2 x Input-routing dip switches (including phantom and Hi-Z switches). Indicators: Front Panel: 8 x Mic/Line selector switch. 8 x Input signal presence ring, gree
BulletPoint5 : 2 x Output volume ring, green. 1 x Power switch ring, green/blue. Connectors: Rear Panel: 1 x IEC power input. 2 x Aux out connection points. 6 x 3-pin euroblock connectors. 2 x 5-pin euroblock connectors. 6 x Dual RCA input connectors. x RJ45, remote volume. Operating Temperature / Humidity: 32 to 95°F / 0 to 35°C, 95% RH (non-condensing). Storage Temperature: -4 to 185°F / -20 to 85°. Phantom Power: 27 VDC. AC Input: 100-240 VAC, 50/60 Hz
Color : Black
CompatibleDevices : Smartphone
ConnectivityProtocol : Auxiliary
ConnectivityTechnology : Powerline
ControllerType : Voice control
FrequencyResponse : 20 KHz
Impedance : 8 ohm
IsWaterproof : FALSE

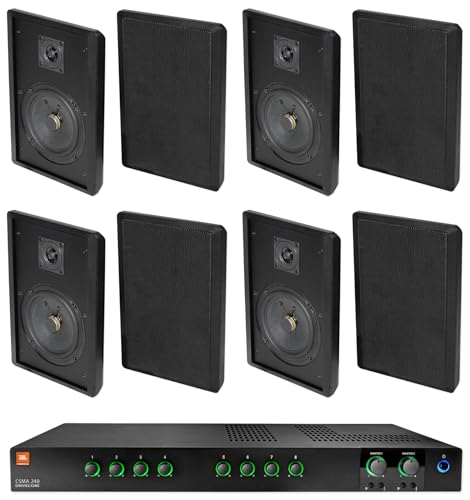

ItemName : Audiosavings Bundle: JBI CSMA240 Commercial/Restaurant 2 x 40w Amplifier 4ohm/8ohm/70V/100V, 8 inputs Bundle with (4) Pair Rockville RockSlim 70B Black 5.25" 70v Wall Speakers (5 Items)
ItemPackageDimensions_Height : 5 inches
ItemPackageDimensions_Length : 21 inches
ItemPackageDimensions_Width : 17 inches
ItemPackageQuantity : 1
ItemShape : Rectangular
ItemTypeKeyword : ceiling-and-in-wall-home-speakers
Manufacturer : JBL
Material : Aluminum
Material1 : Aluminum
Material2 : Acrylonitrile Butadiene Styrene (ABS)
ModelName : CSMA240+(12) Rock Slim 70B
ModelNumber : CSMA240+(12) Rock Slim 70B
MountingType : Wall Mount
NumberOfChannels : 6
NumberOfItems : 1
OutputWattage : 350 watts
PartNumber : CSMA240+(12) Rock Slim 70B
PowerSourceType : Corded Electric
ProductDescription : Designed for commercial and industrial use, the CSMA 240 Commercial Series Mixer/Amplifier from JBI is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 40W of peak power with 5W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments. The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find euroblock connections for mic/line inputs, as well as unbalanced RCA inputs, speaker connections, dip switches for input routing, and more. The unit is also equipped with two RJ45 connectors for use with JBI CSR-V in-wall volume controls (available separately). This Commercial Series mixer/amplifier boasts such features as voice activating ducking (useful for paging over background music), priority muting for channels one and five, and a sleep mode which automatically powers down the unit when no audible signal has been received for longer than 30 minutes. Also, with two auxiliary outputs, you may connect to an additional amplifier, though the master volume and tone controls will have no bearing on the resulting signal. The Rockville Rock Slim 70B is the commercial 70 volt version of our super popular Rockslim series of speakers. These speakers feature the slimmest design available on the market along with the easiest installation. They will enhance the décor of any store, restaurant, hotel, or other commercial space. With the included bracket which is molded into the speaker, installation is easier than hanging a picture. The Recessed spring-loaded wire terminals and the molded speaker wire grooves seamlessly hide all the wires behind the speaker.
ProductSiteLaunchDate : 2023-10-19T20:43:59.844Z
RecommendedUsesForProduct : Commercial
Size : 5.25 Inch
SpeakerAmplificationType : Passive
SpeakerConnectivity : Wired
SpeakerSize : 5 inches
SpeakersMaximumOutputPower : 8 watts
SpeakerType : In-wall
UnitCount : 13
UnspscCode : 52161500
Wattage : 4
