Specification
AudioOutputMode : Stereo
Brand : Audiosavings
BulletPoint1 : Package Includes: (1) JBL CSMA240 Commercial/Restaurant 2 x 40w Amplifier 4ohm/8ohm/70V/100V, 8 inputs. (8) JBL CSS8008 8" Commercial 70V/100V 5w Ceiling Speakers 4 Restaurant/Bar/Cafe. JBL CSMA240 Commercial/Restaurant 2 x 40w Amplifier 4ohm/8ohm/70V/100V, 8 inputs. For Commercial and Industrial Use. 40W into 8 or 4 Ohm Loads. 5W Per Channel. 8 Input Channels, 2 Output Channel. Usable with 70 & 100V Systems. Euroblock Mic/Line & RCA Inputs. Hi-Z & 27V Phantom Power Switches
BulletPoint2 : Sleep Mode & 2 Auxiliary Outputs. Voice Activated Ducking & Priority Mute. Specifications: Maximum Output Power: 40 W per channel into 4 Ohms or 8 Ohms, 1 kHz, = 0.5% THD. Insertion Loss: 1 dB maximum for 70 and 100 V outputs. Continuous Power: 5 W per channel. Line Output Level: 5.0 V RMS into 10 kOhms. Input Sensitivity: To obtain full rated power at 8 Ohms (or 5 VRMS to line output). Mic Input: 3 mV RMS. Line Input: 775 mV RMS. RCA Input: 300 mV RMS. Number of Channels: Input: 8, Output: 2.
BulletPoint3 : Frequency Response: Measured at 2.83 V RMS into rated load impedance at any output. 4/8 Ohms Output: 20 Hz - 20 kHz, +/-2 dB. 70 V/100 V Outputs: 80 Hz - 15 kHz +/-2 dB. Line Out: 20 Hz - 20 kHz, +/-1 dB. Total Harmonic Distortion (THD): Measured at 2.83 V RMS into rated load impedance at any output. Power Amplifier Output: <0.5%, 20 Hz to 20 kHz. Line Output: 0.05% typical. Signal to Noise Ratio: > 90 dB. Nominal Input Impedance: Mic: 400 Ohms. Line: 20 kOhms (balanced). RCA: 50 kOhms.
BulletPoint4 : Minimum Load Impedance: Low Impedance Output: 4 Ohms. 70 V Output: 120 Ohms. 100 V Output: 240 Ohms. Crosstalk: -70 dB @ 1 kHz. Controls: Front Panel: 8 x Input level rotary knobs. 2 x Output volume-attenuating knobs. 2 x Vox adjustment switches. 1 x Power switch. 2 x Bass potentiometers. 2 x Treble potentiometers. Rear Panel: 2 x Input-routing dip switches (including phantom and Hi-Z switches). Indicators: Front Panel: 8 x Mic/Line selector switch. 8 x Input signal presence ring, gree
BulletPoint5 : 2 x Output volume ring, green. 1 x Power switch ring, green/blue. Connectors: Rear Panel: 1 x IEC power input. 2 x Aux out connection points. 6 x 3-pin euroblock connectors. 2 x 5-pin euroblock connectors. 6 x Dual RCA input connectors. x RJ45, remote volume. Operating Temperature / Humidity: 32 to 95 degreeF / 0 to 35 degreeC, 95% RH (non-condensing). Storage Temperature: -4 to 185 degreeF / -20 to 85 degree. Phantom Power: 27 VDC. AC Input: 100-240 VAC, 50/60 Hz
Color : Multicolored
ConnectivityTechnology : Wire
FrequencyResponse : 20 hertz

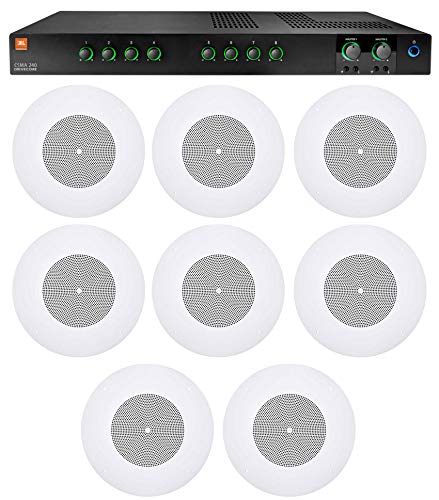

ItemName : Audiosavings Bundle: JBL CSMA240 Commercial/Restaurant 2 x 40w Amplifier 4ohm/8ohm/70V/100V, 8 inputs Bundle with (8) JBL CSS8008 8" Commercial 70V/100V 5w Ceiling Speaker 4 Restaurant (9 Items)
ItemPackageDimensions_Height : 4.9 inches
ItemPackageDimensions_Length : 20.7 inches
ItemPackageDimensions_Width : 16.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : ceiling-and-in-wall-home-speakers
Manufacturer : JBL
ModelName : CSMA240+(8) CSS8008-AM
ModelNumber : CSMA240+(8) CSS8008-AM
PartNumber : CSMA240+(8) CSS8008-AM
ProductDescription : Dimensions (W x D x H): 17.2 x 11.9 x 1.7" / 436.9 x 302.3 x 43.2 mm. Weight: Approximately 10.6 lb / 4.8 kg. Features: JBL CSS8008 8" Commercial 70V/100V 5 Watt Ceiling Speaker for Restaurant, Stores, etc. Driver Size: 200mm (8") Dual Cone. Driver Sensitivity: 96 dB. Frequency Range: 55 Hz - 16 kHz. Coverage: 120 degree. Driver Continuous Power Handling: 15 Watts. 100V Taps: 5W, 2.5W, 1.3W. 70V Taps: 5W, 2.5W, 1.3W, 0.7W. 25V Taps: 5W, 2.5W, 1.3W, 0.7W. Transformer Insertion Loss: 1.5 dB Maximum. Transformer Connection: Bare Wire. Motor Mass: 200 g (7 oz.). Matching CSS Backcan: CSS-BB8. Bolt Mounting Circle to Backcan: 4 points on 11.25" diameter. Cutout Diameter (Open-Back): 216 mm (8.5"). Cutout Diameter (In CSS-BB Backcan): 295 mm (11.7"). Depth (Behind Grille): 71 mm (2.8"). Grille Diameter: 327 mm (12.9"). Product Weight: 2.8 Lbs. Designed for commercial and industrial use, the CSMA 240 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 40W of peak power with 5W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments. The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find euroblock connections for mic/line inputs, as well as unbalanced RCA inputs, speaker connections, dip switches for input routing, and more. The unit is also equipped with two RJ45 connectors for use with JBL CSR-V in-wall volume controls (available separately).
ProductSiteLaunchDate : 2024-02-02T19:49:46.694Z
RecommendedUsesForProduct : For Commercial
SpeakersMaximumOutputPower : 40 watts
SpeakerType : In-Ceiling
UnspscCode : 52161500
WarrantyDescription : 3 Years, Manufacturer
