Specification
AssemblyInstructions : Already Assembled
AudioOutputMode : Surround
Brand : Rockville
BulletPoint1 : Package Includes: (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth. (1) (2) JBL Control 67 P/T 6.5" 60w Commercial 70v White Pendant Speakers C67P/T-WH. Includes: Amplifier. Remote. Rack mount ears. Power Cable. FM Radio antenna. Owner's manual. Warranty. Applications: Restaurant. Bar. Café. School. Lounge. Home (Multi-zone, Multi-room) Office. Warehouse.
BulletPoint2 : Features of RCS180-6: Rockville RCS180-6350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver. Capable of 70 volt, 100 volt, 8ohm, and 4 ohm. 70/100 volt RMS Power: 184 Watts. 4-16 ohm binding post speaker output. 6-Zones of speaker outputs - each zone has a separate volume control. 70 and 100 volt binding post outputs for single zone playback of all 180 watts. Built in Bluetooth audio streaming. FM radio tuner. USB input to play audio stored on a thumb drive (32gb max) SD card slot to play music stored on an SD Card (32gb max) Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3.
BulletPoint3 : Specifications of RCS180-6: Power Requirements: 120V / 50-60Hz. A Weighted Signal to Noise (@ 1W) -68.1dBA. A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA. Frequency response: 49Hz to 14.9 Khz. Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%. Weight: 22.7 lbs. Dimensions: 19" x 16" x 4" inches.
BulletPoint4 : Features of Control 64P/T-WH: 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil. Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp. Stylish design, available in black or white (-WH). UL listed (speaker and hanging cable system). 8O and 70V/100V operation.
BulletPoint5 : Specifications of Control 64P/T-WH: Frequency Range (-10dB): 65 Hz - 15 kHz. Frequency Response (±3 dB): 85Hz - 14 kHz. Power Rating: 100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs) Maximum Input Voltage: 18.2 V RMS (2 hrs), 36.4 V peak. Nominal Sensitivity: 88 dB Nominal. Coverage Angle: 120° (averaged 1 kHz to 4 kHz) Directivity Factor (Q): 6.2. Directivity Index (DI): 7.3dB (averaged 1kHz - 16kHz) Maximum SPL (1m): 105 dB continuous pink noise, 111 dB peak. Impedance: 8O. Transformer Taps: 70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W.
Color : White
CompatibleDevices : Home Theater
CompatibleDevices1 : Laptop
CompatibleDevices2 : Tablet
CompatibleDevices3 : Smartphone
ConnectivityProtocol : Bluetooth
ConnectivityTechnology : Wired
ConnectorType : Aux
ControllerType : Remote Control
CustomerPackageType : Standard Packaging
FrequencyResponse : 18 KHz
Impedance : 8 ohm
IncludedComponents : Amplifier. Remote. Rack mount ears. Power Cable. FM Radio antenna
IncludedComponents1 : Amplifier. Remote. Rack mount ears. Power Cable.
IncludedComponents2 : FM Radio antenna. Owner's manual. Warranty
InputVoltage : 70 volts
IsWaterproof : FALSE

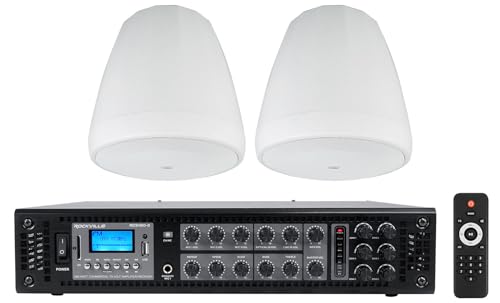

ItemName : Rockville Bundle: (1) RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth Bundle with (2) JBL Control 64P/T-WH 4" 30w Hanging Pendant Speakers (3 Item)
ItemPackageDimensions_Height : 7.1 inches
ItemPackageDimensions_Length : 21 inches
ItemPackageDimensions_Width : 18.9 inches
ItemPackageQuantity : 1
ItemTypeKeyword : ceiling-and-in-wall-home-speakers
Manufacturer : Rockville
Material : Aluminum
ModelName : RCS180-6+C67P/T-WH AM
ModelNumber : RCS180-6+C67P/T-WH AM
MountingType : Ceiling Mount
NumberOfChannels : 2
NumberOfItems : 1
OutputWattage : 600 watts
PartNumber : RCS180-6+C67P/T-WH AM
PowerSourceType : Corded Electric
ProductDescription : Description of RCS180-6:

Rockville is proud to introduce our new RCS series of products. The RCS180-6 is a 180 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed. This model offers 180 watts at 70 volt and you can either use the binding posts for single zone applications or use the speaker wire outputs and split the power up to 6 zones. (Do not exceed 100 watts on a single zone). Each zone can have an unlimited amount of speakers wired in parallel. You can also split the 180 watts into 6 zones as you please. For example you can put 25 watts to each of the 6 zones or 50 watts to 2 zones and 12 watts to each of the remaining zones. Simply put, if the total watts are under 180 then you are OK. (Most professionals recommend you not exceed 80% of the amp power. We recommend your speakers watts not to be more than 150 total on the speaker taps. With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements.The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc. This is our new and improved version that now has optical input so you can connect this to a digital source like a television or projector. Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system. The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable. This is our new and improved version with euro-block speaker terminals that make it super easy to install the wires even if the receiver is hidden in a corner. The terminals are detachable and once you connect your speaker wire to the terminal it just clicks into the receiver. Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. This model makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and ¼"" on our model to make this more universal and user friendly. With our unique design you can feel confident in your DIY ability when installing our commercial system!.

Description of Control 64P/T-WH:

Compact Full-Range Pendant Loudspeaker: The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.

Transformer Insertion Loss: 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W. Drivers: 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil. Enclosure: High impact polystyrene. Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splash-proof rating. Input Connectors: Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). Safety Agency: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. Dimensions (H x W x D): 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket. Net Weight (each): 2.35 kg (5.2 lbs) Shipping Weight (pair): 6.07 kg (13.4 lbs) Included Accessories: Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors. Optional Accessories: MTC-PC60 top panel / terminal cover. Colors: Available in black or white (-WH). Paintable
ProductSiteLaunchDate : 2024-06-07T16:33:06.998Z
RecommendedUsesForProduct1 : Indoor
RecommendedUsesForProduct2 : Home/Restaurant/Bar/Cafe
RecommendedUsesForProduct3 : For Music Players
RecommendedUsesForProduct4 : Commercial
SignalToNoiseRatio : 111 decibels
SpeakerAmplificationType : Passive
SpeakerConnectivity : Wired
SpeakerSize : 4 inches
SpeakersMaximumOutputPower : 150 watts
SpeakersNominalOutputPower : 120 watts
SpeakerType : Hanging Pendant Speakers
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 52161500
WarrantyDescription : 1 YEAR Manufacturer
WarrantyType : Manufacturer
Wattage : 75 watts
