Specification
Brand : OMAX
BulletPoint1 : Total magnification for bright field: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
BulletPoint2 : Total magnification for bright field: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
BulletPoint3 : Total magnification for bright field: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
BulletPoint4 : Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment
BulletPoint5 : Phase contrast kit: - Substage phase contrast condenser disk with five switchable positions - One bright field NA1.25 with iris diaphragm Abbe condenser - Four phase contrast condensers: 10X, 20X, 40X, 100X - Each phase contrast condenser can be centered individually - Four plan PH objectives: 10X, 20X, 40X (S), 100X (S, Oil) - 37mm mounting size in diameter - Centering telescope: 23.2mm
BulletPoint6 : Solid metal base and stand; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
BulletPoint7 : 5-year warranty against manufacturing defects
ExternallyAssignedProductIdentifier1 : 670541479339
ExternallyAssignedProductIdentifier2 : 0670541479339
ExternallyAssignedProductIdentifier3 : 0670541501153
ExternallyAssignedProductIdentifier4 : 0670541475331
Hazmat : 9
ItemName : OMAX 40X-2500X Phase Contrast Trinocular Compoud LED Siedentopf Microscope with PLAN Phase Contrast Objectives
ItemPackageDimensions_Height : 46 centimeters
ItemPackageDimensions_Length : 51 centimeters
ItemPackageDimensions_Width : 24 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-microscopes
MagnificationMaximum : 2500 multiplier_x
Manufacturer : OMAX
Material : optical glass
ModelNumber : M8311Z-PHB1
NumberOfItems : 1
PartNumber : M8311Z-PHB1
PowerSourceType : Corded Electric

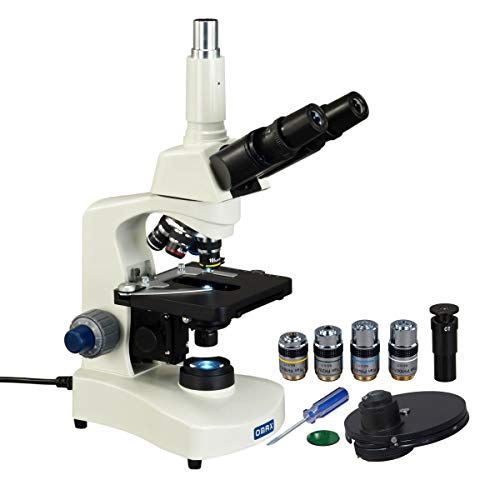

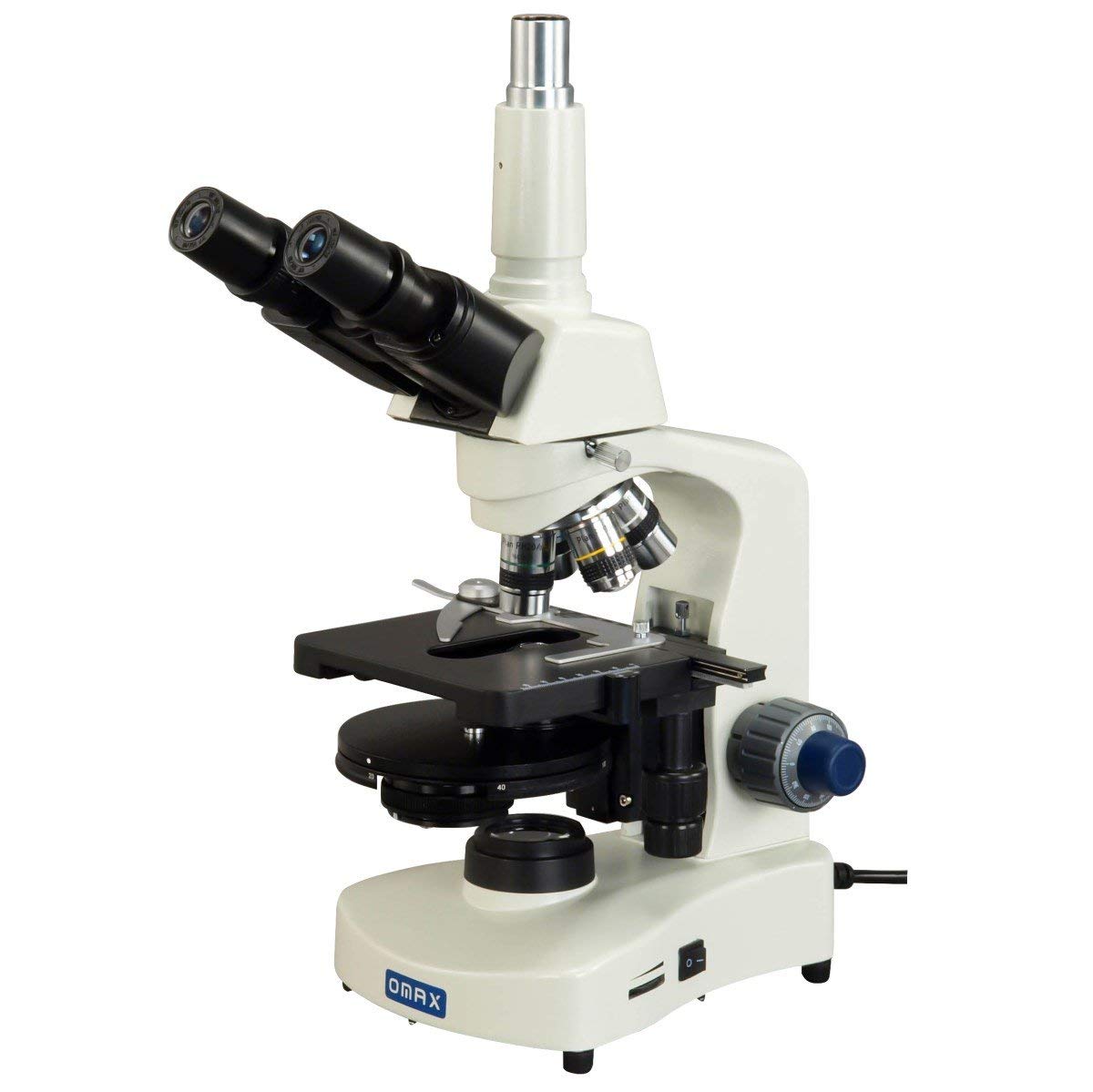

ProductDescription : The trinocular compound LED microscope provides both phase contrast and brightfield microscope system for viewing live cells depending on your applications. The phase contrast microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm and a complete set of phase contrast kit. It offers six levels of brightfield magnification from 40X to 2500X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X (S, Oil). It also offers magnification power: 100X-200X-250X-400X-500X-1000X-2500X. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
ProductSiteLaunchDate : 2015-03-06T19:54:37.365Z
RealAngleOfView : 30 degrees
StreetDate : 2017-03-12T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41111700
Voltage : 240 volts
