Specification
AgeRangeDescription : Adult
BatteriesIncluded : 1
Brand : YUCHENGTECH
BulletPoint1 : 1. Contained items: This kit is a three piece mud set, including NB-1 Mud Hydrometer, 1006 mud viscometer and NA-1 sand content meter. The kit can be used for laboratory measurements of viscosity, specific gravity / density and sand content.

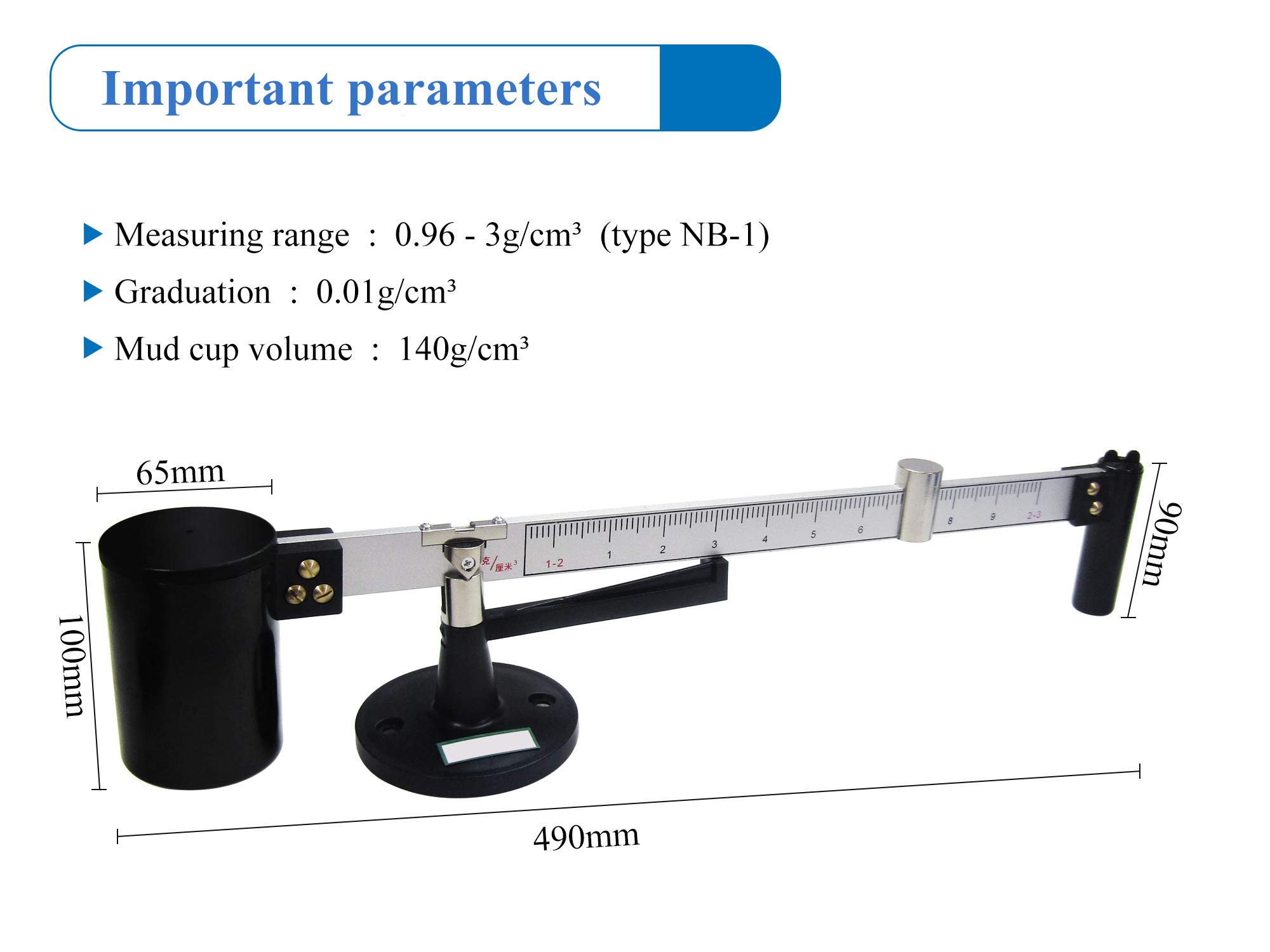

BulletPoint2 : 2. NB-1 Mud Hydrometer: NB-1 Mud Hydrometer is used to measure the weight of mud, the unit is g / mm3, measurement range:0.96-3 g / cm3, measurement accuracy:0.01 g / cm3, the mud cup capacity:140 cm3.
BulletPoint3 : 3.1006 Mud Viscometer: Mud viscometer is suitable for measuring the viscosity of mud in well sites and laboratories. It is calculated by the time required for 500mm3 mud to flow out of the viscometer, in seconds.
BulletPoint4 : 4.NA-1 sand content meter: Sand content meter is determined by the change of mud volume after filtration through screen, expressed as a percentage.

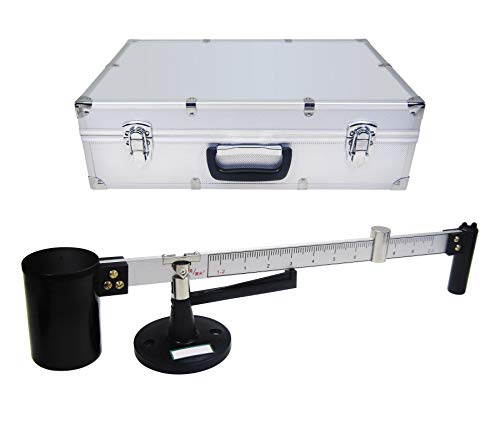

BulletPoint5 : 5. Features: The mud test kit is a portable kit, and all three test instruments are packed in an aluminum suitcase. Strong and durable, compact structure, easy to carry and store.
CareInstructions : Hand Wash
Color : Amber
ExternallyAssignedProductIdentifier : 8998688639297
ExternallyAssignedProductIdentifier1 : 642125538671
ExternallyAssignedProductIdentifier2 : 0642125538671
IncludedComponents : ruit wine press
ItemLength : 15 inches
ItemName : YUCHENGTECH Mud Hydrometer Mud Tester Slurry Test Kit Sand Content Kit Mud Tester Viscosimeter Sand Content Meter (Kit)
ItemPackageDimensions_Height : 53.34 centimeters
ItemPackageDimensions_Length : 19.05 centimeters
ItemPackageDimensions_Width : 38.354 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-hydrometers
Manufacturer : YUCHENGTECH
Material : Plastic
Material1 : Kit
Material2 : Kit
Material3 : Kit
Material4 : Kit
Material5 : Kit
ModelName : HEEPDD1noizbgeqp
ModelNumber : NNW-ZY010
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : NNW-ZY010
ProductDescription : NB-1 Mud Hydrometer
Operating procedures£º
1. Pour the mud into the mud cup, level the cup mouth, and do not leave bubbles. Cover the cup cover gently. The excess mud and air will be discharged from the small hole in the middle of the cup cover, and then wipe up the spilled mud
2. Then put the main blade of the lever on the main blade pad of the base and move the heavy object slowly. When the bubble is in the middle, the lever remains level, and the scale on the left side of the farmma is the mud specific gravity
3. When measure the mud weight in the range of 2-3 g / cm3, the balance cylinder cover shall be unscrewed, and then the counterweight shall be put in and the screw shall be screwed on

NA-1 mud sand content tester
Operating procedures£º
1. Fill the mud to the mark of "mud" on the measuring pipe, add water to the line with "water", block the pipe orifice and shake it
2. Pour the mixture into the filter cylinder, throw the liquid passing through the filter screen, add water into the measuring tube, shake and then pour it into the filter cylinder, and repeat until the measuring tube is clean
3. Wash the sand on the screen with clean water to remove the residual mud
4. Put the funnel into the filter cartridge, turn it over slowly, and insert the funnel into the measuring tube. Wash all the sand attached to the screen into the pipe with clean water
5. Read out the percentage of sand after the sand has settled
6. Clean and dry the instrument and put it into the box

Main technical parameter:
Calibration on the measuring tube: 0.5% per cell below 15%, 1% per cell between 15% and 30%, and 5% per cell between 31% and 100%.

Mud viscometer
Main technical parameter:
The material of mud viscometer:iron
Outflow pipe hole diameter: 5mm, length :100mm
Water value: 15¡À0.5s
The capacity of measuring cup :one 500ml,another 200ml
ProductSiteLaunchDate : 2020-10-12T07:00:00.000Z
ResponseTime : 500 milliseconds
Reusability : Reusable
Size : 4.75 Gallon
SpecificationMet : ASTM
StreetDate : 2018-03-17T00:00:01Z
Style : Elegant
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 27000000
