Specification
Brand : ZHIMIFU
BulletPoint1 : Infrared Heating: It adopts the short-wave infrared curing method, which has the characteristics of high luminous efficiency and strong penetration. Such a heating method can dry from the inside out, so the paint surface after curing has high gloss and strong coating adhesion. It can also greatly reduce wrinkles and tears to avoid rework.
BulletPoint2 : High Efficiency: Its working temperature can reach 200℃, and it uses a special internal high-reflectivity reflector to make the heat more evenly distributed, which can increase the curing area (16.54*19.69in) and reduce the curing time.
BulletPoint3 : Timer Function: You can set the time of curing within 0-90 minutes by turning the knob on the back of the light according to the paint surface, which is convenient for you.

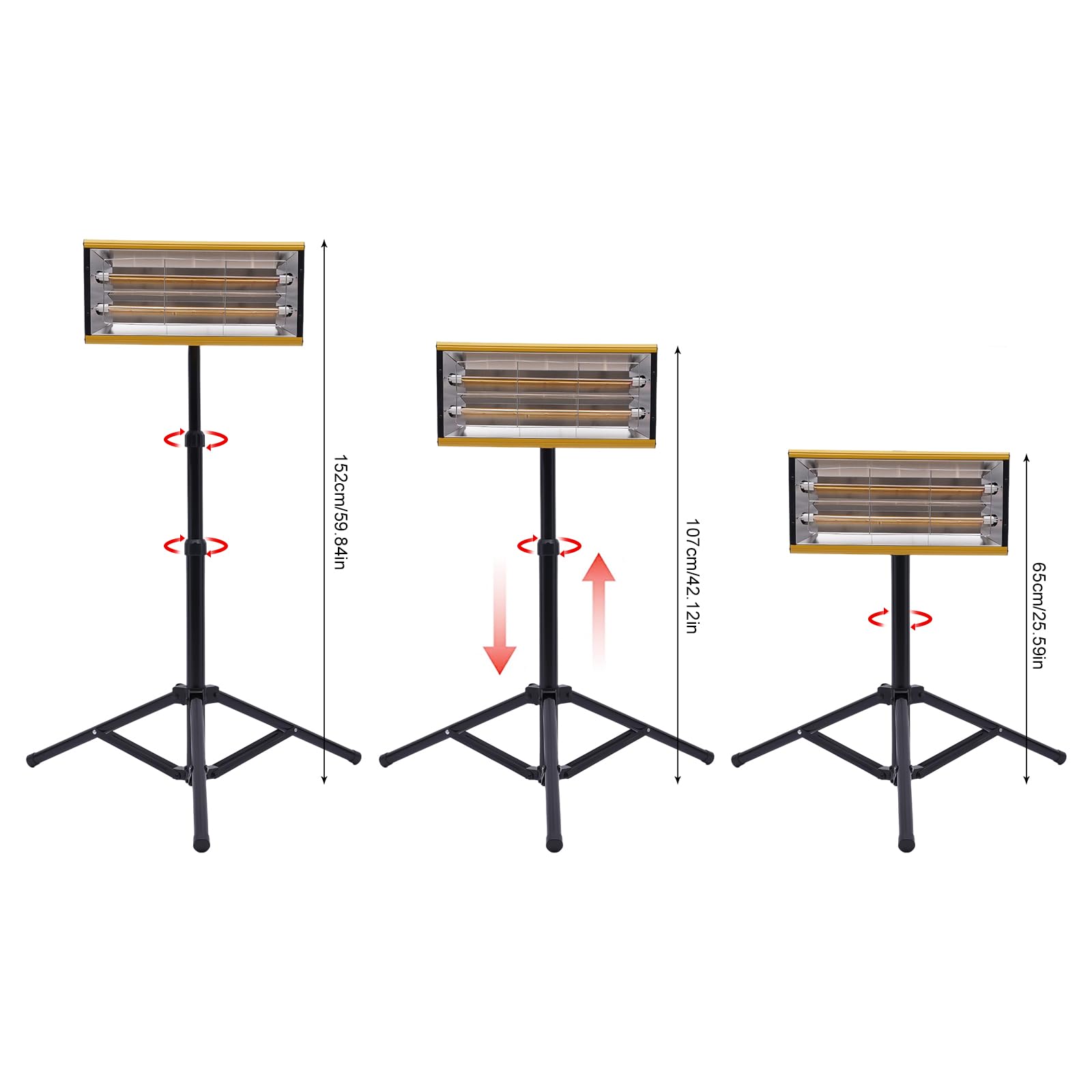

BulletPoint4 : Height and Angle Adjustable: We equip you with a telescopic stand, you can adjust its height between 25.59-59.84 by adjusting the two knobs on the stand according to your needs. And you can manually adjust its working angle up to 270°.
BulletPoint5 : Application: It can be used for automotive painting, field maintenance, engine drying, stripping, putty drying, primer drying, partial paint drying, or preheating before painting. You can use it handheld or with a stand as needed, which can be convenient for you.
BulletPoint6 : High Safety: It only requires a low current to operate, avoiding dangerous accidents caused by large currents.
BulletPoint7 : Easy Installation: The simple structure and clear parts make the installation process simpler, allowing you to enjoy a sense of achievement from components to finished products!
Color : Yellow, Black
ColorCode : Yellow, Black
Coverage : 41.5*7*19cm/ 16.3*2.8*7.5in
ExternallyAssignedProductIdentifier1 : 0763508777972
ExternallyAssignedProductIdentifier2 : 763508777972
FinishType : NO
IncludedComponents : 2*Infrared Paint Baking Lamps 2 Sets of Installation Brackets & Screws
IncludedComponents1 : 2*Infrared Paint Baking Lamps
IncludedComponents2 : 2 Sets of Installation Brackets & Screws
IsAssemblyRequired : 1
ItemForm : NO

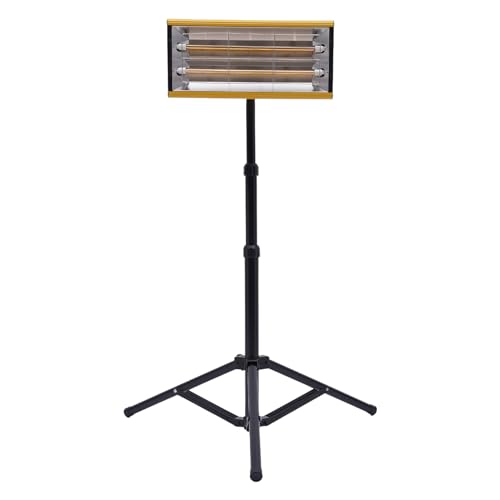

ItemName : Infrared Paint Curing Lamp with Timer 2000W Paint Drying Lamp Shortwave Infrared Paint Baking Lamp with Bracket Adjustable Height and Angle Car Body Repair Paint Dryer
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-paint-curing-systems
ItemVolume : 1 liters
Manufacturer : ZHIMIFU
Material : Galvanized Sheet, Aluminum Alloy
ModelName : Baking Lamp-1
ModelNumber : FK-12123
NumberOfItems : 1
PaintType : Paint
PartNumber : 1
ProductDescription :

Do you want your newly painted surface to dry quickly? Then try this infrared paint-curing lamp. It uses an infrared short-wave curing method, can quickly cure the paint, and its a maximum curing area of 16.54 * 19.69in, so it can greatly meet your requirements of efficiency!



Installation

1.Mounting Base: Remove the nuts manually. Adjust the bolt to the middle position, align the two holes on the base and place nuts, then tighten the nuts.

2.Mounting Connection Plate: Align the female through holes in the connection plate with the holes on either side of the mounting plate. Tighten the nuts to ensure the connection plate is perpendicular to the mounting plate.

3.Connection Bracket: Remove the swivel nut at the top of the bracket, align the hole in the middle of the connection plate, and tighten the nut.



Specification

Model: DT-SC-003

Color: Yellow, Black

Plug Standard: American

EU Energy Label Efficiency Labeling Class: A++to E

Efficiency: E

Voltage: 110V

Power: 2000W

Working Temperature: 0-200°C

Working Angle: 0-270°

Maximum Baking Area: 42*50cm/ 16.54*19.69in

Material: Aluminum

Bulb Type: Halogen (Included)

Lamp Length: 27cm/ 10.6in

Baking Lamp Size: 41.5*7*19cm/ 16.3*2.8*7.5in

Total Height Range: 65-152cm/ 25.59-59.84in

Package Size: 62*34*19cm/ 24.41*13.39*7.48in

Net Weight: 4.9kg/ 10.8lbs

Gross Weight: 5.1kg/ 11.24lbs



Package Included

1* Baking Lamp

1* Handlebar

1* Telescopic Bracket

1* Connecting Plate

1* Fixing Plate

2* Hexagonal Wrenches

All Accessories for Assembly



Notes

1.Please note that minors are not allowed to touch to prevent burns!

Size : 1 Count (Pack of 1)
SpecificUsesForProduct : Interior/Exterior
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SurfaceRecommendation : Aluminum
UnitCount : 1
UnspscCode : 31211500
WarrantyDescription : 30 Days
