Specification
Brand : Acouto
BulletPoint1 : 5-in- Gauge Set - This comprehensive panel features five essential gauges: a tachometer capable of measuring engine speed from 0 to 4000 RPM, a fuel meter, a temperature meter ranging from 100 to 250°F, an oil pressure meter showing 0 to 10 bars, and a voltmeter indicating battery voltage from 8 to 16V. This -in-one gauge set is designed to provide you with crucial information about your boat's operations at a .
BulletPoint2 : Multifunctional Capabilities - basic measurements, the instrument panel is equipped with multifunctional features including a dimmer, alarm reset, and test functions for parameters like engine voltages, oil pressure, coolant temperature, and more. The striking red backlight and LED ensure that you can easily read each gauge even under low light conditions.
BulletPoint3 : Construction - Built to withstand the harshest marine environments, this instrument panel uses an aluminum alloy body, a 316L stainless steel bezel, and an antifog transparent lens. With an IP67 rating, it is to , , and mechanical shocks, making it suitable for any nautical or rugged application.
BulletPoint4 : High Performance - Each gauge leverages an accurate stepping motor for precise measurements. The panel operates efficiently on an ultra-wide voltage (9-32V), with a maximum short-term tolerance of 36V, offering consistent performance and low power consumption (≤100mA) for prolonged use.
BulletPoint5 : Easy Installation - Designed with user-friendliness in mind, the instrument panel offers simple installation with a compact unit area of 240 x 180mm (9.45 x 7.09 inches). Its robust back harness connectors feature snaps for a secure connection, ensuring reliable during intense vibrations typical in marine or high-performance vehicles.

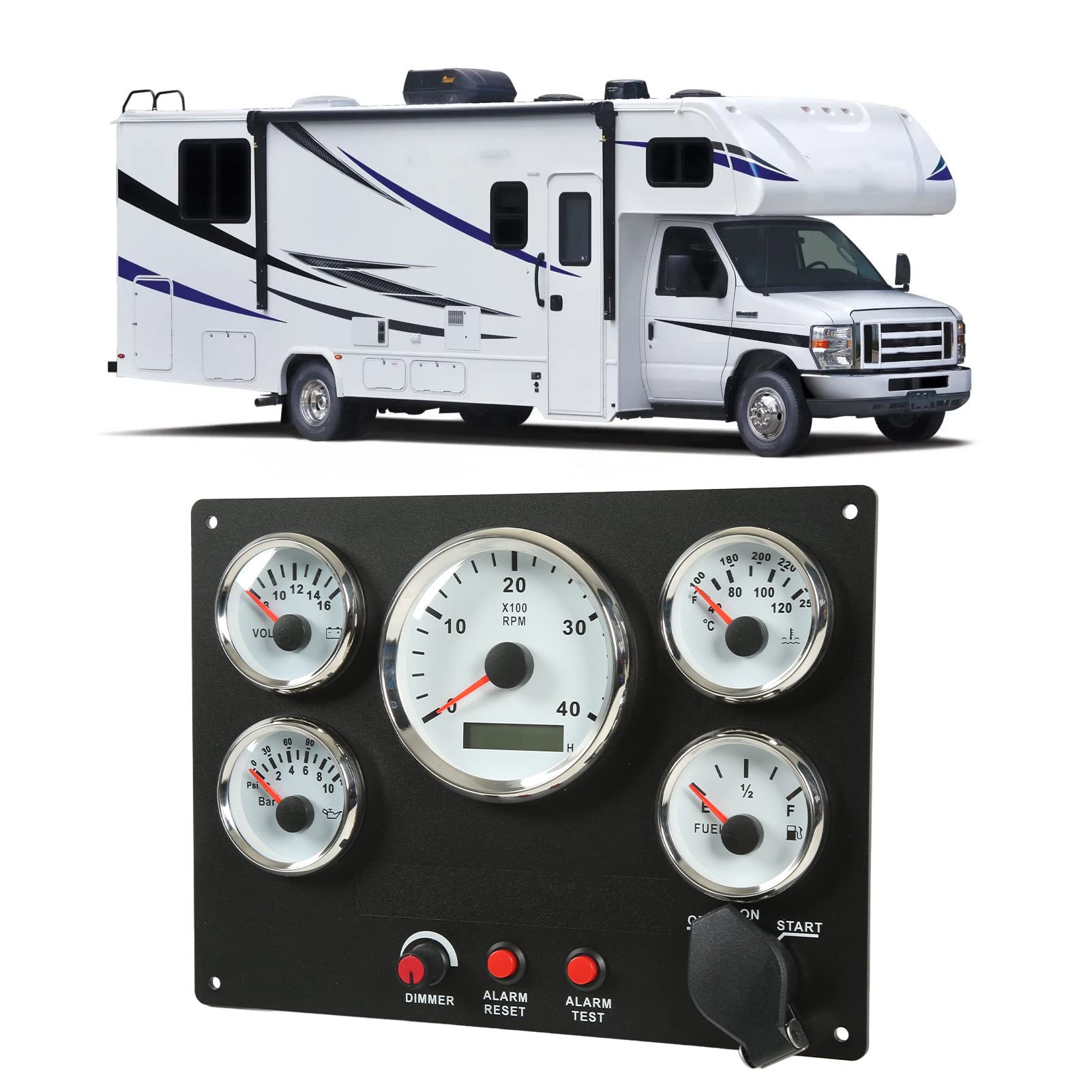

ItemName : Comprehensive Marine Instrument Panel with 5 Gauge Set Tachometer Fuel Temperature Oil Pressure Voltmeter for Boats and Yachts
ItemPackageDimensions_Height : 11 centimeters
ItemPackageDimensions_Length : 32 centimeters
ItemPackageDimensions_Width : 21 centimeters
ItemTypeKeyword : boating-panels
Manufacturer : Acouto
Material1 : Acrylonitrile Butadiene Styrene (ABS)
Material2 : Glass
Material3 : Stainless Steel
Material4 : Aluminum
ModelName : Acoutogphbm2fxcz-12
ModelNumber : Acoutogphbm2fxcz-12
NumberOfItems : 1
PartNumber : Acoutogphbm2fxcz-12
ProductDescription : Specification:
Item Type: Boat Instrument Panel
Material: Aluminum alloy+ABS+stainless steel+tempered glass
Function Display:
85mm tachometer can display: engine speed 0-4000RPM, 99999.9H timing;
52mm water temperature gauge shows water temperature: 100-250℉ (40-120 ℃); (Input : -22ohms)
52mm fuel level gauge shows the fuel volume of the fuel : F-1/2-E; (Input : 0-190ohms)
52mm oil pressure gauge can display the oil pressure of the oil : 0-10Bar (0-145psi); (Input : 10-184ohms)
52mm voltmeter can display battery voltage: 8-16V;
Mode: LCD display, stepper motor
Working Voltage: DC12V circuit system; (Except for the voltmeter, the other four instruments can work in the DC24V circuit system)
Working Current: ≤ 100 MA
Working Temperature: - 30 ℃ -+75 ℃
Storage Temperature: - 40 ℃ -+85 ℃
Backlight Color: Red

Package List:
1 xBoat Instrument Panel
2 x Key
1 x Wiring Buckle
8 x Wiring Terminal

ProductSiteLaunchDate : 2019-07-26T00:00:00.000-07:00
Size : White Dial
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41110000
