Specification
Brand : Gearwell
BulletPoint1 : Exquisite carbon fiber film with vivid texture may give you a better touch.
BulletPoint2 : With IP66 water‑tight gasket, effectively protect against powerful water jets from all directions when mounted.
BulletPoint3 : holder can be retractable from the front easily for the design of ‑replacing.
BulletPoint4 : 20A switches with backlight labels have screw hidden design with polished stainless steel bezel.

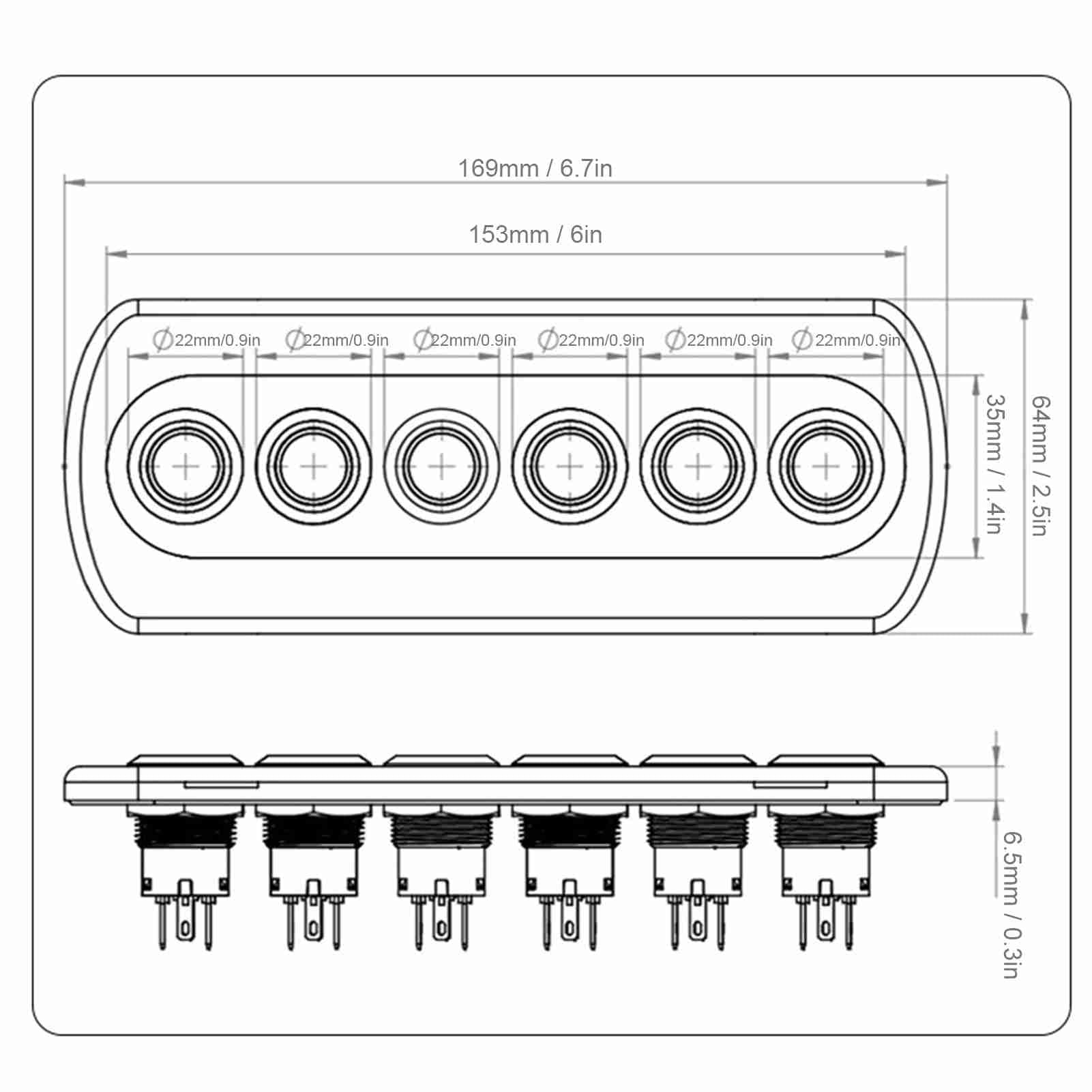

BulletPoint5 : With ultra compact panel size, mounting holes compatible BEP's contour panel series more convenient.
Color : Black
Department : unisex-adult
IncludedComponents : Switch Panel
ItemDisplayDimensions_Length : 2.91 inches
ItemDisplayWeight : 0.24 pounds
ItemName : Gearwell Switch Panel, Toggle Switch Control Board, 12V 20A Push Button Panel, Marine LED Switch Panel, IP66 Electrical Panel for Yacht RV
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : boating-panels
Manufacturer : Gearwell
Material : Aluminum
Material1 : Aluminum
Material2 : Acrylonitrile Butadiene Styrene
Material3 : Polycarbonate
ModelName : Gearwelloi3x7dsb60
ModelNumber : Gearwelloi3x7dsb60
NumberOfItems : 1
PartNumber : Gearwelloi3x7dsb60
ProductDescription :
Item Type: Carbon Fiber Switch
Material: Carbon Fiber + Plastic + Stainless Steel
Faceplate: Plastic with Carbon Fiber Film
Outer Frame: Stainless Steel
Circuit Protection: In-Line 15a ATP s Pre-Installed (per 2 Branches)
Switch Rating:20A DC12V
Max Cumulative Amp: 25A Per 2 Branches
How to Use:
1. Disconnect all power (AC and DC).
2. Cut opening for mounting location using the template provided.
3. Connect the positive wire (red) to the DC power source (the batteries) and the LED negative feed wire (yellow) to a DC negative bus bar.
4. Connect the devices positive to the load terminals of the switches. Connect the negative wires of the devices to a negative bus bar. Apply desirable labels to the recessed area at corresponding branches.
5. Mount the switch panel with the included self-tapping screws.
6. Reconnect all the AC and DC powers. Turn on and off all branch circuits to check if the panel works normally.
7. To replace s, use Flat screwdriver to pry open stainless bezel and inner panel. Pull out the inner panel and replace the . Simply push the inner panel and bezel back after desired s are replaced.

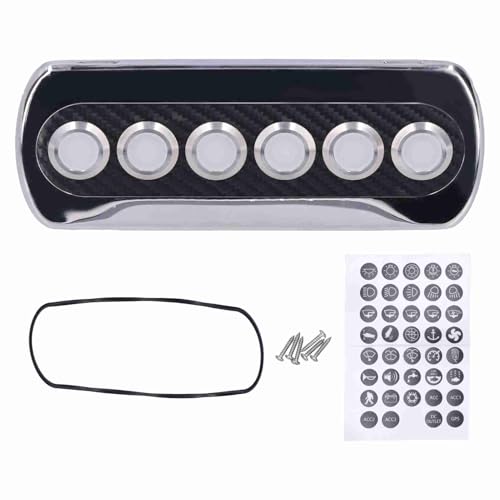

Package List：
1 x Panel Switch
1 x Sticker
6 x Mounting Screw
1 x Manual
1 x Rubber Pad

ProductSiteLaunchDate : 2025-03-31T14:21:08.096Z
Size : 19.50X5.00X3.50CM
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 39122200
