Specification
AgeRangeDescription : adult
Brand : YedaHcy
BulletPoint1 : High Torsion Performance: Features two magnets inside for improved motor performance, ensuring efficient and powerful .
BulletPoint2 : Gears: Constructed with all-metal gears for wear-, quiet , and a long service life.
BulletPoint3 : Overcurrent Protection: Brushless motor automatically cuts off power when current reaches 3A, enhancing safety and preventing damage.
BulletPoint4 : Pure Copper Coil: Strengthened stator and rotor increase motor torsion, providing robust and performance.
BulletPoint5 : Versatile Applications: Ideal for a variety of sport control applications requiring precise and low-speed motor .
Color : 24V 15rpm
ExternallyAssignedProductIdentifier : 8885597251347

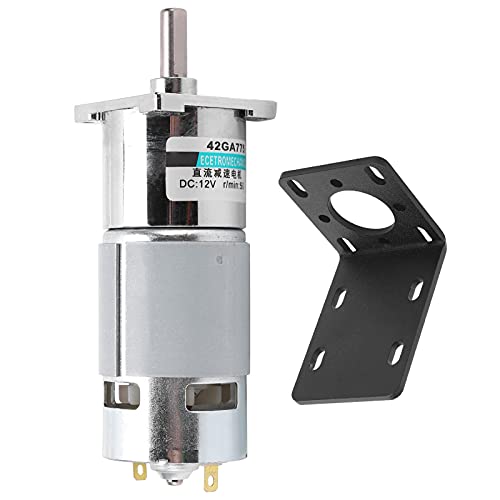

ItemName : DC Gear Motor XD42GA755 Low Speed CW CCW Permanent Magnet High Torsion Copper Coil with Bracket Sport Control 12V (50rpm/min)
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : permanent-magnet-motors
Manufacturer : YedaHcy
ModelName : YedaHcyfuhqwnatg1-14
ModelNumber : YedaHcyfuhqwnatg1-14
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : YedaHcyfuhqwnatg1-14

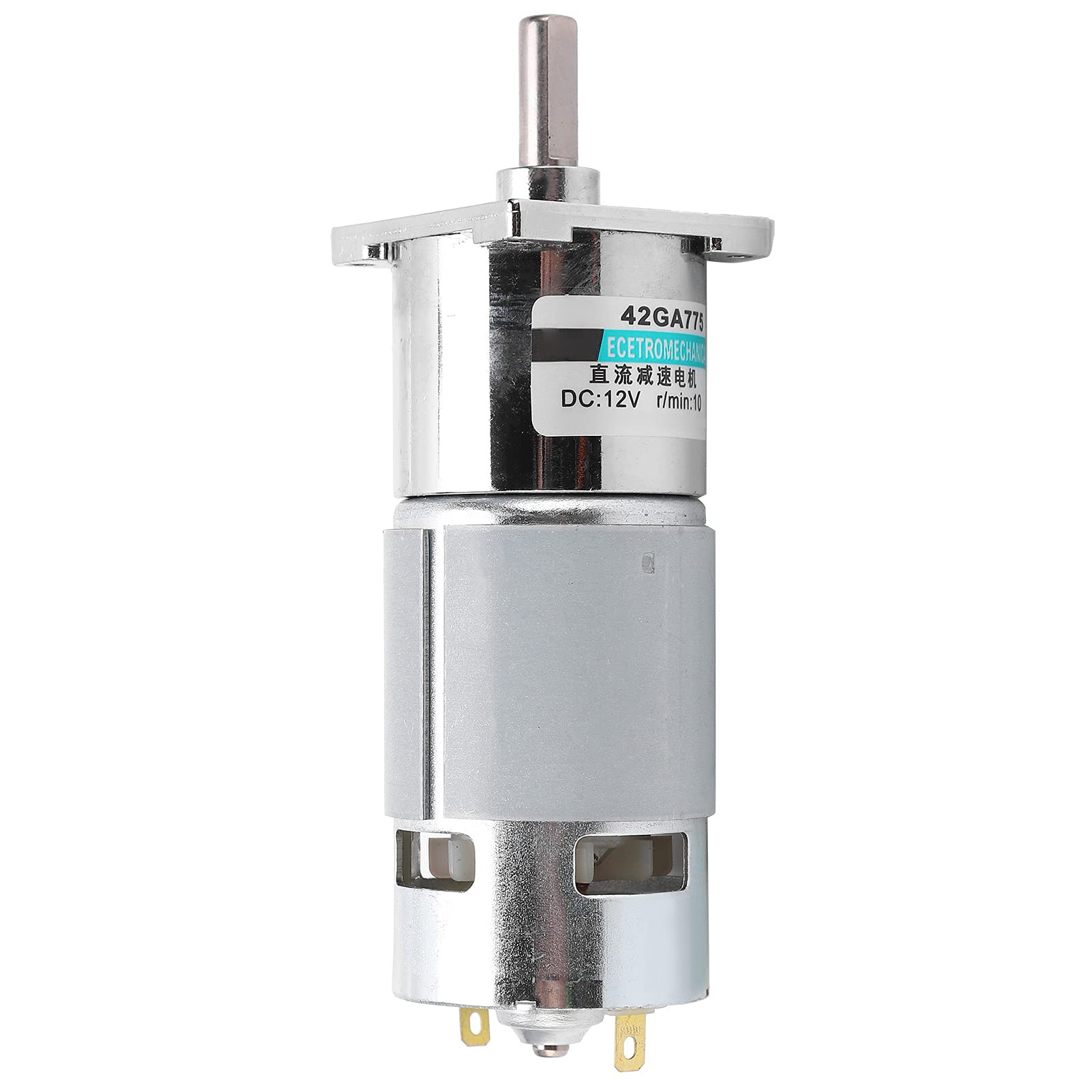

ProductDescription : Item Type: DC Gear Motor
Model: XD-42GA755
Material: Copper
Output Shaft Size: Approx. 8 x 20mm / 0.3 x 0.8in
Insulation : After the rated of the motor under normal temperature and humidity, when measuring the insulation between the coil and the motor with a DC500V meter, it does not exceed 20MΩ
Insulation Withstand Voltage: After the rated of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil s for one minute, and the abnormality is 1500V.
Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated under normal temperature and humidity by using the to measure the temperature rise of the coil below 70℃
Insulation Class: Class B(130℃)
Operating Environment Temperature: Motor: -10~+40℃ (no icing)
Use Environment Humidity: 85% or less (no condensation)
CW/CCW: Yes
Speed Adjusted: Yes


Model Voltage)DC/V) No-Load Speed (rpm/min) No-Load Current(A) Load Speed (rpm/min) Loading Moment)kgf·cm) Reduction Ratio)1:00) Power)W)
XD-42GA755 12V 10 0.3 9 45.84 500 25
20 0.3 18 22.92 200 25
30 0.3 28 15.28 142.8 25
50 0.3 45 9.17 100 25 Notes:
1 Overload and Locked Rotor:
When the motor is running, it generates heat due to the energy conversion that occurs inside the coil and the iron core, and the temperature gradually rises. The load is within the rated range, and the heat generation and heat dissipation are balanced, and the coil of the motor will not be burnt. However, it will cause heat under overload and locked-rotor conditions. When the running time is too long, the insulating film on the enameled wire of the coil is dissolved, causing a short circuit between the enameled wires and burning the motor.
2 When Running at Low Speed:
For DC motors, carbon brushes are generally used. The rotating commutator rubs against the carbon brushes, creating sparks at the notches of the commutator. When the motor
ProductSiteLaunchDate : 2025-04-23T09:24:32.431Z
Size : 50rpm/min
UnitCount : 1
UnspscCode : 26111500
