Specification
Brand : YWBL-WH
BulletPoint : Monitoring Relays
BulletPoint1 : Product Name: Voltage Monitoring Relay; function: over voltage, under voltage; Rated voltage: DC 12V/24V/36V/48V; Overvoltage regulation range: 13-17v; Undervoltage adjustment range: 10-14v; capacity: 6A 250VAC (resistivity).
BulletPoint2 : Real Time Monitoring: The voltage monitoring relay could achieve real-time monitoring of dc overvoltage and undervoltage faults, and over-voltage, under-voltage value, and action time can be adjusted.
BulletPoint3 : 35mm Rail: With 35mm rail and standard modular structure, the voltage monitoring relay is easy to install, easy to operate.
BulletPoint4 : Main Features: The voltage monitoring relay is of 2 sets of normally open and normally closed contacts, 2 indicator lights indicate various working conditions, no additional auxiliary power supply is required.
BulletPoint5 : Typical Applications: The voltage monitoring relay is typically applied in dc motor, battery,UPS power supply, dc switchgear, dc panel, industrial control system.
Color : One Color
CurrentRating : 6 amps
ExternallyAssignedProductIdentifier : 9010061852075
ExternallyAssignedProductIdentifier1 : 748018730051
ExternallyAssignedProductIdentifier2 : 0748018730051
IncludedComponents : inc

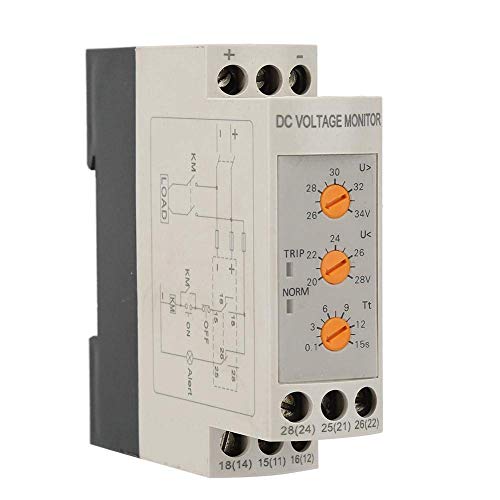

ItemName : Voltage Monitoring Relay DC 12V/24V/36V/48V Over-Voltage and Under-Voltage Relay 35MM Rail 13-17V 10-14V(DC24V)
ItemPackageDimensions_Height : 8.636 centimeters
ItemPackageDimensions_Length : 2.794 centimeters
ItemPackageDimensions_Width : 8.382 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : phase-monitoring-relays
Manufacturer : YWBL-WH
Material : Plastic
MaximumSwitchingCurrent : 6 amps
MaximumSwitchingVoltage : 250 volts
MeasurementSystem : Metric
ModelName : ZCERA
ModelNumber : YWBL-WHamgsv40wqb-02
MountingType : DIN Rail Mount
NumberOfItems : 1
OperationMode : Automatic
PartNumber : YWBL-WHamgsv40wqb-02
ProductDescription : Features:
Standard modular structure, rail type installation Real-time monitoring of dc overvoltage and undervoltage faults No additional auxiliary power supply is required Both over  - voltage and under - voltage value can be adjusted Action time can be adjusted 2 sets of normally open and normally closed contacts 2 indicator lights indicate various working conditions Typical applications: dc motor, battery,UPS power supply, dc switchgear, dc panel, industrial control system

Specification:
function: over voltage, under voltage
Model: DVRD - 12/24/36/48(Optional)
Rated voltage: DC 12V/24V/36V/48V(Optional)
Monitoring circuit: direct current circuit
function: over voltage, under voltage
Overvoltage regulation range: 13-17v
Undervoltage adjustment range: 10-14v
Action delay range: 0.1-15s
Display mode: normal, action 2 LED lights indicate the working status
form: 2 set of normally open and normally closed contacts
capacity: 6A 250VAC (resistivity)
Installation: 35mm rail
Overall dimension: 79 × 23 × 79mm / 3.1 × 0.9 × 3.1in
Weight: 200 g / 7.1 oz(approx.)

Package list:
1 × Overvoltage Undervoltage Protector

ProductSiteLaunchDate : 2019-04-10T01:32:27.384Z
Size : DC24V
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
