Specification
Brand : Generic
BulletPoint1 : WITH TACHOMETER The photoelectric switch can be used with tachometer timer
BulletPoint2 : Powerful Features : The Photoelectric is an integrated and receiving photoelectric sensor. The light issued by the light and emitted, and the receiving head interprets the light and output of the reflection, which effectively avoids the interference of visible light
BulletPoint3 : MULTI ADVANTAGE The photoelectric has 3 Wires, which makes it easy to installment and layout the wires., pnp , ir sensors
BulletPoint4 : Good Adaptability: This photoelectric switch can be used with tachometer timer, and its excellent working performance is suitable for most tachometer timer.
BulletPoint5 : This photoelectric Output type is PNP 3 Wire, and is easy to layout wire,this photoelectric features high sensitivity,and good stability
Color : Multi
IncludedComponents : No

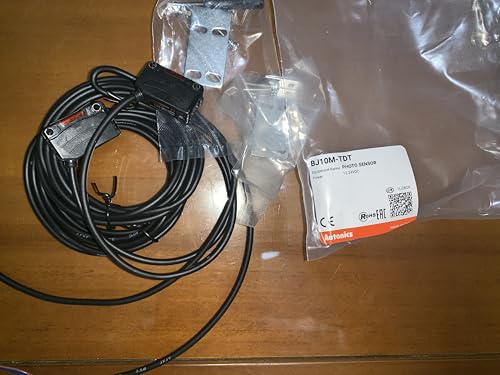

ItemName : BJ10M-TDT Autonics photo sensor
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 9 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemTypeKeyword : electronic-component-photoelectric-sensors
Manufacturer : Generic
ModelName : Genericrt1a7n3ued
ModelNumber : Genericrt1a7n3ued
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : PHS-AFEF8904CAA98E2E313CF2BBC914FE89
ProductDescription : Detection type: through-beam type
Detection distance: 10m
Detection object: Opaque object Min.12mm
Light source: red LED (660nm)
Response time: Max.1ms
Power supply voltage: 12-24VDC10% (ripple P-P: Max.10%)
Action mode: Light ON/Dark ON (switch setting)
Control output: NPN open collector
Detection type through-beam type
Detection distance 10m
Detection object Opaque object Min.12mm
Light source: red LED (660nm)
Response time Max.1ms
Power supply voltage 12-24VDC10% (ripple P-P: Max.10%)
Current consumption light emitter/receiver: Max.20mA
Sensitivity adjustment Sensitivity adjuster
Action mode Light ON/Dark ON (switch setting)
Control output NPN open collector
Connection cable type: wiring lead type (3.5, 2m)
Ambient illuminance Sunlight: Max.11,000lx, Incandescent lamp: Max.3,000lx (light receiving surface)
Ambient temperature -25~55, storage: -40~70
Protection grade IP65
Certification
Environmental humidity 35~85%RH, storage: 35~85%RH
Material Shell: PC+ABS, LED cap: PC, Detection department: PMMA,
Bracket: SUS304 (304 stainless steel), bolt: SCM, nut: SCM,
Nut: nickel-plated brass
Accessories_Universal Fixing Bracket, Bolt, Nut, Sensitivity Adjuster
ProductSiteLaunchDate : 2024-10-13T16:46:51.124Z
Size : 6.10X5.00X0.70CM
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
