Specification
Brand : Heschen
BulletPoint1 : Supply Voltage: 90-250VAC; Load Rating: 3A 250VAC
BulletPoint2 : Detection Range: 30cm ±10%; Detection Range Regulation: Sensitivity Adjuster
BulletPoint3 : Relay output: AC illuminate
BulletPoint4 : Detection Target: Transparent/Opaque Object
BulletPoint5 : Detection Method: Diffuse Type
ConnectivityProtocol : Infrared
ExternallyAssignedProductIdentifier1 : 670534170229
ExternallyAssignedProductIdentifier2 : 0670534170229

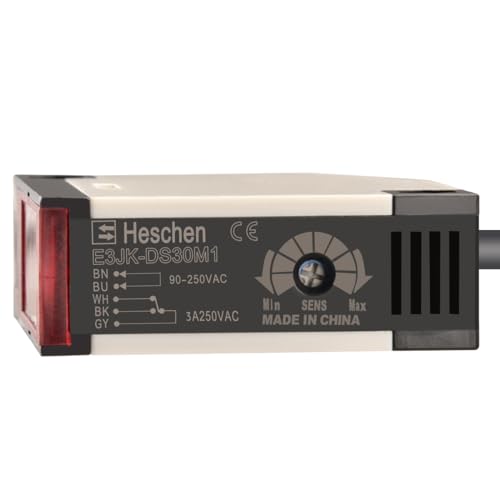

ItemName : Heschen Photoelectric Sensor Switch E3JK-DS30M1 AC90-250V Diffuse Type Detection Distance 30cm
ItemPackageDimensions_Height : 2.4 inches
ItemPackageDimensions_Length : 3.7 inches
ItemPackageDimensions_Width : 3.3 inches
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-photoelectric-sensors
Manufacturer : Heschen
Material : copper
Material1 : Acrylonitrile Butadiene Styrene
Material2 : Brass
ModelNumber : E3JK-DS30M1
NumberOfItems : 1
OutputType : Relay
PartNumber : E3JK-DS30M1
ProductDescription : Characteristic parameters:

Respnose time: 30ms

Connectin delay:1.5ms

Supply voltage:DC type: AC110-220V(90-250V)50/60Hz

Light source: Infrared light 660nm

Power current: 3V below

Control output: 2A below(contact service life: 0.1 million times)

Impulsion and vibration are allowed: B<30g,T<11ms, f<55Hz, a<1mm

Insulation impedance: 50Mohm above between charging part and housing

Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing

Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance; Temperature range-25～＋60℃, at +23℃, ±10% detection distance

Voltage influence: Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance.

Protection structure: IP65(IEC specification)

Material: Housing: Nickel plated brass(ABS) Detection surface(lens): PMMA

ProductSiteLaunchDate : 2020-06-05T07:36:25.268Z
SensingMethod : Diffuse
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
