Specification
Brand : Omron
BulletPoint1 : Products that we ship is a Japan version. There may be only a Japanese manual, if manufacture produced only for using in Japan.
Even if you are injured using this, we shall not be responsible for any loss, damages and troubles.
Since the shipment from Japan, it will take time to delivery. We have the case that we cannot ship depending on a delivery place.
BulletPoint2 : It is not in stock or the case of shipping in the next business day after, we will contact you by e-mail.
9:00 to 18:00(JST): Business hours (Saturday and Sunday, Spring holidays , Summer holidays, the New Year will be closed)
BulletPoint3 : 1,000 watts tungsten / 8.3 amps tungsten
BulletPoint4 : Housed in sonic-welded polycarbonate
BulletPoint5 : Exterior comes in a light gray color
ExternallyAssignedProductIdentifier : 4548583746695
ExternallyAssignedProductIdentifier1 : 815181011246
ExternallyAssignedProductIdentifier2 : 0815181011246
ExternallyAssignedProductIdentifier3 : 00815181011246

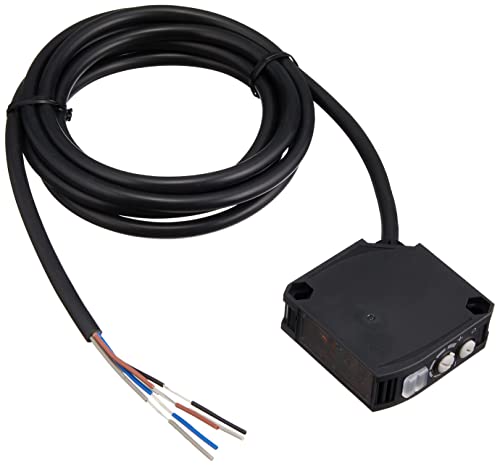

ItemName : Omron E3JK-RR12-C 2M Photoelectric sensor (with bracket and reflector), Retro-reflective (without MSR function), Sensing distance 6m, Red LED, Relay output SPDT
ItemPackageDimensions_Height : 12.2 centimeters
ItemPackageDimensions_Length : 6.4 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-photoelectric-sensors
Manufacturer : OMRON
Material : methacrylate
ModelNumber : E3JK-RR12-C 2M
NumberOfItems : 1
OutputType : Relay
PartNumber : E3JK-RR12-C 2M
ProductDescription : [Shape] Square type
[Sensing method] Retro-reflective with M.S.R. function
[Sensing distance] 100 mm to 6 m (When using the E39-R1)
100 mm to 10 m (When using the E39-R2)
[Standard sensing object] Opaque 75 mm dia. min. (When using the E39-R1)
Opaque 100 mm dia. min. (When using the E39-R2)
[Directional angle] 1.5 DEG min.
[Light source] Red LED (Emission wave length: 624 nm)
[Power supply voltage] 24 to 240 VDC +/-10% (ripple (p-p) 10% max.)
24 to 240 VAC +/-10% 50/60 Hz
[Power consumption] 2 W max.
[Control output] Relay output
5 VDC 10 mA min./250 VAC 3 A (cos Phi =1) max.
[Life expectancy (relay output)] Electrical: 100 thousand times or more (switching frequency 1800 times/hour)
Mechanical: 50 million times or more (switching frequency 18000 times/hour)
[Operation mode] Light-ON/Dark-ON selectable
[Protective circuit] Mutual interference prevention
[Response time] 20 ms max.
[Sensitivity setting] Single-turn adjustment
[Ambient illuminance] Incandescent lamp: 3000 lux max., Sunlight: 11000 lux max.
[Insulation resistance] 20 M Ohm min. at 500 VDC
[Dielectric strength] 1500 VAC at 50/60 Hz for 1 min
[Vibration resistance] 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
[Shock resistance] 500 m/s**2 for 3 times each in X, Y, and Z directions
[Degree of protection] IEC: IP64
[Connection method] Pre-wired models (Cable length: 2 m)
[Indicator] Operation indicator (orange), Stability indicator (green)
[Weight (packed state)] Approx. 180 g
[Material] Case: ABS
Lens: Methacrylate resin
Display: Methacrylate resin
Volume method: POM
Cable: PVC

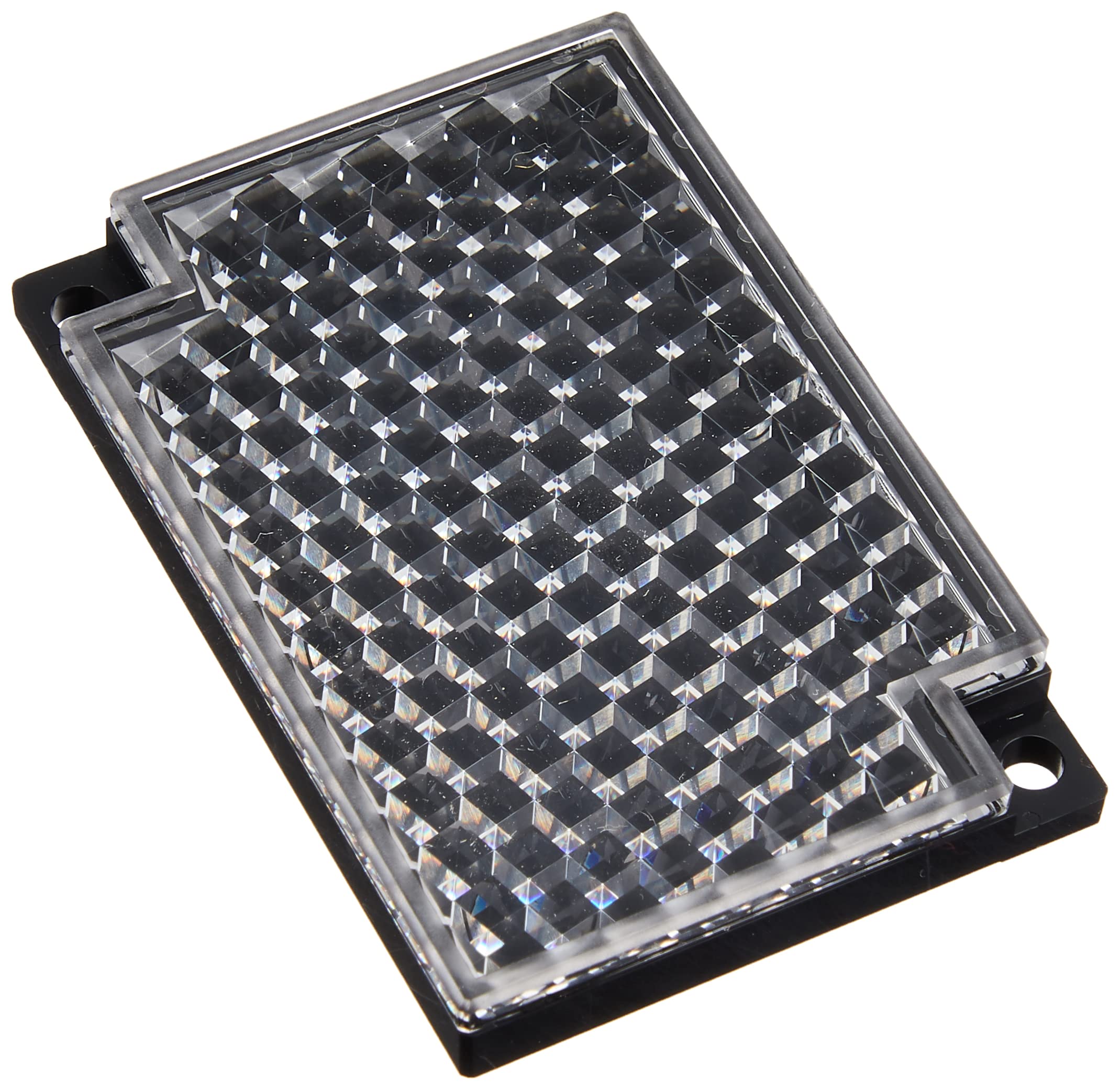

[Accessories] Instruction manual, Mounting bracket, Reflector



1
ProductSiteLaunchDate : 2017-03-05T08:00:00.000Z
SensingMethod : Thru-Beam
StreetDate : 2017-05-15T00:00:01Z
Style : Industrial
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
