Specification
AgeRangeDescription : adult
Brand : Omron
BulletPoint1 : IP/NEMA Rating: 4X, 6
BulletPoint2 : Type: Background Rejection, Proximity, Photoelectric
BulletPoint3 : Volts DC Range: 10 - 30
Color : One Color
Department : unisex-adult
ExternallyAssignedProductIdentifier : 9430564129229
ExternallyAssignedProductIdentifier1 : 4547648357418
ExternallyAssignedProductIdentifier2 : 04547648357418

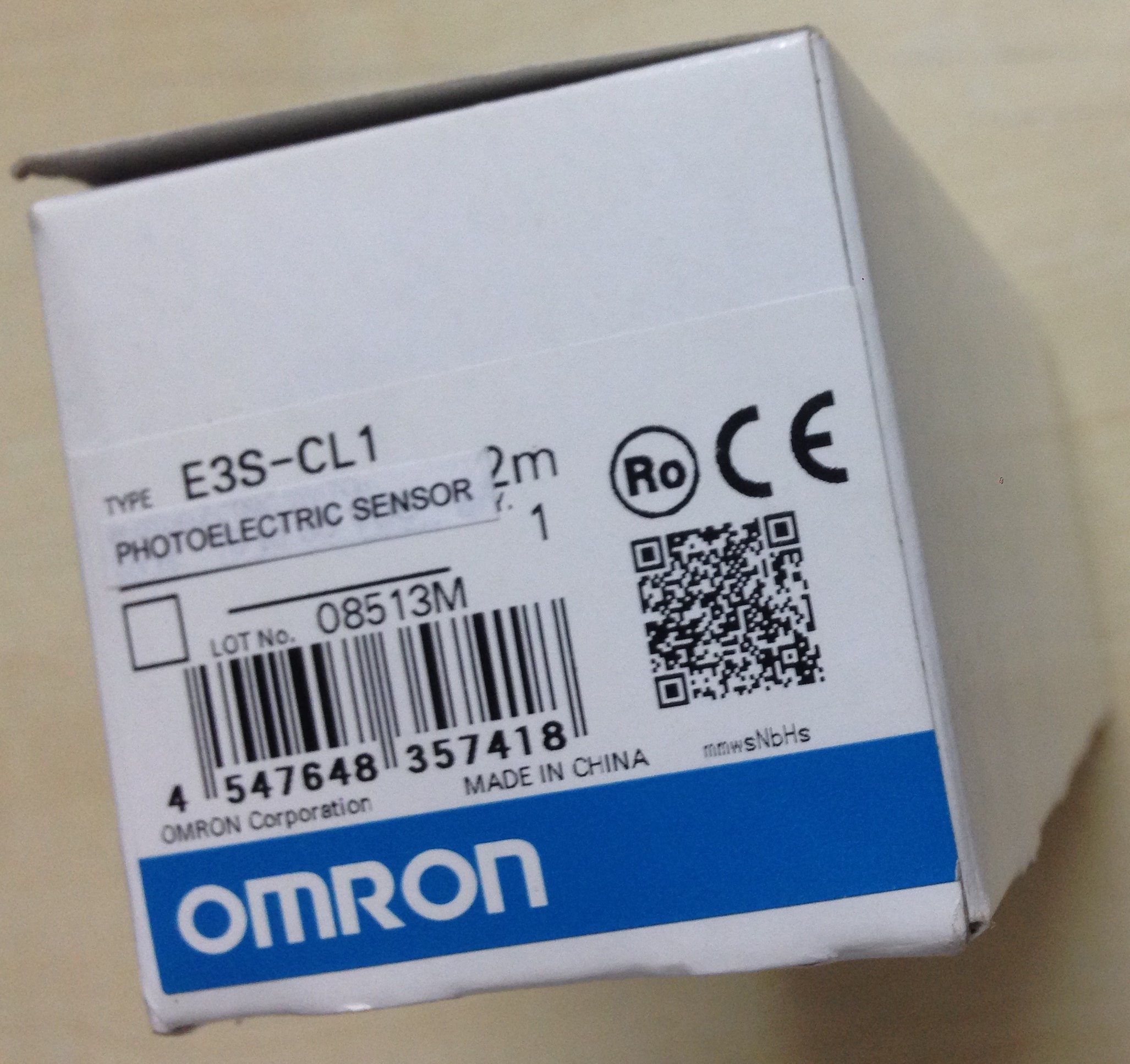

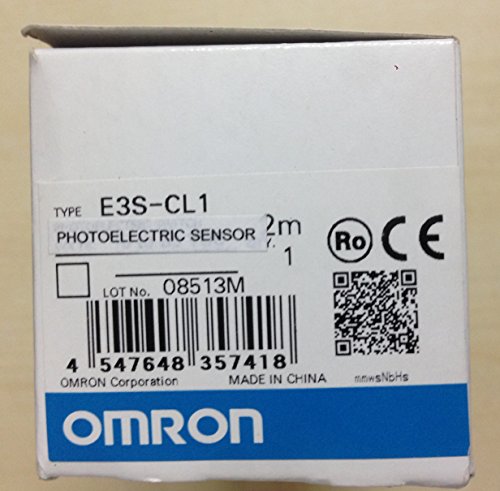

ItemName : Omron E3S-CL1 2M Photoelectric sensor
ItemPackageDimensions_Height : 13.2 centimeters
ItemPackageDimensions_Length : 5.1 centimeters
ItemPackageDimensions_Width : 5.6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-photoelectric-sensors
Manufacturer : OMRON
Material : copper
ModelName : RSBHBBHW
ModelNumber : sensor fotoelectrico
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : E3S-CL1 2M
PowerSourceType1 : Corded-Electric
PowerSourceType2 : Solar
ProductDescription : [Sensing method] Distance-setting
[Sensing distance] 5 mm to 200 mm
[Setting range] 40 to 200mm
[Differential distance] 2% Max. of setting distance
[Reflectivity characteristic (black-white error)] 2% Max. of setting distance
[Light source] Red LED (Emission wave length: 700nm)
[Power supply voltage] 10 to 30 VDC (ripple(p-p) 10% included)
[Current consumption] 35mA DC Max.
[Control output] Output type: NPN/PNP open collector output
Load current: 0 to 100 mA
[Control output (Residual voltage)] (DC) 1.2 V Max. (NPN output, Load current 100mA Max.)
(DC) 2 V Max. (PNP output, Load current 100mA Max.)
[Operation mode] Light-ON/Dark-ON selectable
[Load power supply voltage] 30 VDC Max.
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
Mutual interference prevention
[Response time] 1ms Max.
[Sensitivity setting] 6-turn endless adjustment (with indicator)
[Ambient illuminance] Incandescent lamp:5000 lux Max., Sunlight:10000 lux Max.
[Insulation resistance] 20 M OHM Min. at 500 VDC between charged parts and the case
[Dielectric strength] 1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
[Conformed standard (EC Directive (CE marking))] Equipped
[Connection method] Pre-wired models (Cable length: 2 m)
[Indicator] Light indicator(orange), Stability indicator(green)
[Weight (packed state)] Approx. 170 g
[Tightening torque] 1.2 N.mMax. (with M4 screw)
[Accessories] Instruction manual, Mounting bracket, Adjustment driver, Hexagon bolt M4*12(with Spring washers, Flat washers)


(1)
ProductSiteLaunchDate : 2014-02-15T08:00:00Z
Size : One Size
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 39121500
