Specification
Brand : Oumefar
BulletPoint1 : 【EXTENSIVE APPLICATIONS】: This 5Pcs IR infrared obstacle avoidance sensor module can be widely used for robot obstacle avoidance, obstacle avoidance car, assembly line, black and white line tracking and many other occasions
BulletPoint2 : 【MULTIPLE WORKING METHOD】: This IR infrared obstacle avoidance sensor module output port OUT can be directly connected to micro-controller IO port, which also can drive a 5V relay directly
BulletPoint3 : 【LOW NEGATIVE IMPACT】: The detection range of this IR photoelectric obstacle avoidance sensor can be adjusted with potentiometer, which has little interference, and this avoidance sensor module is easy to assemble
BulletPoint4 : 【ADJUSTABLE FUNCTION】: When module detects obstacles ahead, the green indicator light on the circuit board is on and at the same time the OUT port outputs low level signal; detection distance can be adjusted with potentiometer, clockwise to increase detection distance
BulletPoint5 : 【NOTE】: Active infrared reflection detecting sensor, so the target reflectivity and shape is the key of the detection range.Black color has the minimum detection range, white has the maximum; small objects have short detection range, large objects have long detection range
ExternallyAssignedProductIdentifier : 8475896950746

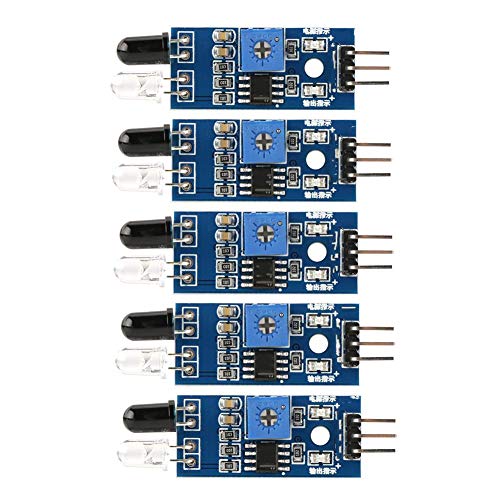

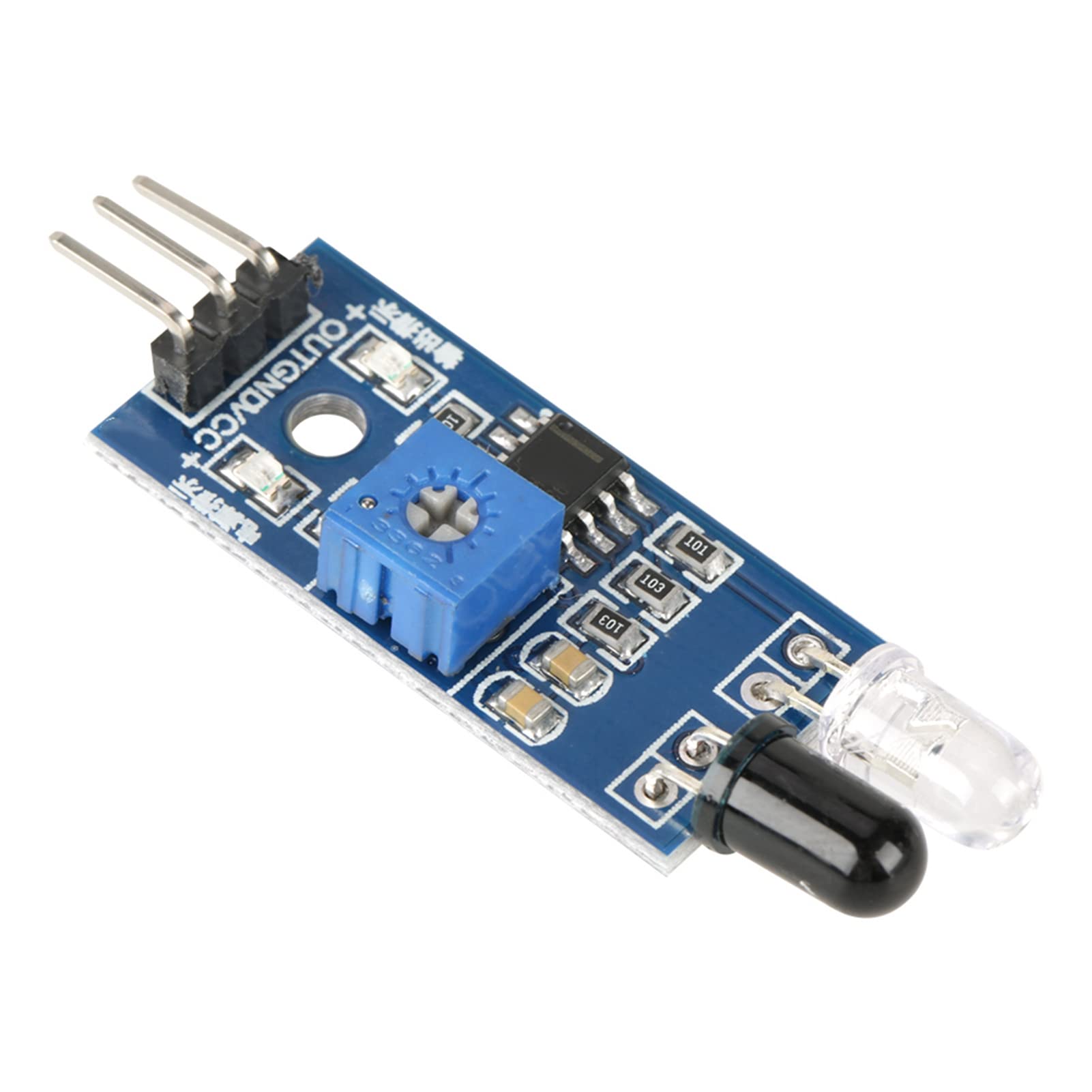

ItemName : Oumefar 5Pcs IR Infrared Obstacle Avoidance Sensor Module Infrared Barrier Module Sensor Switch Reflective IR Photoelectric Barrier Light Intensity DIY Kit for Smart Car Robot IR
ItemPackageDimensions_Height : 10.2 centimeters
ItemPackageDimensions_Length : 2.7 centimeters
ItemPackageDimensions_Width : 6.5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-photoelectric-sensors
Manufacturer : Oumefar
Material : Copper
ModelNumber : Oumefar9wv2thncq1
PartNumber : Oumefar9wv2thncq1
ProductDescription : Description:

The sensor module is adaptable to ambient light. It has a pair of infrared transmitting and receiving tube. Transmitting tube sends out a certain frequency IR which will be reflected when detecting obstacles (reflecting surface) and received by receiving tube. After processing with comparator circuit, green light is on and output interface outputs digital (a low voltage level ).  Detection distance can be adjusted with the potentiometer, effective distance range 2~60cm, working voltage 3.3V to 5V.

Specifications:
Working Voltage: 3.3~5V
Detecting Range: 2~30cm

Detection Angle: 35°

Wiring: VCC-VCC; GND-GND; OUT-IO

Size: 4*1.5cm/1.5*0.6in

Quantity: 5pcs

Weight: 3g(approx.)

Module Interface:
VCC: External connection of 3.3V-5V voltage(can be directly connected to 5V micro-controller and 3.3V micro-controller)
GND: External GND

OUT: Digital output port(0 and 1)

Package Includes:
5 x Modules



ProductSiteLaunchDate : 2020-08-07T11:28:15.201Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 39120000
