Specification
Brand : Q-BAIHE
BulletPoint1 : 1500W powerful amplifier board with 28 tubes (14pcs TTC5200 + 14pcs TTA1943 ) and heatsink
BulletPoint2 : Voltage: DC Dual 28-135V, recommended DC dual 110V. > 900W
BulletPoint3 : [COMPACT & EASY INSTALLATION] The HD digital audio power amplifier board is small and practical, offering simple installation for enhancing sound quality effortlessly.
BulletPoint4 : [IMPRESSIVE POWER] With channels, this digital audio power amplifier board delivers a peak power of 30W+30W, catering to different audio systems and DIY speaker setups.
BulletPoint5 : [WIDE APPLICATION] for audio systems, household power systems, and DIY speaker projects, providing a seamless audio performance across various setups.
Color : #411
ExternallyAssignedProductIdentifier : 6256294960047
IncludedComponents : Amplifier+Tubes+Heatsink

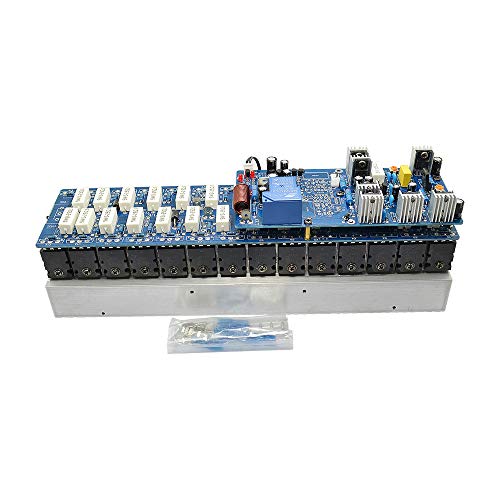

ItemName : HiFi 1500W Powerful Mono Amplifier Amp Board with Tubes and Heatsink
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : power-amplifiers
Manufacturer : Q-BAIHE
ModelName : Anggrekm5ufvdy9hb
ModelNumber : KXYX-1500W+Tubes+HS
NumberOfBoxes : 1
NumberOfChannels : 1
NumberOfItems : 1
PartNumber : KXYX-1500W+Tubes+HS
ProductDescription :
Description:
With 28 tubes (14pcs TTC5200 + 14pcs TTA1943 )
With heatsink
This is finished board,no need solder it.
Entered using IC JRC5532D, power output using 12 pcs TTC5200 and 12pcs TTA1943,slurcocks using 2pcs TTC5200 and 2pcs TTA1943.
Voltage: DC Dual 28-135V, recommended DC dual 110V. > 900W
Technical parameters:Output Power --- 8: 1500W
Frequency Response: +0 dB/-0.8dB (20Hz ~ 20KHz)
Total harmonic distortion: <0.5% 8 20Hz ~ 20KHz
SNR: (20Hz - 20KHz): A-weighted, full power output> 98dB
Bear instantaneous response: 25V/S
Damping 8: 10Hz-400Hz:> 200
Crosstalk between channels: 1kHz: -76 dB / 20kHz:-58dB
Input impedance: 20K (Balanced) / 10K (Unbalanced)
Input Sensitivity: 1.25V/4 rated power
Input Voltage:DC+/-28---+/-135V (recommend DC+/-110V)

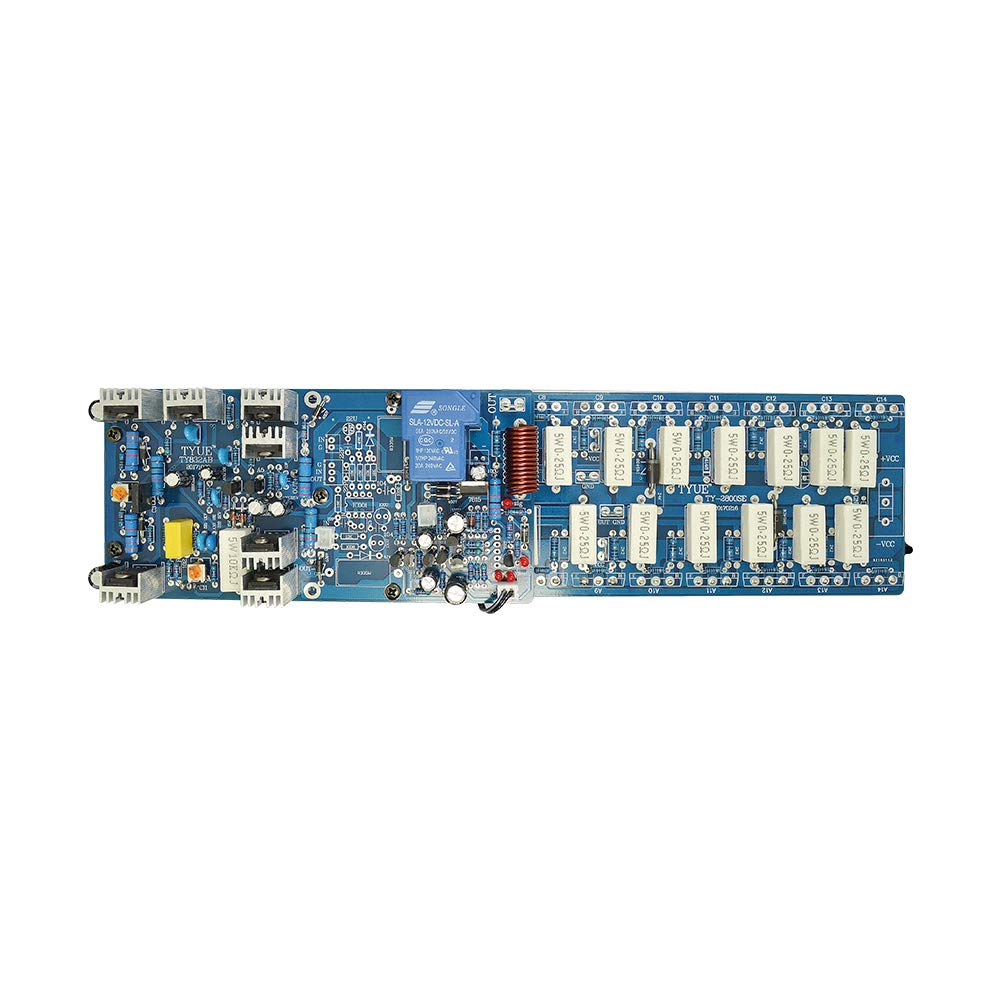

PCB size: slurcock:143 x 78mm, amp board: 305 x 78mm
Protection power supply.DC 12-15V


For the long working time,please add fan to cooling.
This board will be test well before sending.


1, the amplifier protection circuits are integrated on the board, so you do not have connections.
2, It has power on speaker delay.
3,It has led diode on protection circuit (With CLIP SIG PRO POWER indicator Interface)
4, It can work on 4ohms and 8ohms ,no need to change tiansistor resistors if want to connect 4ohm speaker on it.
Package:
1x 1500W Amplifier Board with 28 tubes and heatsink
