Specification
Brand : Jauarta
BulletPoint : Length: 116.8 mm Width: 61 mm Height: 12.7 mm Industry: Industrial
BulletPoint1 : The module supports status selection function parallel port and serial port mode and power
BulletPoint2 : The RF digital attenuator has a step of 0.5dB and a total of 6 bits. The controllable range is 0‑31.5dB, which can be used to control strength and also for modulation
BulletPoint3 : Adopt 1.6mm thick PCB double sided board, sturdy and , come with long service life
BulletPoint4 : The product have large heat dissipation area, stable and long running time
BulletPoint5 : Insertion loss for only 2dB (typical value), maximum input is 20dBm (100mW), bring excellent performance
Color : One Color
ExternallyAssignedProductIdentifier : 7320529024466
IncludedComponents : product itself

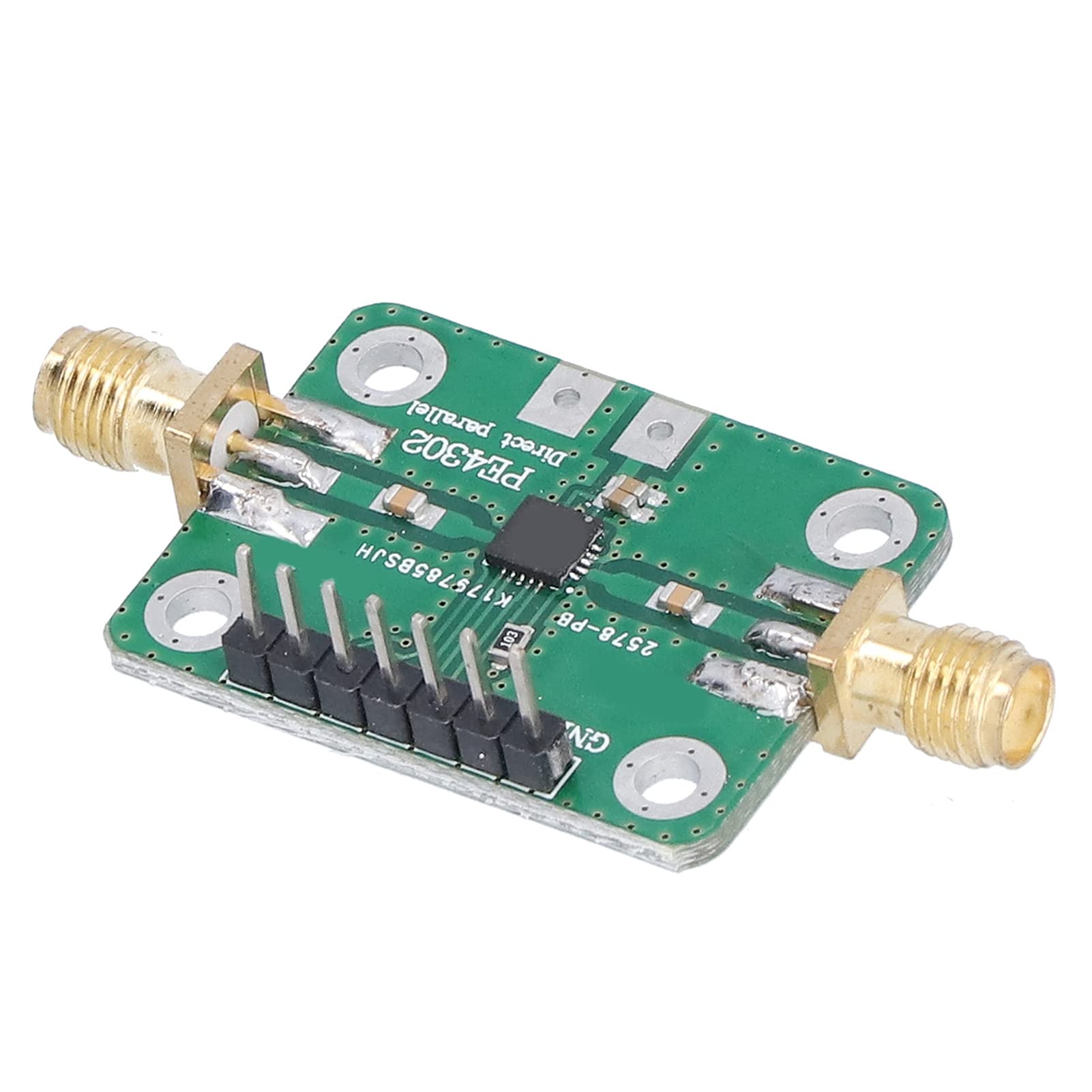

ItemName : Attenuator Module Numerical Control RF Parallel Serial Mode 1MHz‑4GHz 3.3V 6 Bit PE4302
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-entry-modules
Manufacturer : Jauarta
ModelName : Jauartafmo4nr3i9z
ModelNumber : Jauartafmo4nr3i9z
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Jauartafmo4nr3i9z
ProductDescription : Specification:
Item Type: Attenuator Module
Material: PCB
Purpose: RF attenuator
Model: PE4302
Power Supply Voltage: 3.3V
Bandwidth: 1MHz~4GHz(the attenuation value will be different under different frequencies)
Control Bits: 6 Bit
Control Step: 0.5dB
Control Range: 0-31.5dB
Insertion Loss: 2dB(typical value)
Ascent Speed: 0.2us
Decline Speed: 0.2us
Maximum Input: 20dBm(100mW)

packing list:
1 x Attenuator Module

Notice:
Do not use outside the current, voltage, and frequency range.
ProductSiteLaunchDate : 2024-12-30T17:06:28.977Z
Size : One Size
SupplierDeclaredDgHzRegulation : other
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26111700
WarrantyDescription : Manufacturer warranty for 90 day
