Specification
Brand : Generic
BulletPoint : LM2596S Step-down Module DC-DC Adjustable Voltage Regulator Power Supply Module With Digital Display
CurrentRating : 1.5 amps
ItemName : LM2596S Step-Down Module DC-DC Adjustable Voltage Regulator Power Supply Module with Digital Display
ItemTypeKeyword : power-entry-modules
Manufacturer : Generic
Material : iron
PartNumber : Lile_HFN_1961
ProductDescription : Product description

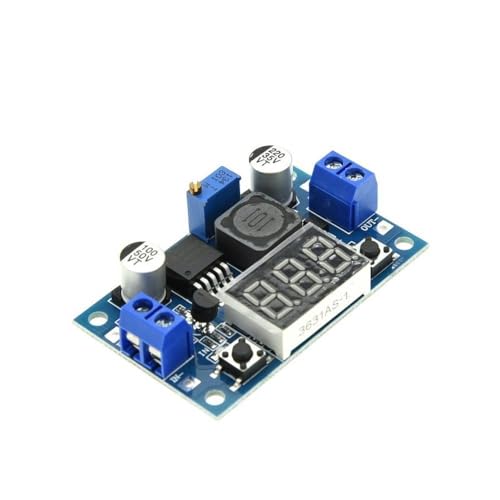

LM2596S high-power step-down module DC-DC adjustable voltage regulator power supply module with digital display and power indicator


●With voltmeter display, using advanced microprocessor, the voltmeter error is ±0.05V, and the range is 0~40V. (
Notes:
To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4V)


Touch the right button to switch the measurement input or output voltage, and there is an indicator light to show which voltage is being measured, and save the settings, even if the power is turned off and then turned on again


The voltmeter can be turned off, and it can be easily achieved by pressing the left button when it is not needed


●With terminals, it is easy to use without a soldering iron, and the soldering wire connection points are reserved


Input voltage 4.0~40V (The input voltage must be more than 1.5v higher than the output voltage.)


●The adjustable output voltage range is 1.25V～37V continuously adjustable (the input voltage must be 1.5V higher than the output voltage)


●The maximum output current can be as high as 3A, and the normal stable working current is 2A


●Using 150KHz internal oscillation frequency, it belongs to the second generation switching voltage regulator, with low power consumption and high efficiency.||
