Specification
Brand : Generic
BulletPoint : 220V/230V 50HZ 10(40)A Single Phase Din Rail Kwh Meter Digital Energy Din-rail Monitor Din-rail Watt-hour-meter

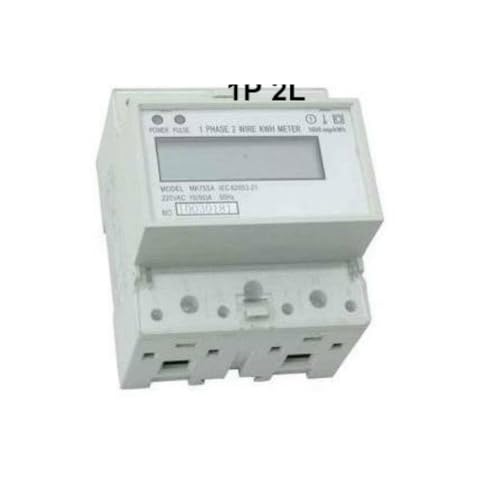

ItemName : 220V/230V 50HZ 10(40) A Single Phase Din Rail Kwh Meter Digital Energy Din-Rail Monitor Din-Rail Watt-Hour-Meter
ItemTypeKeyword : industrial-power-meters
Manufacturer : Generic
Material : Copper
PartNumber : WYQc_JNIO_2869
ProductDescription : 230V 50HZ 10(40)A single phase din rail kwh meter |General
DDS238-4 RS485 single phase din-rail energy meter can accurately and directly measure 50Hz/60Hz active energy consumption from single phase AC electricity net with features of good reliability, small volume, light weight, specious appearance, convenient installation, etc. All of the performances accord with the National Standard GB/T17215.321-2008 and International Standard IEC62053-21. RS485 communication interface and passive impulse output can remote copy data.
Function and features
1.Measuring single phase total active energy power.
2.LCD 7 digits display, 9999999.9(battery powered display is optional)
3.RS485 communication interface, baud rate is 1200bps
4.Passive impulse output 35mm standard DIN rail installation
Specifications
Technical Index
Specification
Input
Voltage
120V/220V/230V/240V
Rated value: 0.8-1.15Un
Power comsumption: 0.8W/5VA
Current
2.5(10)A,5(20)A,10(40)A,10(50)A,15(60)A,20(80)A,30(100)A, others can be customized.
Starting current: 0.4%lb
Power consumption:≤2VA
Accuracy
±1%
RS485 communication interface
2 wires RS485, communication baud rate 1200bps (DL/T645-1997 communication agreement)
Energy power impulse
Passive impulse output
Impulse constant: 800-3200imp/kwh
Pulse width: 80ms±5ms
Ambience
Working temperature: -25-+55
Storage temperature: -40-+70
