Specification
BatteriesRequired : 1
Brand : CNYST
BulletPoint1 : 1.Make comprehensive analysis and diagnosis of three-phase power quality.
BulletPoint2 : 2.4 types of current sensors provide options to application on various sites.
BulletPoint3 : 3.4-channels current and 3-channels voltage are measured simultaneously.
BulletPoint4 : 4.The test accuracy is 0.5 class, the test is stable and the anti-interference ability is strong.
BulletPoint5 : 5.Touch colorful screen, simple human-machine operation, and switch with different operation language(Chinese & English).
Color : Red and black
ExternallyAssignedProductIdentifier : 7696910106609
IncludedComponents : see detailed description

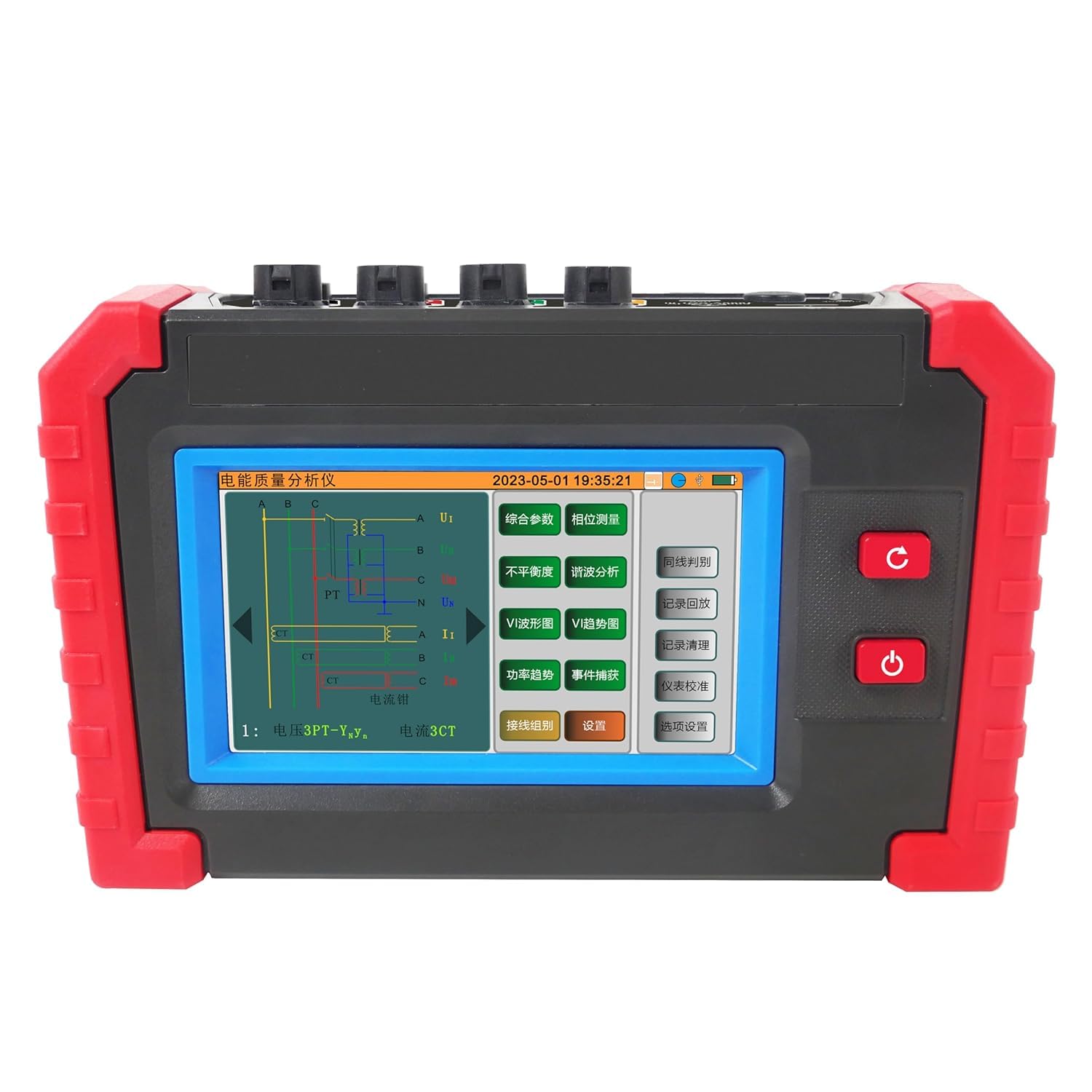

ItemName : CNYST 3 Phase Power Quality Analyzer Power Quality Monitor with Clamp Current Sensor 17mmX18mm Range 10mA~10.0A 4-Channels Current and 3-Channels Voltage are Measured Simultaneously
ItemPackageDimensions_Height : 15 centimeters
ItemPackageDimensions_Length : 45 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-power-meters
Manufacturer : 02025011003
Material : plastic
MeasurementAccuracy : see detailed description
ModelName : Srliya34t1nhyei8
ModelNumber : 02025011003
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 02025011003
PowerSourceType : Battery Powered
ProductDescription : Product Features
1.Make comprehensive analysis and diagnosis of three-phase power quality.
2.4 types of current sensors provide options to application on various sites.
3.4-channels current and 3-channels voltage are measured simultaneously.
4.The test accuracy is 0.5 class, the test is stable and the anti-interference ability is strong.
5.Touch colorful screen, simple human-machine operation, and switch with different operation language(Chinese & English).
6.USB communication uploads the recorded test results to the computer for analysis.
7.Equip with large capacity lithium battery.

Product Functions
1.Waveforms real-time display (3 channels voltages/4 channels currents).
2.True effective values(TRMS) of voltage and current.
3.Phase diagram display.
4.Each phase harmonics measurement, harmonic up to 50 orders.
5.The bar graph shows the harmonic content rate of each phase current and voltage. 6.Total harmonic distortion (THD).
7.Active/reactive/apparent power value and total value of each phase.
8.Voltage & current power trend chart.
9.Three-phase unbalance measurement (voltage and current).
10.Record wave forms and parameters.
11.Screenshot and save.
12.Touch screen operation.
13.Voltage flicker, voltage surge and voltage drop capture.
14.Starting current and surge current monitoring.
15.USB interface communicate with the computer host computer.
16.Setting the wiring connection method and power network type of the instrument.
17.Selecting different clamp current sensor and different voltage test ratio.
Technology Specifications
Power Supply: Rechargeable lithium battery 7.4V, 5200mAH, external charger
Display Mode :5 inch touch colorful screen
Working Current :About 490mA
Clamp Current Sensor Clamp current sensor : 17mmX18mm;
Meter Dimension: 240mmX170mmX68mm
Channel :3 channels voltage, 4 channels current
Voltage Range :2V~600V
Current Range :Clamp current sensor : 10mA~10.0A
Frequency :40Hz~70Hz
Harmonic :Yes, 2~51 orders
Total Harmonic Distortion: Yes, 2~51 orders, each phase
Three-Phase Unbalance :Yes
Communication Interface :USB
Language :Switch between Chinese and English
Battery Power Indication :Battery symbol will display battery power, when the battery power too low, the instrument will automatic shutdown Automatic Shut Down During record function acting, the meter will not automatic shutdown During record function off, can setting the automatic shutdown time of 15minutes, 30minutes, 60minutes.
Instrument Weight: Total weight: about 8kg (include all accessories)
Input Impedance: Test voltage input impedance: 1MΩ
Withstand Voltage: The instrument circuit and the housing can withstand 3700V/50Hz sine wave AC voltage for 1 minute.
Insulation: Between the instrument circuit and housing≥10MΩ
Structure :Double insulation, with insulation anti-vibration sheath
Suitable Safety Standard :IEC-61010 CAT III 1000V / CAT IV 600V, IEC-61010-031, IEC-61326, Pollution Degree 2
Working Temperature :-10℃~40℃; Below 80%RH
Storage Temperature: -10℃~60℃; Below 80%RH
Accessories :Host: 1PCS; Instrument bag: 1pcs; Pen probe test lines: 4PCS (each 1PCS of yellow, green, red, black); Alligator clip: 4PCS; Charger 1PCS; 4G Memory card: 1PCS. Clamp current sensor: (optional)

ProductSiteLaunchDate : 2025-01-08T08:00:00.000Z
Size : NO WIFI Meter
Style : Power Quality Analyzer
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43211900
