Specification
BatteriesRequired : 1
Brand : CNYST
BulletPoint1 : 1.Make comprehensive analysis and diagnosis of three-phase power quality.
BulletPoint10 : Digital power quality logger Operation Method The instrument must be set up before using. Please refer to this manual for setting content. The following precautions for using must be complied with: Do not measure to earth voltage exceeding 600V RMS. Before installing or removing the rechargeable battery, ensure that the instrument is not connected to any test wires and shut down.
BulletPoint2 : 2.4 types of current sensors provide options to application on various sites.
BulletPoint3 : 3.4-channels current and 3-channels voltage are measured simultaneously.
BulletPoint4 : 4.The test accuracy is 0.5 class, the test is stable and the anti-interference ability is strong.
BulletPoint5 : 5.Touch colorful screen, simple human-machine operation, and switch with different operation language(Chinese & English).
BulletPoint6 : Power Quality Analyser also named: Intelligent Three Phase Power Quality Analzer, Multifunctional Power Quality Analyzer and so on, which simultaneous with the functions of harmonic analyzer, phase volt-ampere meter, electric parameter tester. It apply to electricity industry, petrochemical, metallurgy, railway, mining enterprises, scientific research institution, metrological department. Especially suitable for comprehensive analysis and diagnosis on all the voltage, current, power, power, harmonic, phase electric parameters.
BulletPoint7 : Digital power quality analyzer Test Steps Power up the instrument. Set the voltage¤t ratio, select current sensor and the wiring connection type of power network. Connect the leads and current sensors to the instrument. Connect the neutral line of the current sensor to the neutral line of the tested circuit. Connect the voltage teste line of phase L1 to the phase L1 of power network, and the current sensor of phase L1 clamp on L1 line.
BulletPoint8 : Digital power quality meter Measurement Function AC Voltage value between equipment(Max up to 600V) AC current value(Max up to 1000A) Continue voltage, current value 50Hz or 60Hz power network Voltage & current multiple harmonics and total harmonics ratio(not include neutral line) Active power,reactive power(capacitive and inductive) and apparent power(not include neutral line) of each phase Power factor(PF) The harmonic of voltage and current(reach 51 orders, not include neutral line):harmonic ratio, total harmonic ratio, fundamental wave RMS Temperature monitor: display the instrument internal temperature. Phase measurement between voltage and current
BulletPoint9 : Digital power quality monitor Setting Function Set the time and date Power network wiring connection selection(single-phase, three-phase three-wires or four-wires) Voltage measure ratio and clamp current sensor selection (All or partial) data delete 50Hz and 60Hz power network selection Voltage & current unbalance formula selection
Color : Red and black
IncludedComponents : see detailed description

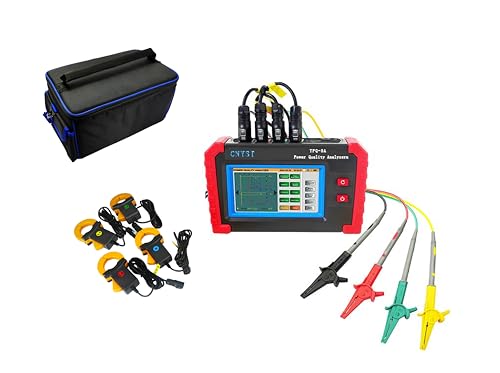

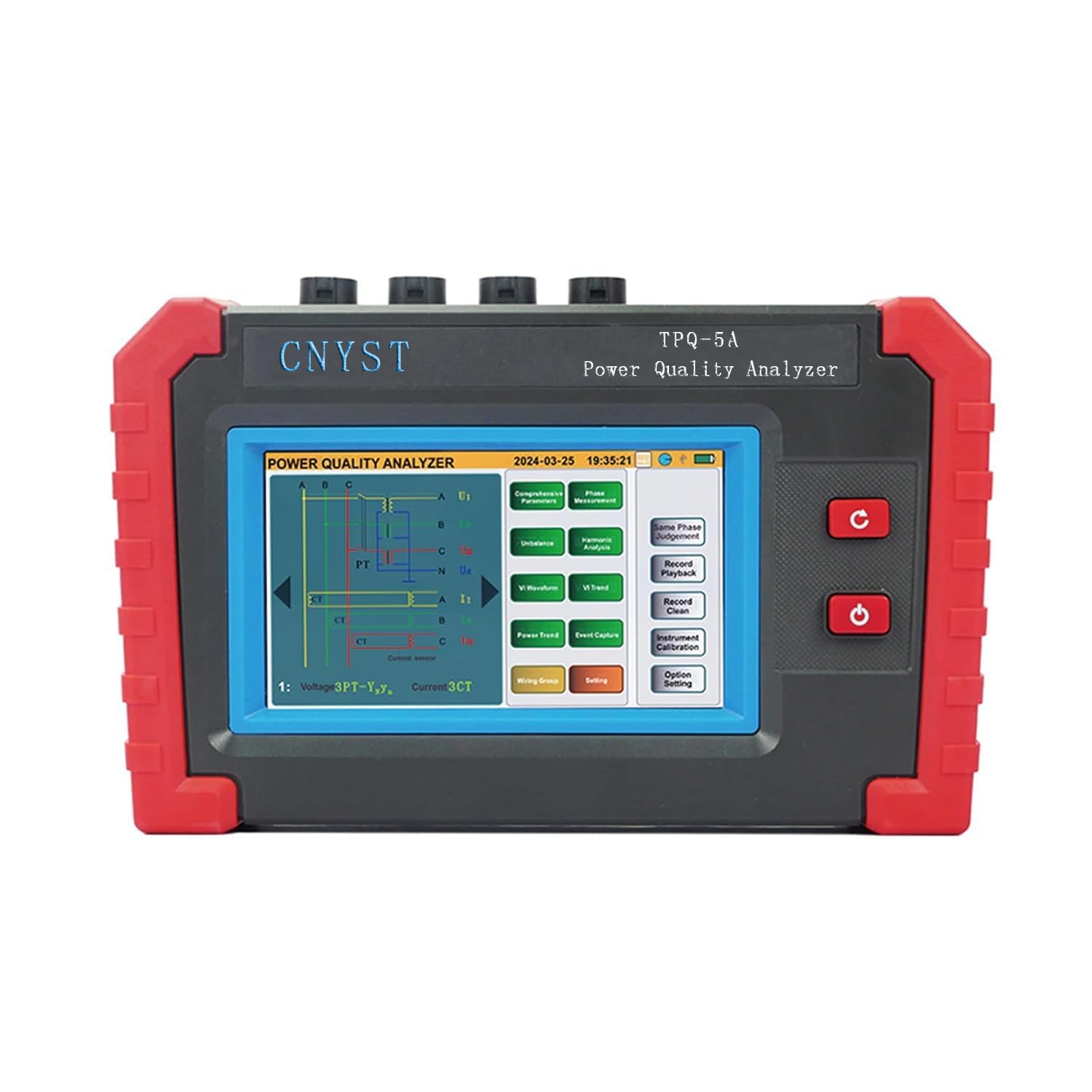

ItemName : CNYST 3 Phase Power Quality Analyzer Power Quality Monitor with Waveforms Real-time Display True Effective Values(TRMS) of Voltage and Current Phase Diagram Display Range 0.1A~100A
ItemPackageDimensions_Height : 15 centimeters
ItemPackageDimensions_Length : 45 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-power-meters
Manufacturer : 02025011303
Material : plastic
MeasurementAccuracy : see detailed description
ModelName : Kavoletc8dgvemyiz
ModelNumber : 02025011303
NumberOfItems : 1
NumberOfLithiumIonCells : 2
PartNumber : 02025011303
PowerSourceType : Battery Powered
ProductDescription : Product Features
1.Make comprehensive analysis and diagnosis of three-phase power quality.
2.4 types of current sensors provide options to application on various sites.
3.4-channels current and 3-channels voltage are measured simultaneously.
4.The test accuracy is 0.5 class, the test is stable and the anti-interference ability is strong.
5.Touch colorful screen, simple human-machine operation, and switch with different operation language(Chinese & English).
6.USB communication uploads the recorded test results to the computer for analysis.
7.Equip with large capacity lithium battery.

Product Functions
1.Waveforms real-time display (3 channels voltages/4 channels currents).
2.True effective values(TRMS) of voltage and current.
3.Phase diagram display.
4.Each phase harmonics measurement, harmonic up to 50 orders.
5.The bar graph shows the harmonic content rate of each phase current and voltage. 6.Total harmonic distortion (THD).
7.Active/reactive/apparent power value and total value of each phase.
8.Voltage & current power trend chart.
9.Three-phase unbalance measurement (voltage and current).
10.Record wave forms and parameters.
11.Screenshot and save.
12.Touch screen operation.
13.Voltage flicker, voltage surge and voltage drop capture.
14.Starting current and surge current monitoring.
15.USB interface communicate with the computer host computer.
16.Setting the wiring connection method and power network type of the instrument.
17.Selecting different clamp current sensor and different voltage test ratio.
Technology Specifications
Power Supply: Rechargeable lithium battery 7.4V, 5200mAH, external charger
Display Mode :5 inch touch colorful screen
Working Current :About 490mA
Clamp Current Sensor Clamp current sensor : 35X40mm;
Meter Dimension: 240mmX170mmX68mm
Channel :3 channels voltage, 4 channels current
Voltage Range :2V~600V
Current Range :Clamp current sensor : 0.1A~100A
Frequency :40Hz~70Hz
Harmonic :Yes, 2~51 orders
Total Harmonic Distortion: Yes, 2~51 orders, each phase
Three-Phase Unbalance :Yes
Communication Interface :USB
Language :Switch between Chinese and English
Battery Power Indication :Battery symbol will display battery power, when the battery power too low, the instrument will automatic shutdown Automatic Shut Down During record function acting, the meter will not automatic shutdown During record function off, can setting the automatic shutdown time of 15minutes, 30minutes, 60minutes.
Instrument Weight: Total weight: about 8kg (include all accessories)
Input Impedance: Test voltage input impedance: 1MΩ
Withstand Voltage: The instrument circuit and the housing can withstand 3700V/50Hz sine wave AC voltage for 1 minute.
Insulation: Between the instrument circuit and housing≥10MΩ
Structure :Double insulation, with insulation anti-vibration sheath
Suitable Safety Standard :IEC-61010 CAT III 1000V / CAT IV 600V, IEC-61010-031, IEC-61326, Pollution Degree 2
Working Temperature :-10℃~40℃; Below 80%RH
Storage Temperature: -10℃~60℃; Below 80%RH
Accessories :Host: 1PCS; Instrument bag: 1pcs; Pen probe test lines: 4PCS (each 1PCS of yellow, green, red, black); Alligator clip: 4PCS; Charger 1PCS; 4G Memory card: 1PCS. Clamp current sensor: (optional)
