Specification
AgeRangeDescription : adult
Brand : NutriEss
BulletPoint : Sensors
BulletPoint1 : [HIGH ENERGY EFFICIENCY] Measure energy consumption accurately from 0.01 to 99999KWH.
BulletPoint2 : [WIDE COMPATIBILITY] Works with AC power at frequencies of 50/60HZ for versatile applications.
BulletPoint3 : [MULTIFUNCTIONAL] Test electrical power, voltage, current, and more easily with this device.
BulletPoint4 : [CONVENIENT BACKLIGHT CONTROL] Easily turn on/off the backlight with a short press for visibility.
BulletPoint5 : [EASY DATA CLEARING] Clear energy readings by simply pressing and holding down the key for quick recalibration.
Color : One Color
ExternallyAssignedProductIdentifier : 7384619244325
IncludedComponents : No

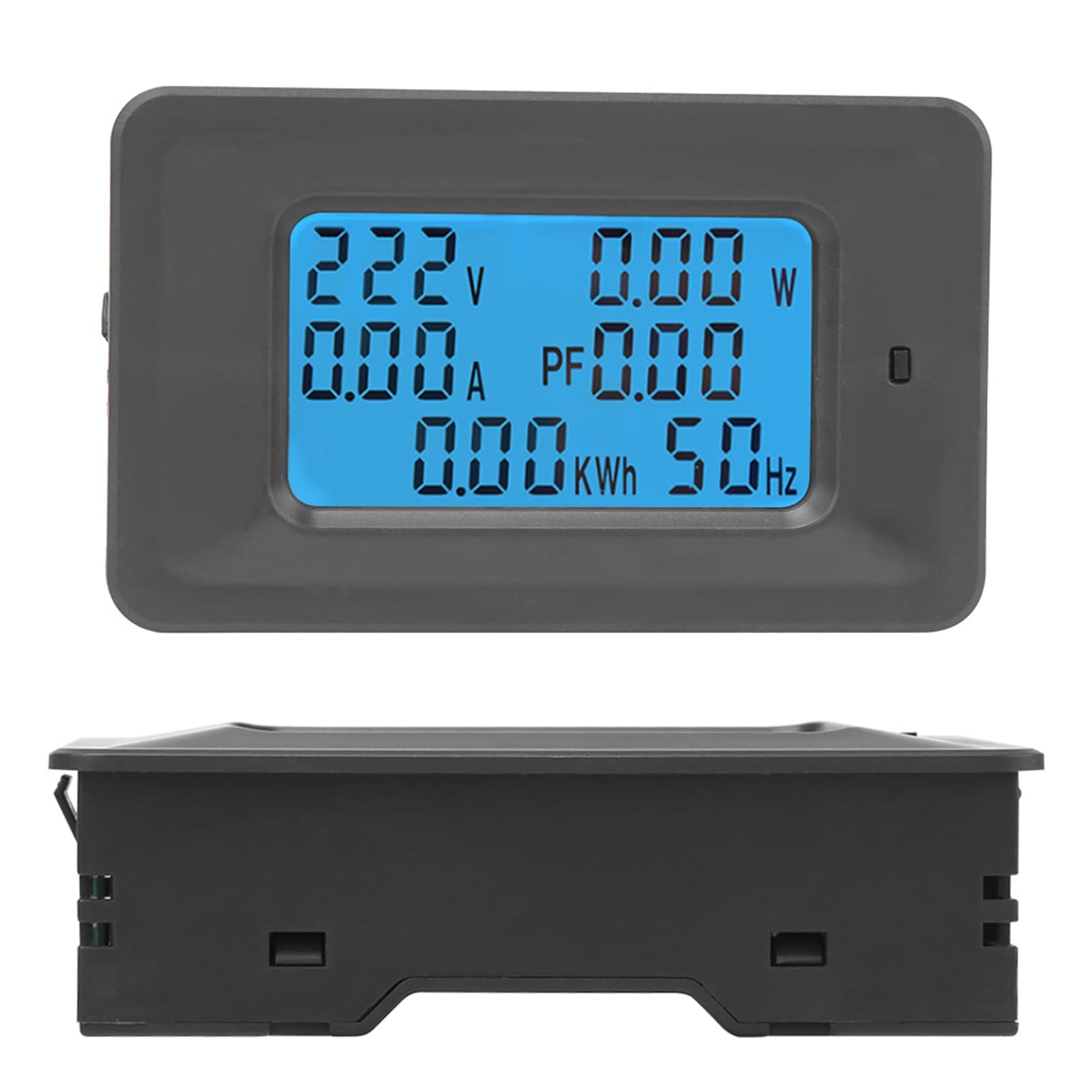

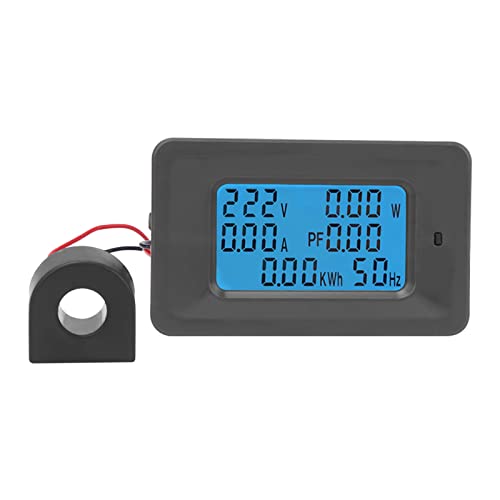

ItemName : Nutriess Digital Voltage Current Meter 6 in 1 LCD Display 100A Power Monitor Panel Mutual Inductor Accurate Measurement Versatile Use
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 11 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-power-meters
Manufacturer : NutriEss
MeasurementAccuracy : 0.1mm
ModelName : NutriEssetz41d5gur
ModelNumber : NutriEssetz41d5gur
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : NutriEssetz41d5gur
ProductDescription : Description:
This intelligent power monitor adopts integrated special-purpose chip. It is good instability and high in precision. It displays voltage effective value, current effective
value, active power, accumulated electric quantity, grid frequency and power factor in full screen, and can be widely used in civil and industrial fields.

Features:
Energy 5-digits, 0.01~99999KWH.
Compatible frequency 50/60HZ.
Can be connected with the test of eletrical power, voltage, current and so on.

Backlight control, short press to turn on/off backlight.
Clear energy reading, press and hold down the key to clear the reading of kWh.

Specifications:
Model: P06S-100
Name: 6 in 1 Voltage Meter
Max. Power: 22000W
Rated Power: 22000W
Standby Power: ＜1W
Max. Current: 100A
Rated Power: 100A
Voltage: 110~250V
Voltage Accuracy: ±1%
Current Accuracy: ±2%
Power Accuracy: ±2%
Size: Approx. 90 x 55 x 26mm / 3.54 x 2.16 x 1.02inch
Inner diameter of CT: Approx. 12.68mm / 0.5inch
Quantity: 1pc
Weight: 106g

Instructions of Button:
1. Click button to turn on or off background light.
2.Hold the button for 3 seconds to get overload power.
2.1 Go to the page of setting overload power(factory default is 4.4KW).
2.2 Flicker at highest position; click once to add 1; hold the button for 2 seconds for displacement; the maximum set value is 99.9KW.
2.3No on the button for 5 seconds, it will exit and save data.
3.Hold the button for 5 seconds, the system will reset, accumulated electric quantity is cleared, and the overload power is reset to default.

Instructions of Product:
1.Six major functions are displayed in full screen; background light flickers for warning overload power. When the current power is smaller than overload power, it will stop alarm.
2.P06S-20 and P06S-100 are different products, which cannot be used in the same way!
ProductSiteLaunchDate : 2025-03-16T06:53:59.012Z
Size : Paired 80A Cts
UnitCount : 1
UnspscCode : 43211900
