Specification
AgeRangeDescription : adult
Brand : ZVHZQEMMT
BulletPoint1 : Small size, light weight, good reliability and easy installation.
BulletPoint2 : 35mm standard DIN-rail mounting in accordance with standard DIN EN50022.
BulletPoint3 : Six widths (12.5mm modulus) in accordance with DIN43880.
BulletPoint4 : Standard configuration 5+1(99999.1KWh) digital display.
BulletPoint5 : The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
Color : One Color
ExternallyAssignedProductIdentifier : 9779122487297

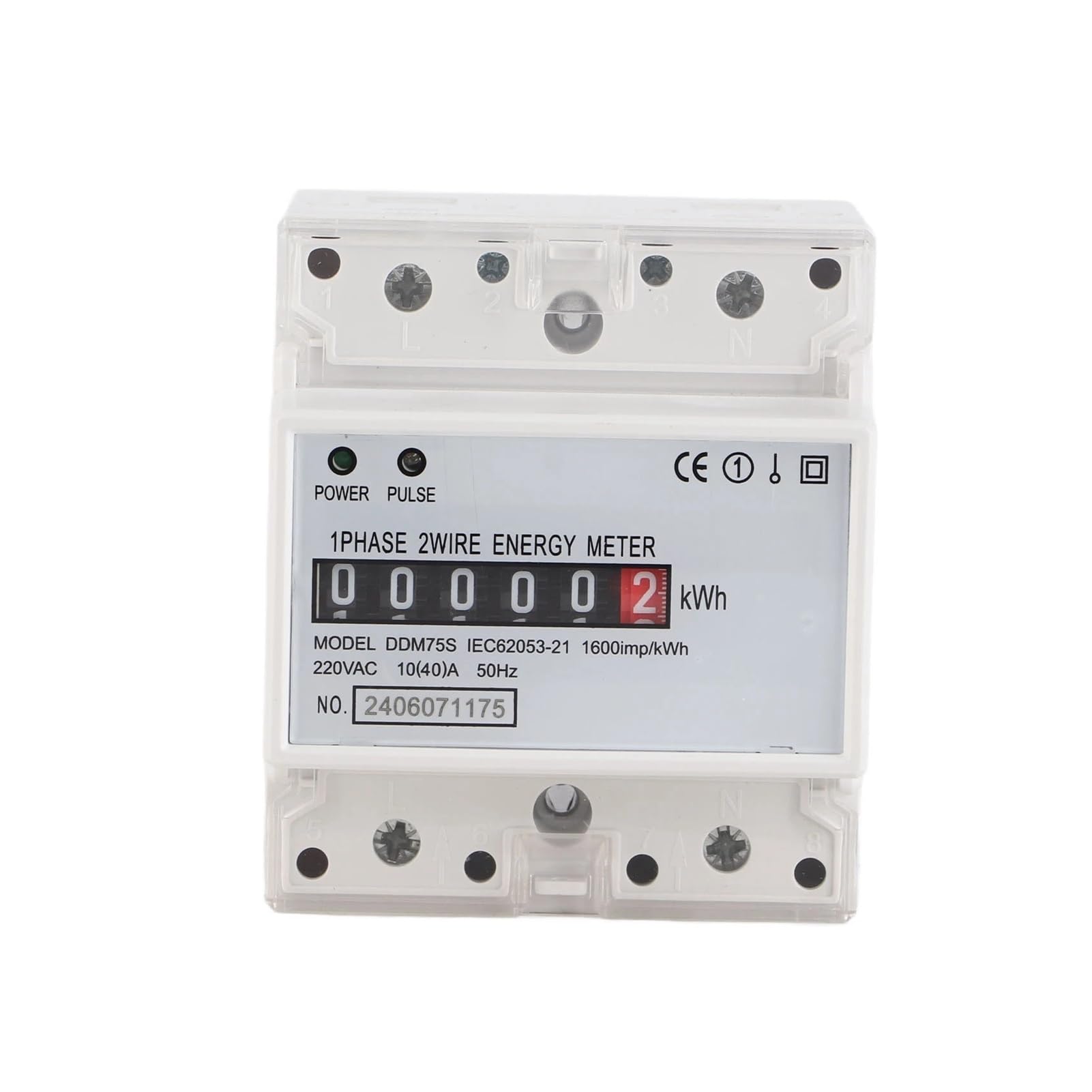

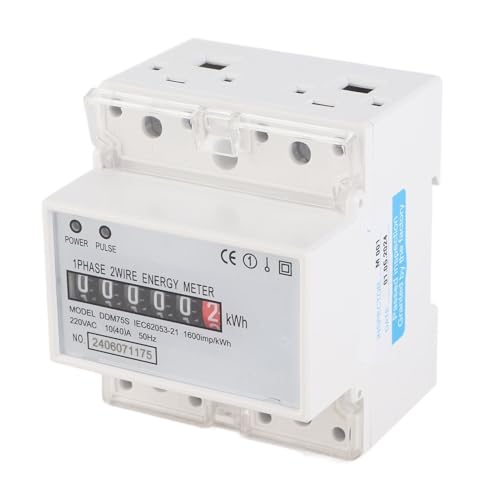

ItemName : ZVHZQEMMT Single Phase 4P LED Din Rail Electricity Power KWh Meter Consumption Wattmeter Energy Meter DDM75S 10-40A 220V Lucky
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-power-meters
Manufacturer : ZVHZQEMMT
ModelName : ZVHZQEMMT
ModelNumber : ZVHZQEMMT
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : ZVHZQEMMT
ProductDescription : Features:
Small size, light weight, good reliability and easy installation.
35mm standard DIN-rail mounting in accordance with standard DIN EN50022.
Six widths (12.5mm modulus) in accordance with DIN43880.
Standard configuration 5+1(99999.1KWh) digital display.
The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
Double color LED indicates the power status (green) and the energy pulse signal (red).
One-way measurement of single-phase two - wire active energy consumption. This has nothing to do with the direction of the load current. Comply with IEC 62053-21.
Direct connection operation, two wiring methods. Standard configuration S type wiring, U type wiring can be selected.
Extend the terminal cover to protect the use of the security.

Specification:
Item Type: Din Rail Energy Meter
Model: DDM75S
Frequency: 50/60Hz
Current Specifications: 10(40)A
Display mode: (5+1) digital display
Installation method: rail installation
Weight: 246 g / 8.7 oz(approx.)

Package List:
1 * Energy Meter
==========
Dimensions : Electronic KWh Meter
Output Voltage : 220V
Measuring Energy Range : DIN-Rail Electric Meter
Phase : single phase
Model Number : KWh Meter
Max Operating Current : 20A - 49A
Rated Voltage : 220V
Power Supply : AC
Display Type : Digital Only
DIY Supplies : ELECTRICAL
Origin : Mainland China
Welcome to buy our products
Thank you!
ProductSiteLaunchDate : 2025-03-06T13:35:41.050Z
Size : One Size
UnitCount : 1
UnspscCode : 52140000
