Specification
Brand : AHULIN
BulletPoint1 : 【Solid and Durable】 The housing is made of high-quality steel, which is solid, wear-resistant, rustproof, and impact-resistant, ensuring a long service life.
BulletPoint2 : 【Stable and Efficient】 The hydraulic electric pump is equipped with a powerful 12V DC motor for stable performance and quick start-up. So, It can provide strong power for hydraulic systems such as car elevators and lifters to achieve short-term lifting, greatly improving working efficiency.
BulletPoint3 : 【Low Noise】 The volume is low when it operates, giving you a quiet and comfortable working environment.
BulletPoint4 : 【High Performance】 It is a double-acting pump, which can be used to lift and lower the hydraulic system to effectively handle a lot of work.
BulletPoint5 : 【Compact and Lightweight】 It is compact and lightweight(31.96lbs), allowing it to be easily installed on electric basketball stands, snow sweepers, truck tailgates, etc. without being abrupt, and also making it easy to carry and move.
Color : Black
ExternallyAssignedProductIdentifier : 6967708525263
ExternallyAssignedProductIdentifier1 : 716252923799
ExternallyAssignedProductIdentifier2 : 0716252923799
FitType : Universal Fit
GpsrSafetyAttestation : 1
IncludedComponents : 1
IncludedComponents1 : 1* Hydraulic Electric Pump
IncludedComponents2 : 1* Connector
IncludedComponents3 : 1.* 4.5-meter Wired Control Handle
IncludedComponents4 : 1* English User Manual

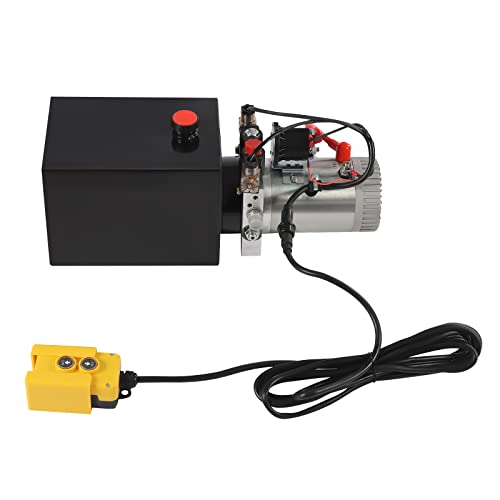

ItemName : 3KW Hydraulic Power Unit 12V 8 Quart Hydraulic Pump Single Acting 2850R/MIN Max Power Unit for Electric Forklift Trucks, Electric Forklift Trucks
ItemPackageDimensions_Height : 9.98 inches
ItemPackageDimensions_Length : 10 inches
ItemPackageDimensions_Width : 10 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-power-units
Manufacturer : Ahulin
Material : Steel
ModelName : Hydraulic Power Unit
ModelNumber : 5TNDYB8
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : J49DNDYB8
ProductDescription :

Description

This hydraulic pump is made of solid steel, which is very durable and not easy to crack or damage. It is equipped with a 3kw powerful motor, with a release pressure of up to 16MPa, making it easy to handle various hydraulic lifting operations. As a power unit, it will be the ideal choice for all kinds of remote hydraulic systems!







Details

Remote Control: It is equipped with a solid remote control with a 4.5m/14.76ft cable, which allows you to remotely operate the product. Press the button up and down, and it will stop when you release the button.



High-quality Tank: It has a metal fuel tank, which will not crack or leak even under harsh conditions, so you can use it with confidence. Its capacity is 20 quarts, avoiding frequent filling of hydraulic oil.



Application

It is suitable for electric forklift trucks, electric forklift trucks, tipper trucks, electric sanitation trucks cars, lifters, motorbike lifters, car tailboards, electric pallet trucks, lifting platforms, aerial work platforms, electric basketball hoists, boarding bridges, etc.



Specifications

Material: Steel

Color: Black, Silver

Type: Horizontal

Rated Speed: 2850R/MIN

Internal Thread Model: m14 * 1.5

Connector Model Configured: 18 * 1.5

Connector Model Additionally Configured in the Package: 9/16''(SAE6)

Power: 3KW

Voltage: DC12V

Tank Capacity: 7.57L/ 8Qt

Cord Length: 4.5m/14.76ft

Release Pressure: 16MPa

Recommended Hydraulic Oil: ISO VG22-46 (0 ℃ - 70 ℃): ISO VG15 (- 15 ℃ - 0 ℃)

Tolerance Range of Power Supply Voltage: ± 10%

Packing Size: 65*28*28cm/25.59*11.02*11.02in

Product Size: 17.78*17.78*50cm/7*7*19.7in

Gross Weight: 15kgkg/33.33lbs



Package Included

1* Hydraulic Electric Pump

1* Connector

1.* 4.5-meter Wired Control Handle

1* English User Manual



Notes

1. The hydraulic oil should be replaced upon working for 100 hours since the initial filling. Subsequently, the hydraulic oil should be replaced once per year/ about 1500 working hours.

2. The power unit could not filter foreign materials within the hydraulic cylinder, therefore, the interior of the hydraulic cylinder must be kept clean to prevent the ill-function of the control valve. And the pipelines should also keep clean.

3. The oil filling volume of the oil tank shall be 90% of the capacity, and the oil volume shall not be less than 85%. When starting the operating system for the first time, immediately check whether the oil in the oil tank is sufficient.

4. Please note that the cleanliness level of hydraulic oil is ISO 4006 (: 99) 18/15 or NAS1638 9~10, and the product oil must pass 10-25 μm The oil filter truck can be used as working oil after filtering.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

ProductSiteLaunchDate : 2024-07-31T09:39:49.978Z
RequiredProductComplianceCertificate : California Air Review Board (CARB)
Size : 15 Quart Single 220V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 40151500
WarrantyDescription : 3-year limited warranty
