Specification
Brand : ZUANYAN
BulletPoint1 : This hydraulic power unit full high quality construction with high strength and hardness. Good wear resistance, durable in use.
BulletPoint2 : The electric hydraulic pump is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions.
BulletPoint3 : If the pump is equipped with other hydraulic tools, it can work on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly. Reduce manual work and maximize work efficiency.
BulletPoint4 : The high-quality hydraulic pump ensures a fast start every time and a long using period, Reduce labor intensity, improve hydraulic trailer pump work efficiency.
BulletPoint5 : Working Mode：Pedal Solenoid Valve Control
IncludedComponents : 1 X Electric Driven Hydraulic Pump

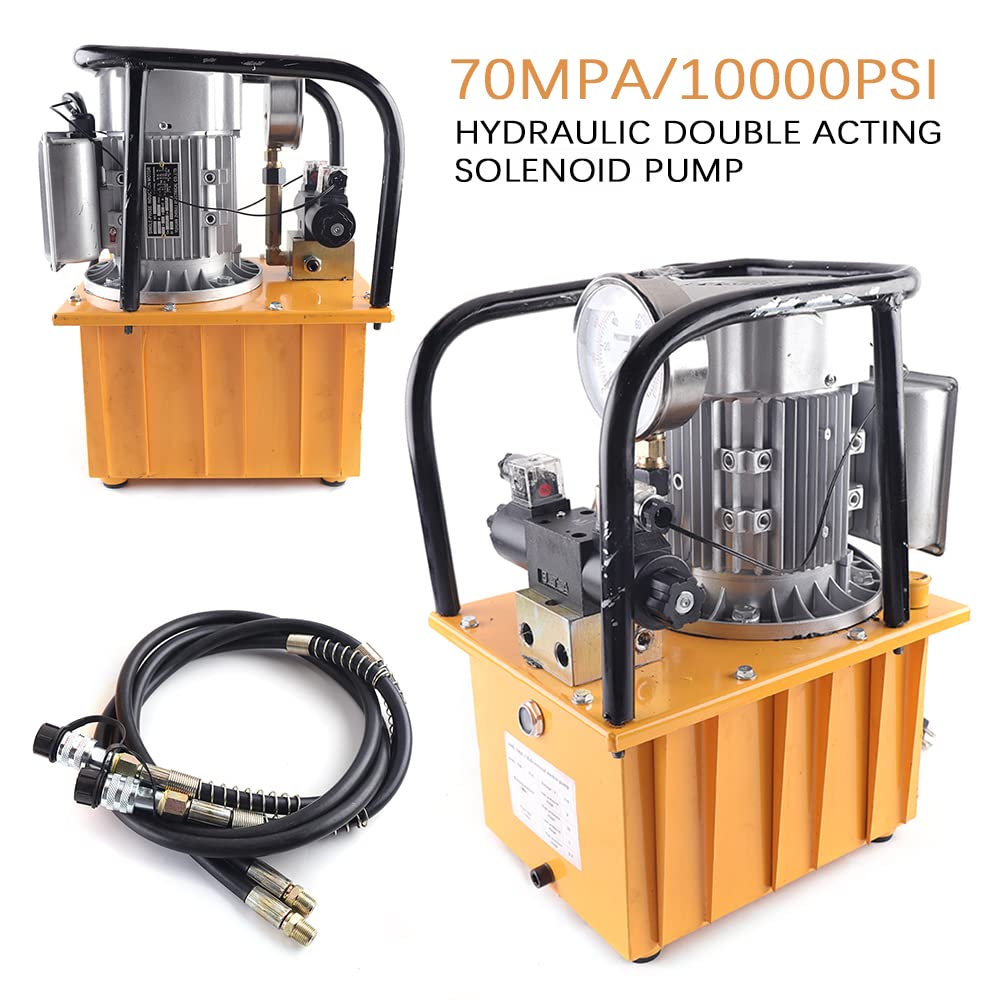

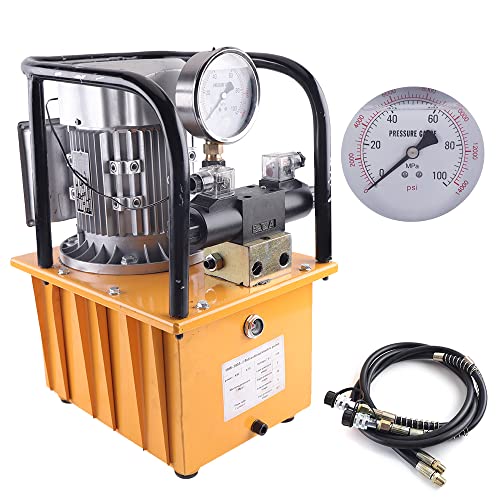

ItemName : 750W Electric Driven Hydraulic Pump Power Pack Solenoid Valve Double Acting 110V，for Punching/Bending/Jack Machine 7L Capacity
ItemTypeKeyword : hydraulic-power-units
Manufacturer : ZUANYAN
ModelName : 1 X Electric Driven Hydraulic Pump
ModelNumber : 45456
PowerSourceType : hand_powered
ProductDescription :

Specifications:

Input Voltage: AC 110V 60Hz

Flow Rate: 0.6L/Min(＞7Mpa) - 5L/Min(＜7Mpa)

Working Pressure: 290Psi - 10152Psi(2Mpa - 70Mpa)

Oil Capacity: 7L

Motor Power: 750W

Motor Speed: 1400r/Min

G. W: 28.3Kg

N.W.:24.7kg

Product Size:25*32.5*50cm/9.8*12.8*19.7in

Features:

Double-Acting, Solenoid Valve

Manual Switch And Pedal Switch

Strong Storage Capacity

Power Saving

High Speed High Quality,Stable Working

Easy To Operate

Safe To Use

Operation Instruction:

1.  Open The Filler Before Use, The Electric Pump And Power Connections Before Oiling, Then Press Down The Black Button Which Next To The Motor To Open, Press The Manual Operation Switch (Up), After a Few Air Pressure, Press The Manual Operation Switch (Down), Turn Off The Motor, Connected To Tubing.  (The Pressure Should Not Exceed 63Mpa When Air Pressure, In Order To Avoid Damage)

2.  Open The Motor After The Pump Connect With The Equipment, And Placed The Operation Valve In Pressurized Position After The Motor Rotates 1-2 Minutes, This Moment The Hydraulic Oil Come Into The Cylinder To Perform The Work, And The Output Of The Hydraulic Oil Will Increases With The Load On Their Own Booster Until 63Mpa.

3.  The Oil Pump Regular Working Temperature Between 10℃~50℃,When Find The Oil Temperature≥70 ℃ Should Stop Using After Continuous Working Under High Pressure, Let It Self-Cooling Before Use.

4.  The Pressure Of The Relief Valve And Safety Valve Have Been Set Before The Pump Leave The Factory, The User Can Not Arbitrarily Increase The Pressure,Could Only Reduce It According To The Actual Working Pressure, That Can Improve The Life Of The Pump Station.

5.  The Motor Must Have Reliable Grounding.

Package Included:

1 X Electric Driven Hydraulic Pump

2 X Oil Hose(1.8M)

2 X Quick Connector

ProductSiteLaunchDate : 2025-01-21T07:14:42.483Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40141600
